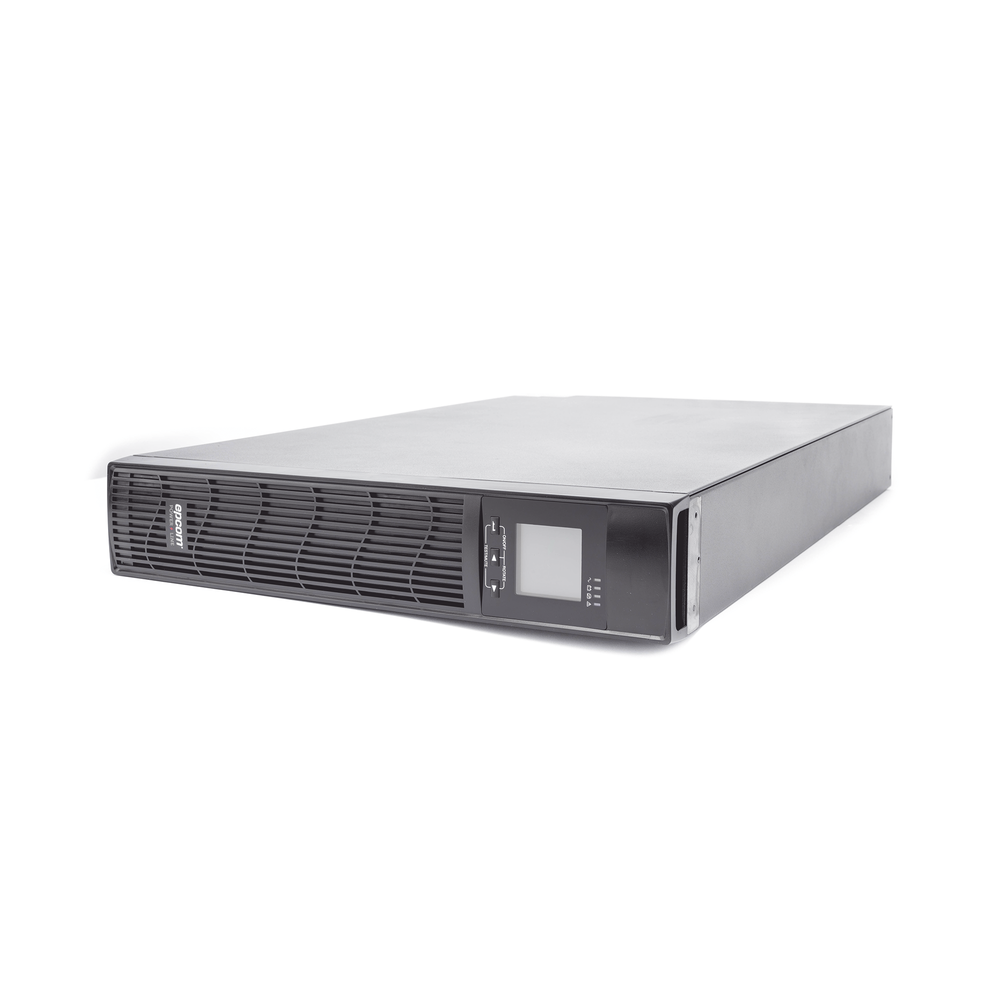

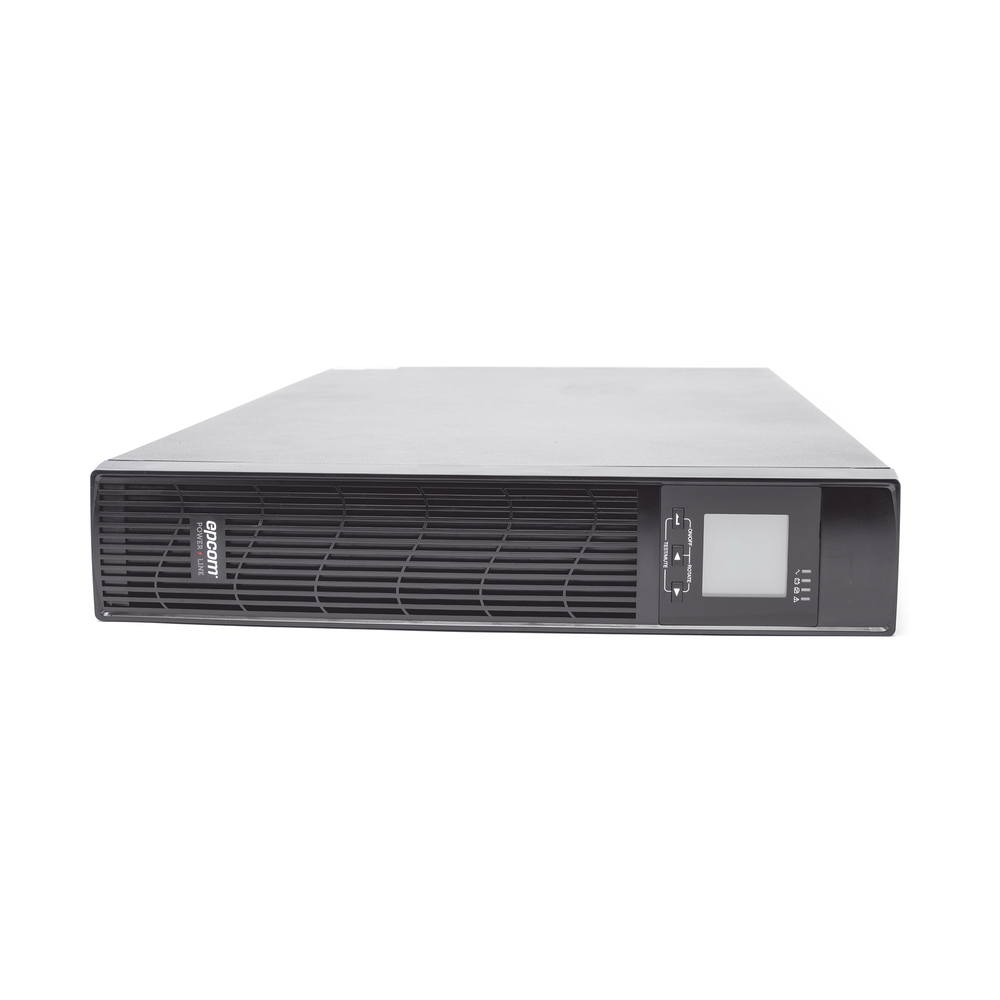

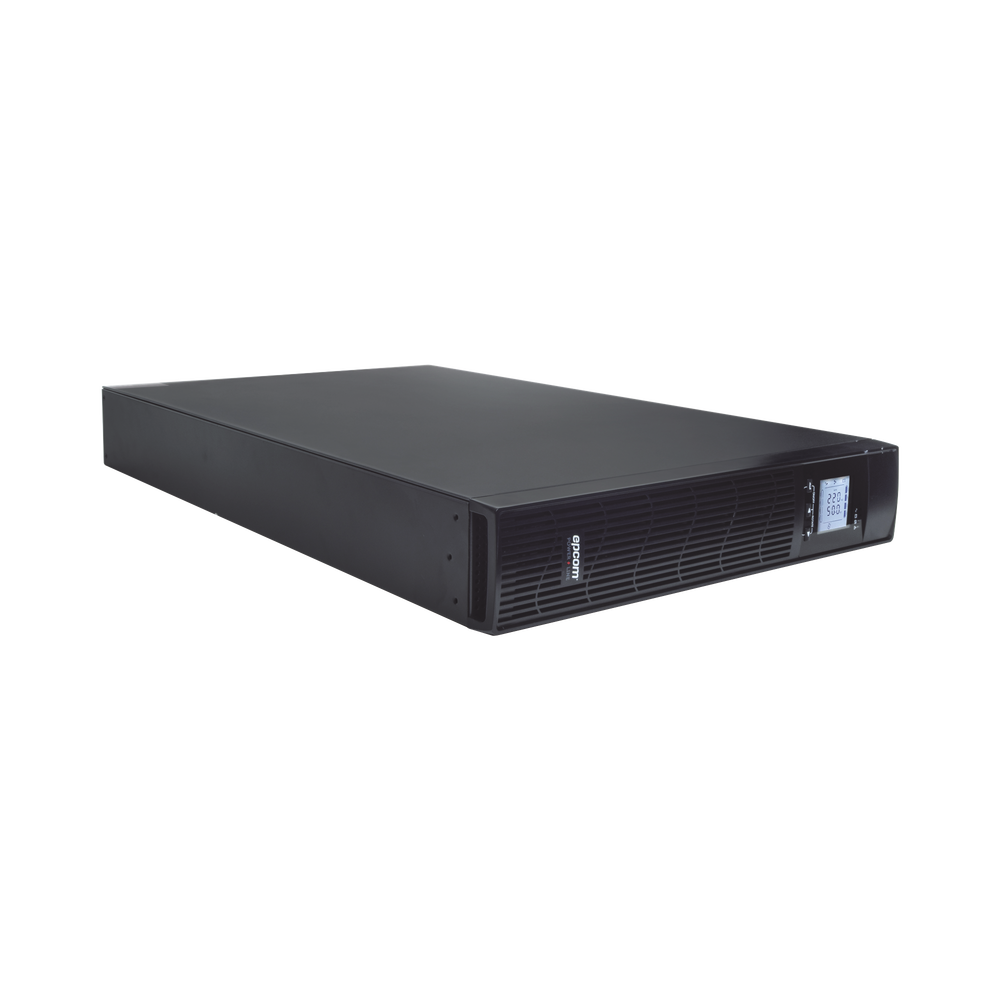

2000VA/1800W UPS / On-Line Double-Conversion Topology / 120 Vac Input and Output / NEMA 5-20P Input Plug / Configurable LCD Display / Rack/Tower Format

The On-Line (double-conversion) UPS is the high-density version of the epcom Power Line, designed for 100/110/115/120/127 VAC voltage applications. It is equipped with power factor correction (PFC) on the input and a 0.9 output power factor, offering high levels of reliability and protection for IT systems, telecommunications equipment, medical equipment, and mission-critical systems. It is convertible to Rack or Tower configurations and only takes up 2U of rack space.

General Characteristics:

• Capacity: 2000 VA / 1800 W.
• Topology: On-Line

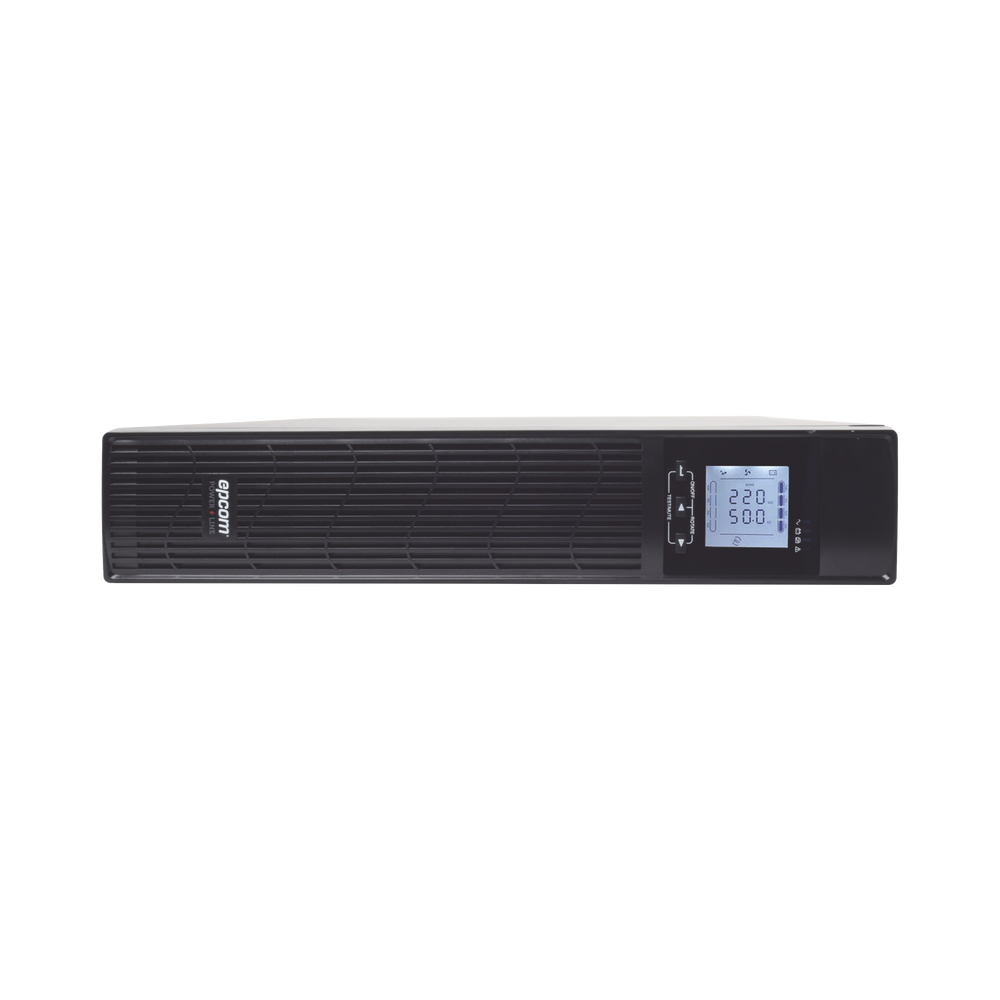

• With LCD screen.
• Wave type: Pure sine wave.
• Battery: 4 x 12V/9Ah.
• Dimensions (mm): 88 x 440 x 720 (Height x Width x Depth)
• Output power factor: 0.9
• Voltage Regulator: 95 - 135 VAC.
• Voltage Output: 100V/110V/115V/120V/127V AC (Configurable via LCD).
• Option for battery bank.

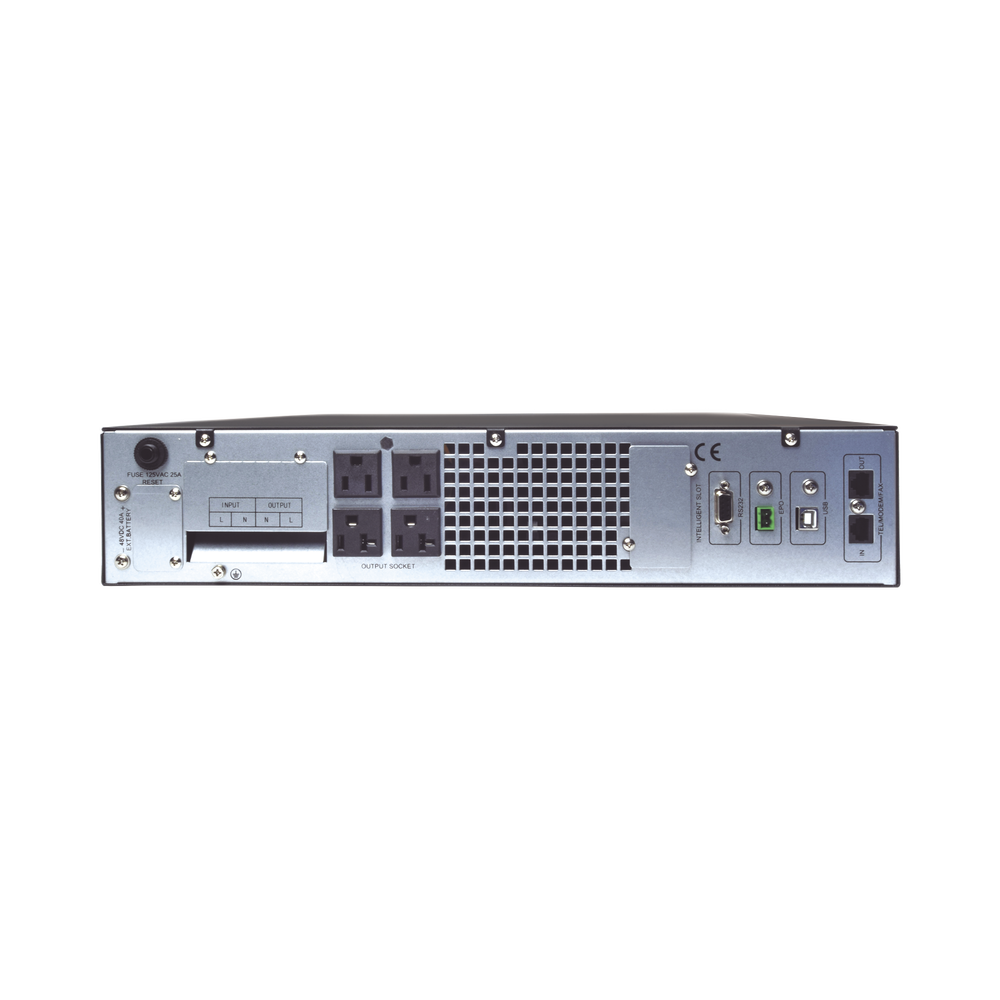

NOTE: On the power terminals INPUT corresponds to the input and OUTPUT to the output.

*1 year warranty.

DOWNLOAD THE BACKUP TIME CALCULATOR

HERE!

The Most Reliable UPS Line

Get to know the Epcom Power Line® UPS line

• The Epcom Power Line® UPS line was designed to deliver high performance and excellent quality. They are used to protect and power equipment, and also supply pure voltage with automatic voltage regulators (AVR) in both boost and buck modes. They are simple, low-cost, and easy and quick to install.

UPS Line Interactive

Epcom Power Line® interactive UPSs are specifically designed to meet the needs of networking hardware, computers, and more. These devices correct minor power fluctuations without having to switch to battery mode, extending battery life.

UPS On-Line

Reliable Energy for Your Equipment

On-Line UPS (double conversion) technology is the high-density version of Epcom Power Line®, designed for 100/110/115/120/127 VAC voltage applications.

It is equipped with power factor correction (PFC) on the input and a 0.9 power factor on the output, offering high levels of reliability and protection for IT systems, telecommunications equipment, medical equipment, and mission-critical systems. It is convertible to rack or tower mounting and only requires 2U of rack space.

Highlights

1. • On-Line UPSs offer high-efficiency dual-conversion technology.
2. • Pure sine wave.
3. • Eco mode operation for energy savings.
4. • Dynamic voltage range.
5. • Configurable output voltage via LCD.
6. • Battery module to extend backup time.
7. • Rack/Tower installation.
8. • On-line topology UPSs can be configured horizontally or vertically.

---

Dynamic Voltage Range (AVR)

The Dynamic Voltage Range (AVR) on Epcom Power Line® UPSs helps stabilize the incoming AC signal, handles overvoltages and undervoltages, maintaining output power at a nominal 120V level, reducing system failures and significantly increasing battery life.

---

Configurable output voltages

Some Epcom Power Line® models can be configured with selectable output voltage: 100 V / 110 V / 115 V / 120 V / 127 V AC.

Rack/Tower Format, Pure Sine Wave, RJ45 Protection + USB Port for Communication, With Power Correction Factor
