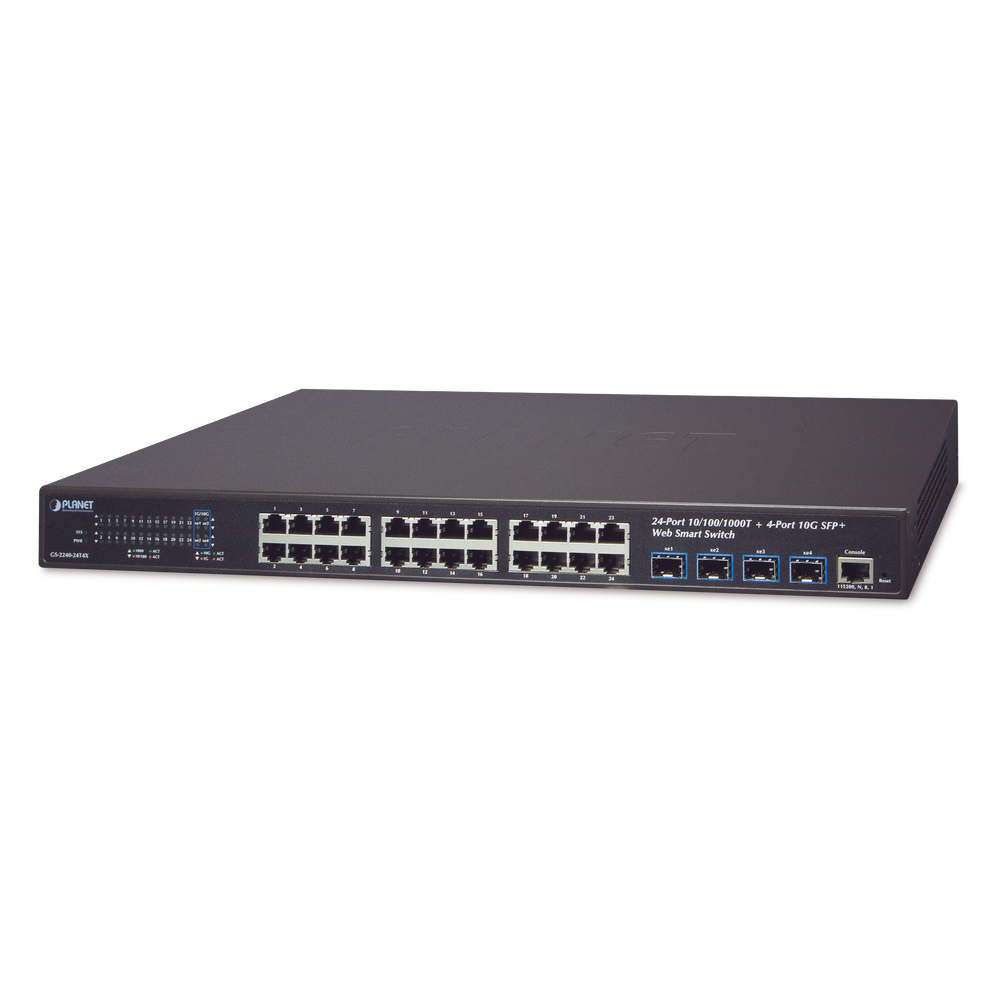

Managed Switch L2 24 ports 10/100/1000T + 4 ports 10G SFP+ Web Smart

Managed Switch L2 24 ports 10/100/1000T + 4 ports 10G SFP+ Web Smart

Physical ports

• 24 10/100/1000BASE-T Gigabit RJ45 copper ports
• 4 10GBASE-SR/LR SFP+ slots , compatible with 1000BASE-SX/LX/BX SFP
• RJ45 to DB9 RS232 console interface for basic management and configuration

Dimensions: 440 x 230 x 44mm, 1U rack

WEB Configuration

Level 2 functions

- IEEE 802.1Q Tagged VLAN

- IP subnet-based VLAN

- MAC-based VLAN

- Protocol-based VLAN

- Private VLAN

- STP (Spanning Tree Protocol)

- RSTP (Rapid Spanning Tree Protocol)

- MSTP (Multiple Spanning Tree Protocol)

- IEEE 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

• Prevents packet loss with backpressure (half-duplex) and IEEE 802.3x frame pause flow control (full-duplex)
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports link aggregation
• Provides port mirroring (many-to-1)
• Supports Ingress/Egress Rate limit by port bandwidth control

*2 years warranty.
