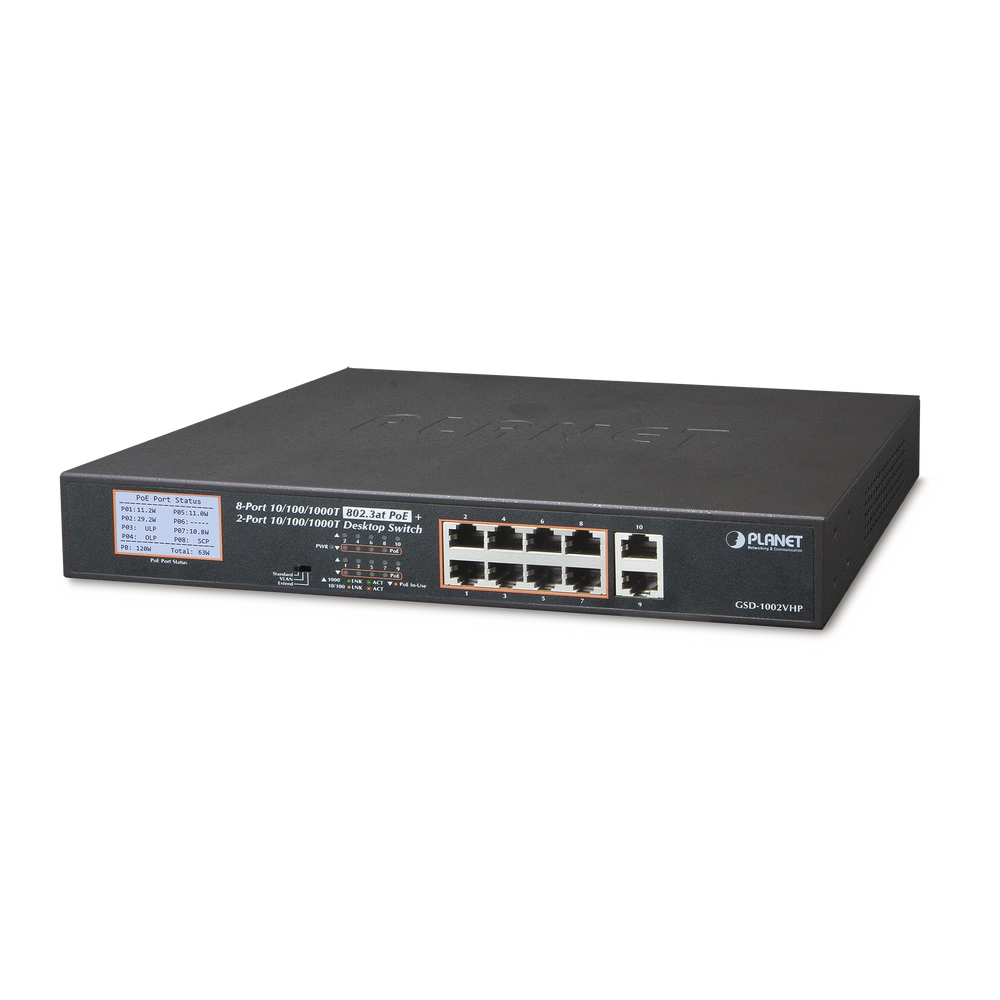

Non-Manageable PoE+ Switch, distance 250 meters, 8 Gigabit PoE ports + 2 gigabit

Non-Manageable PoE+ Switch, distance 250 meters, 8 Gigabit PoE ports + 2 gigabit

Physical Ports

• 10-port 10 / 100 / 1000BASE-T Gigabit Ethernet RJ45 copper
• 8 of the ports are PoE

Power over Ethernet (PoE)

• Compliant with IEEE 802.3af/at Power over Ethernet end-span PSE
• Powers up to 8 ports with IEEE 802.3af/802.3at
• Supports up to 30.8 watts per PoE port
• Each port supports up to 52V DC
• Maximum PoE load 120-watt
• Auto detection of PoE devices (PD)
• Standard Mode up to 100m, Extended Mode up to 250m

Switching

• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Hardware DIP switch for selecting “ Standard ”, “ VLAN ” and “ Extend ” modes:
  • “ Extend ”: Transmits 30-watt PoE up to a distance of 250m at a speed of 10Mbps
  • VLAN: Broadcast isolation of PoE ports.

Physical Characteristics

• Rack mountable, 12-inch desktop size, 1U height
• LED power indicators
• LCD monitor for system status and PoE usage status display
• 1 silent fan to provide stable and efficient power performance
• Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

*1 year warranty.
