PLANET

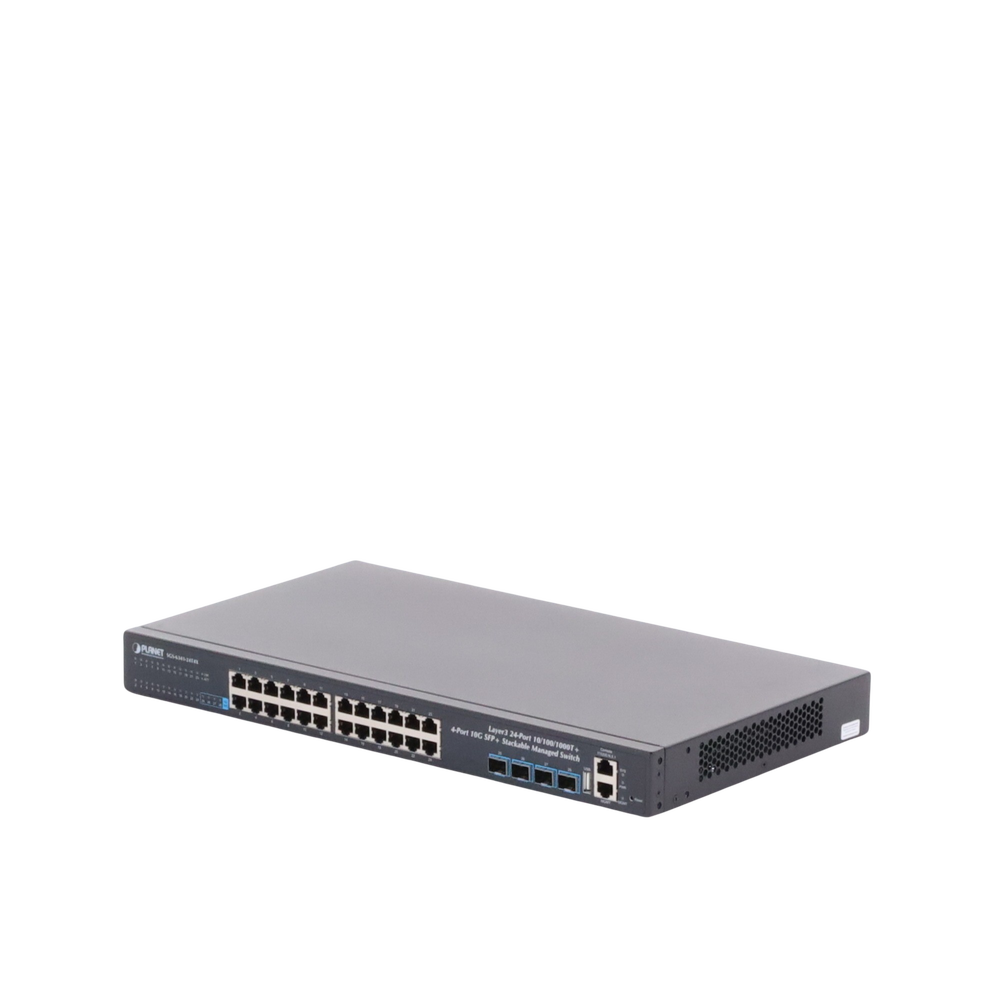

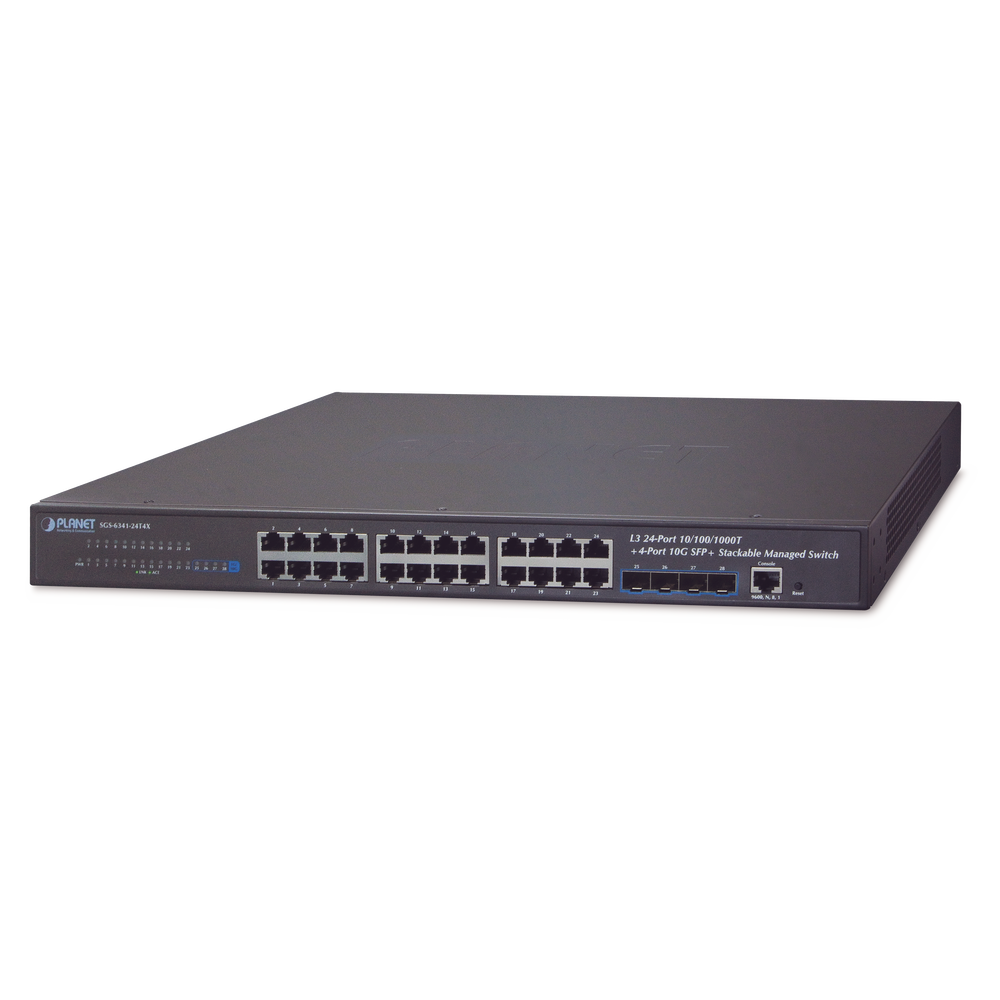

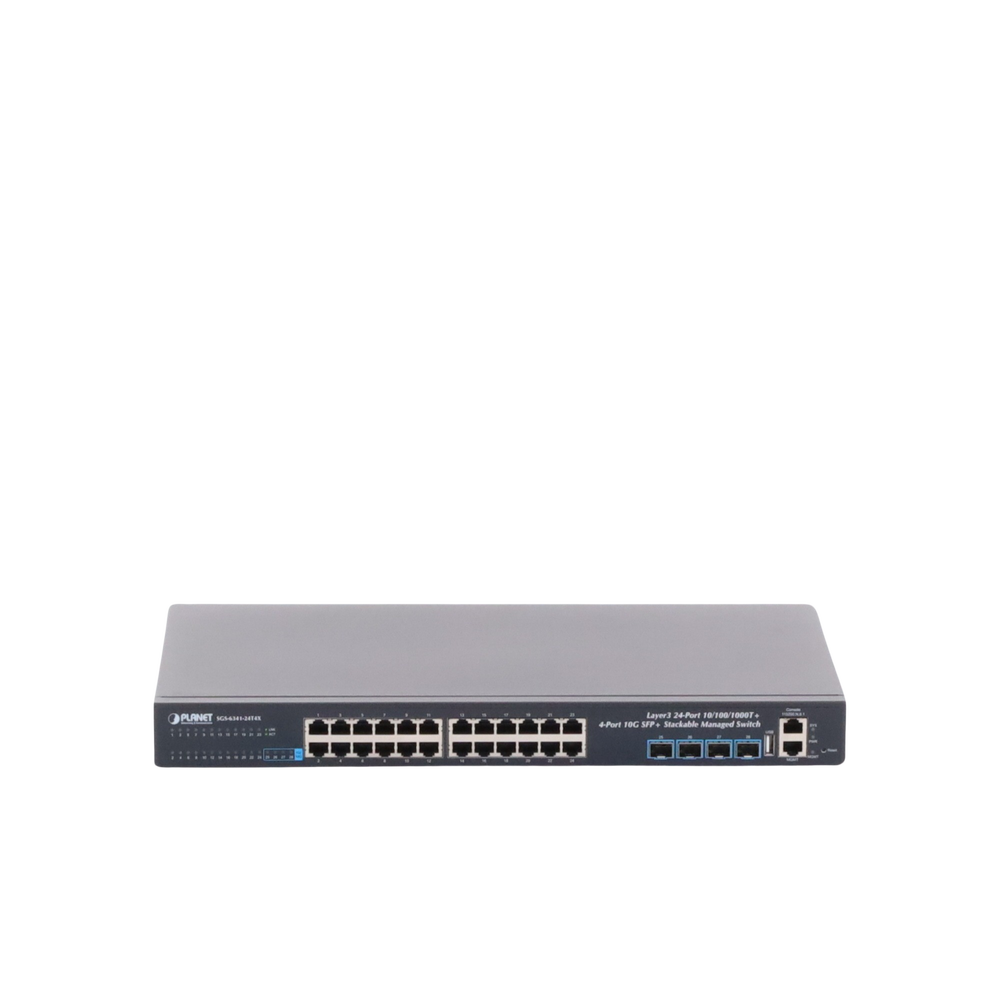

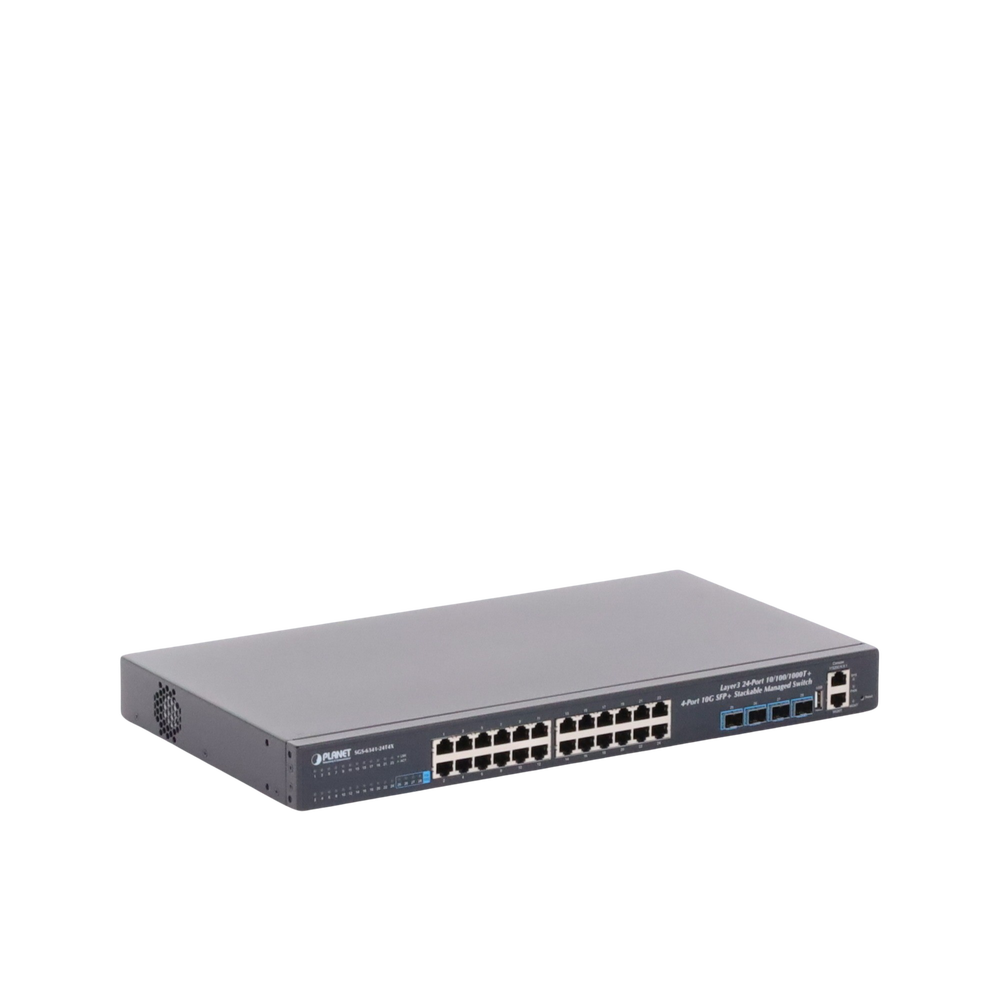

Layer 3 Managed Switch, 24-Ports 10/100/1000T + 4-Ports 10G SFP+, Stackable
Layer 3 Managed Switch, 24-Ports 10/100/1000T + 4-Ports 10G SFP+, Stackable
Couldn't load pickup availability
Layer 3 Managed Switch, 24-Ports 10/100/1000T + 4-Ports 10G SFP+, Stackable
High Availability Mesh Networking Solution for Big Data Systems
By enhancing Ethernet fiber optic technology with highly flexible, highly extensible and easy-to-install features, the SGS-6341-24T4X delivers up to 128Gbps data exchange speed over optical fiber interface and the transmission distance can be extended up to 10KM. The SGS-6341-24T4X features strong, fast self-healing capability to prevent interruptions and external attacks. It incorporates IEEE802.1s MSTP ( Multiple Spanning Tree Protocol, Spanning Tree per VLAN ) into customer automation network to improve system reliability and uptime. The SGS-6341-24T4X is ideal solution for data centers, telecom service providers and for building redundant connection and establishing high bandwidth for big data server farm. .
| Hardware specifications | |
| CPU | 400 MHz ARM A9 |
| RAM memory | 512 MB |
| FLASH memory | 16 MB |
| Copper ports | 24 10/100 auto-MDI/MDI-X/1000BASE-T RJ45 ports |
| SFP+ ports | 4 10GBASE-SR/LR SFP+ interfaces (port-25 to port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console port | 1 x RJ45 to RS232 serial port (9600, 8, N, 1) |
| Performance | |
| Bandwitch | 128 Gbps / non-blocking |
| Throughput | 95.24Mpps |
| Dimensions (W x D x H) | 440 x 330 x 44.5mm, 1U height |
| Weight | 3628g |
| Energy consumption | 19.9 watts / 67.91 BTU (maximum) |
| energy requirements | AC 100~240V, 50/60Hz |
*3 years warranty.
Out of stock
MODELO: SGS-6341-24T4X
