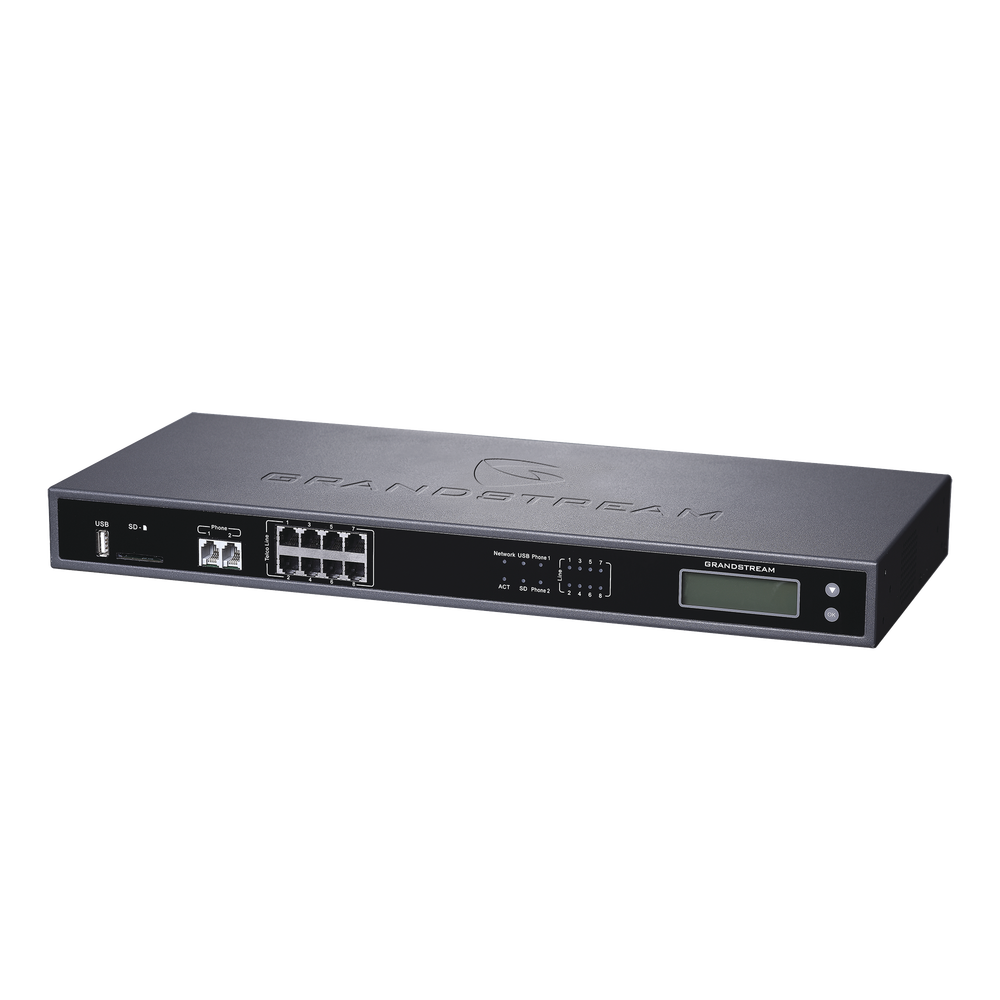

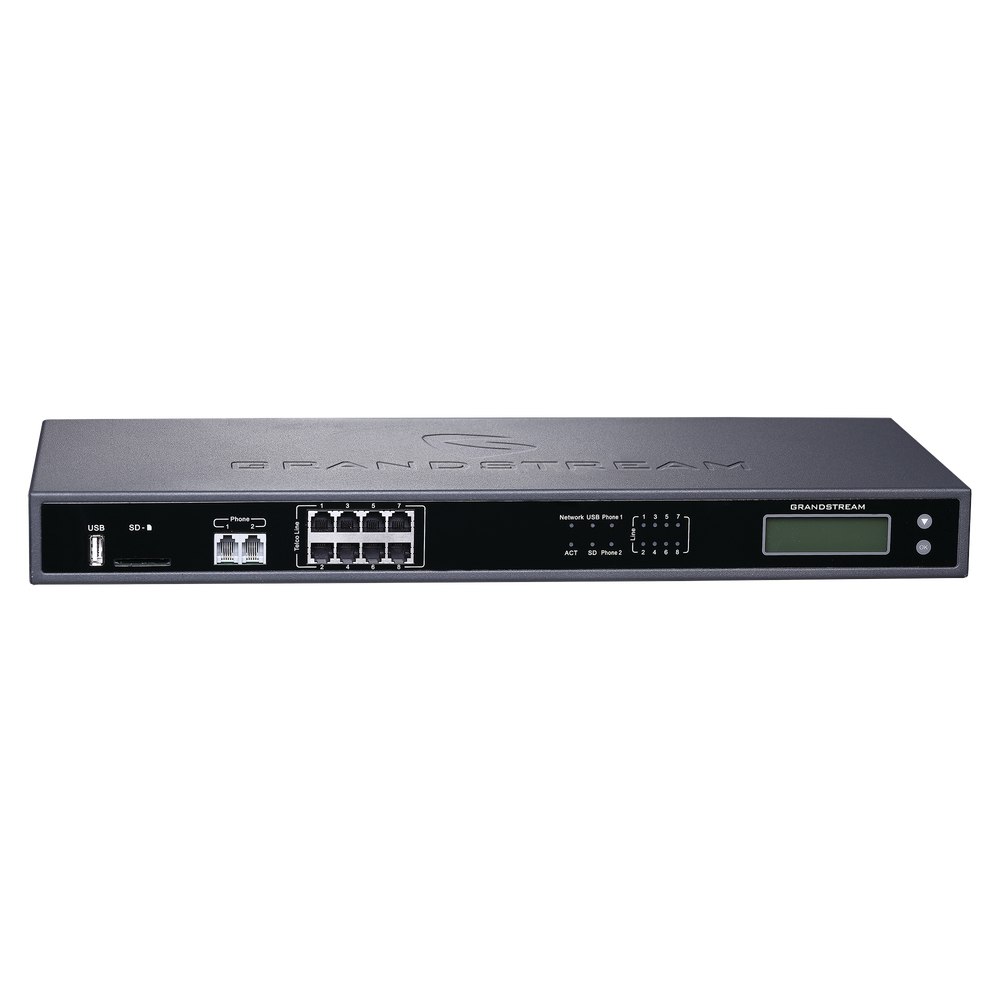

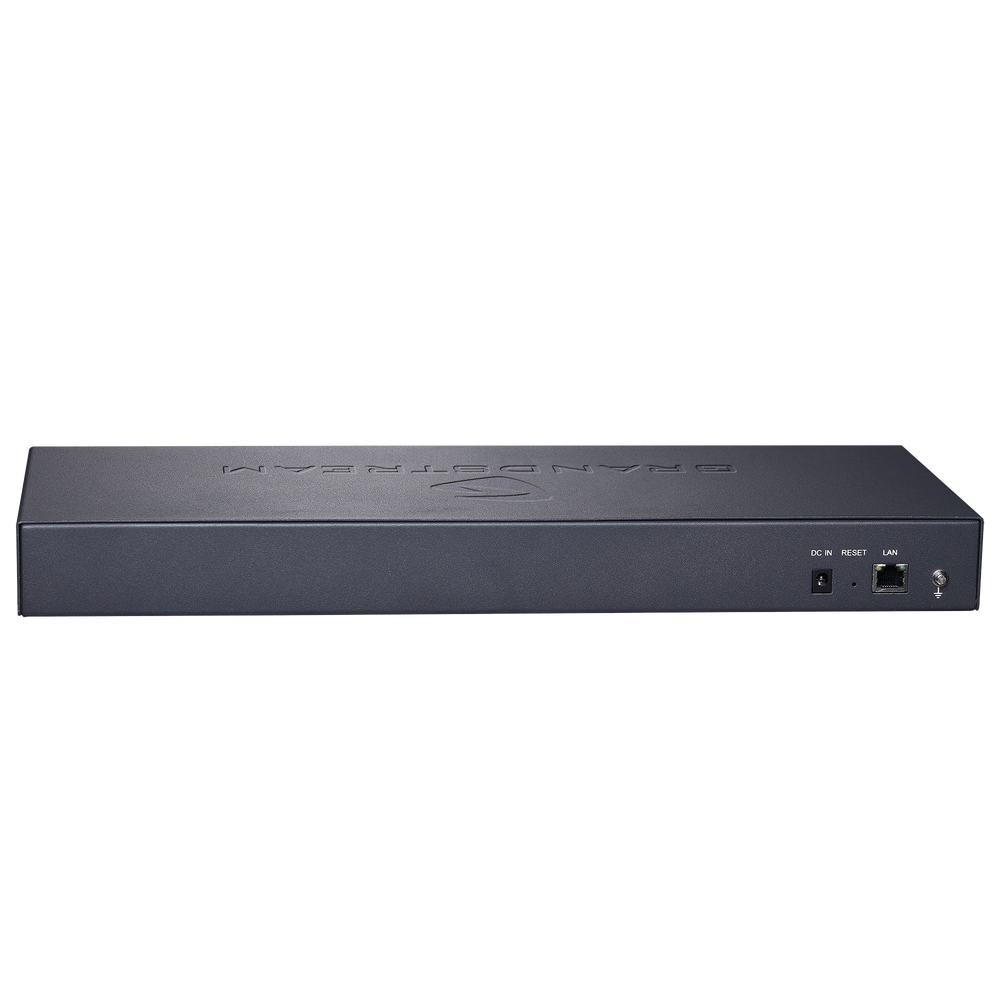

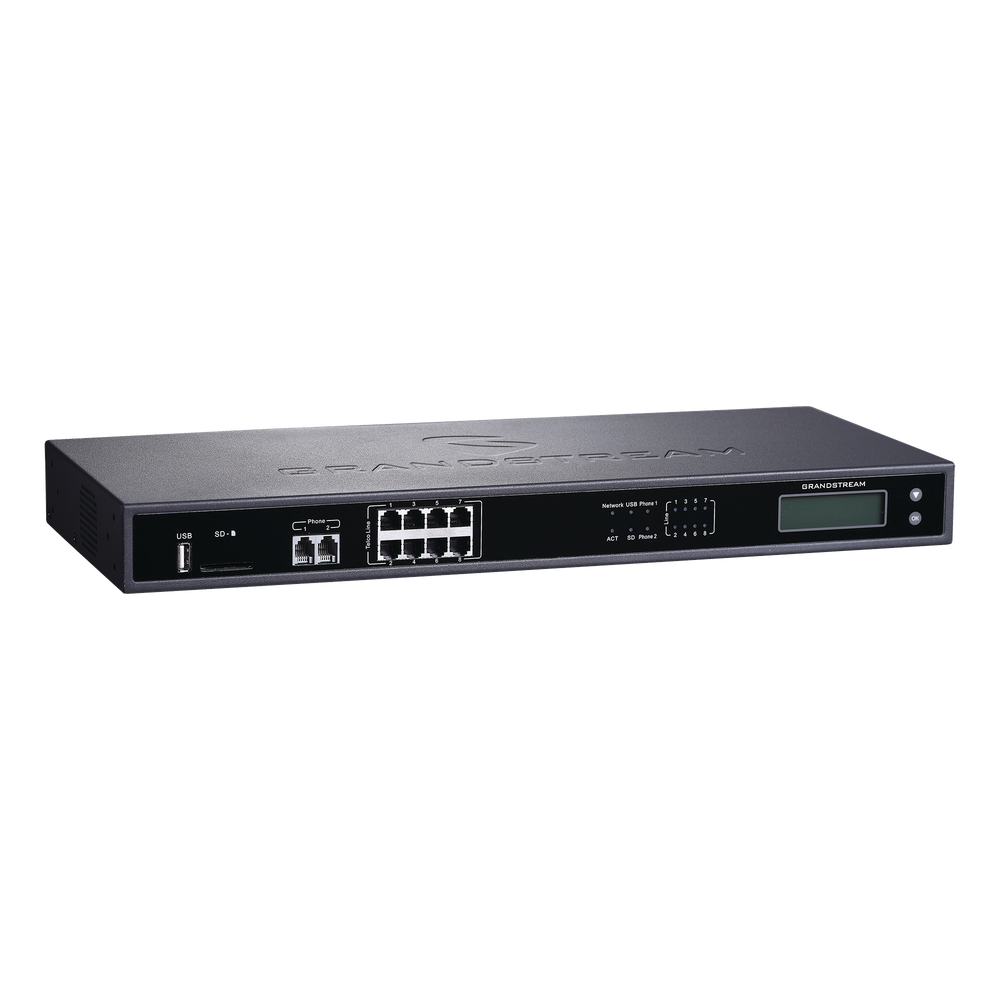

IP-PBX GS C/8 FXO, 100 simultaneous calls and up to 800 extensions (SIP registrations)

IP-PBX GS C/8 FXO, 100 simultaneous calls and up to 800 extensions (SIP registrations)

Designed to provide a centralized solution for business communications needs, the UCM6200 series IP PBX combines enterprise voice, video, data, and mobility features into a single, easy-to-manage solution. This IP PBX series enables businesses to unify multiple communications technologies—such as voice, video calling, video conferencing, video surveillance, data tools, mobility options, and feature access management—into a common network that can be managed and/or accessed remotely. The secure and reliable UCM6200 series offers enterprise-class features without licensing fees, per-feature costs, or recurring charges.

• 2 FXS ports for Analog Telephone (both with backup capability in case of power interruption).
• 8 FXO Ports for PSTN Line.
• 2 RJ45 Gigabit ports with integrated PoE Plus (IEEE 802.3at-2009).
• 800 SIP registrations
• NAT Router (supports router mode and switch mode).
• Peripheral ports USB, SD.
• LED indicators Power/Ready, Network, PSTN Line, USB, SD.
• 128x32 graphic LCD display with DOWN (selector) and OK buttons.
• Reset switch.
• Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38.
• H.264, H.263, H263+ Video Codecs.
• Layer 3 QoS, Layer 2 QoS
• DTMF In Audio, RFC2833 and SIP INFO
• Provisioning and Plug-and-Play Protocols TFTP/HTTP/HTTPS, auto-discovery and auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS) feature, event list between local and remote trunk.
• Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LADP.
• Call Progress Tone, Polarity Reversal, Hook Detection, Power Disconnect, Busy Tone.
• SRTP, TLS, HTTPS, SSH Media Encryption.
• Power Supply Output: 12VDC, 1.5A; Input: 100~240VAC, 50~60Hz
• Dimensions: 440mm long x 185mm wide x 44mm high
• Unit weight 2.23kg, Package weight 3.09kg
• Operating Environment: 32~104°F / 0~40°C, 10~90% (non-condensing);
• Storage: 14 ~ 140°F/ -10 ~ 60°C
• Rack and desktop mount (UCM6208)
• Multi-Language Support: English / Simplified Chinese / Traditional Chinese / Spanish / French / Portuguese / German / Russian / Italian / Polish / Czech for web-based user interface; Customizable Interactive Voice Response/Voice Prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic; Customizable language pack to support any other language.
• Bellcore/Telcordia Caller ID, ETSI-FSK, ETSI-DTMF, SIN 227 – BT
• Polarity Inversion/Wink with the option to enable/disable when making and ending calls
• Call Center Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/tasks, in-queue announcement
• Customizable Auto-Attendant Up to 5 layers of IVR (Interactive Voice Response)
• Registered SIP Devices: 800 registered SIP devices/users
• Simultaneous SIP calls: Up to 100
• Up to 6 password-protected conference bridges, allowing up to 32 simultaneous PSTN or IP participants
• Call parking, call forwarding, call transfer, DND, group
• extensions/capture, pager/intercom system, etc.
• 2 years warranty.

Note: For remote extensions, this depends on your internet provider and network configurations, or you may have a VPN infrastructure. Please confirm this with the engineering department.

Supports up to 800 extensions, Supports 8 analog lines
