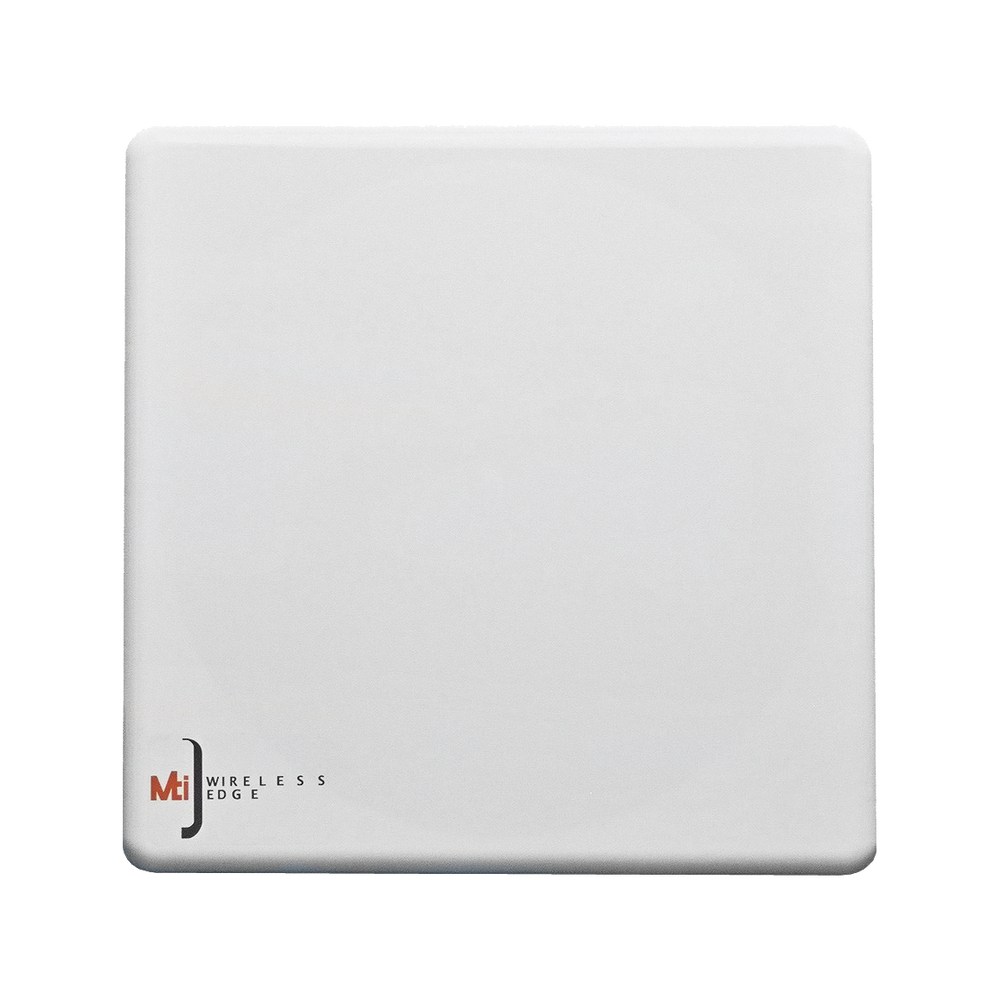

Panel antenna, 60º opening angle, 4.9-5.9 GHz, 4x4 MIMO, 16 dBi gain, No side lobes, 4 N-female connectors, Mounting included.

Panel antenna, 60º opening angle, 4.9-5.9 GHz, 4x4 MIMO, 16 dBi gain, No side lobes, 4 N-female connectors, Mounting included.

- Frequency range : 4.9 - 5.9 MHz.
- Double linear polarization: ± 45°.
- Antenna gain: 16 dBi.
- Azimuth beamwidth in 3 dB : 65° H.
- Beamwidth in elevation at 3 dB : 7.0° V.
- VSWR: 1.5:1 typical, 2:1 max.
- F/B Ratio: < 40 dB.
- Cross polarization : < 15 dB.
- 20 dB isolation between ports .
- Impedance: 50 Ω.
- Power input: up to 6W per port.
- Connectors: x4 N-Female.
- Dimensions: 371 mm length x 371 mm width x 40 mm depth.
- Weight: 4.4 lb (2 kg).

Electrical Characteristics

-Temperature range: -55 to 70 °C.
-Wind speed: 160 km/h / 100 mph.
-Polycarbonate plastic.

*1 year warranty

Compatible with Ubiquiti, Cambium and Mimosa radios, Sidelobe-free, High-end F/B
