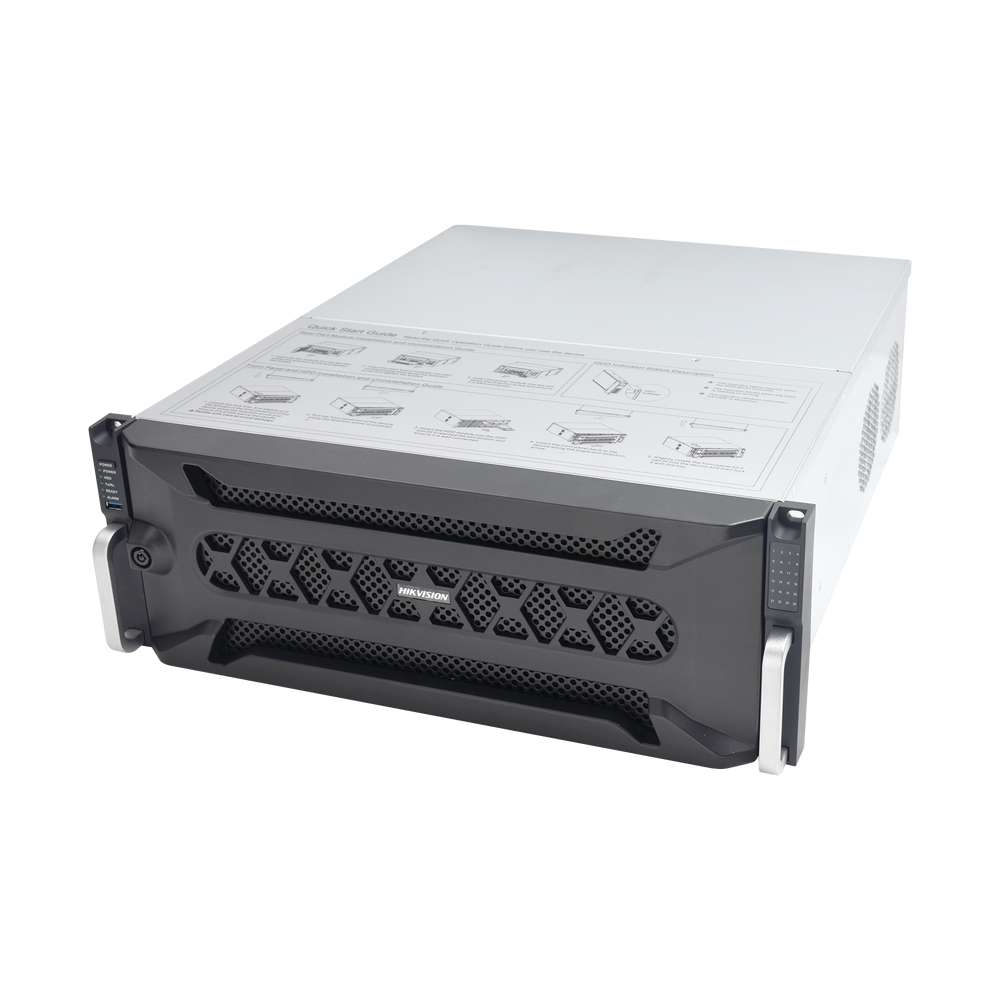

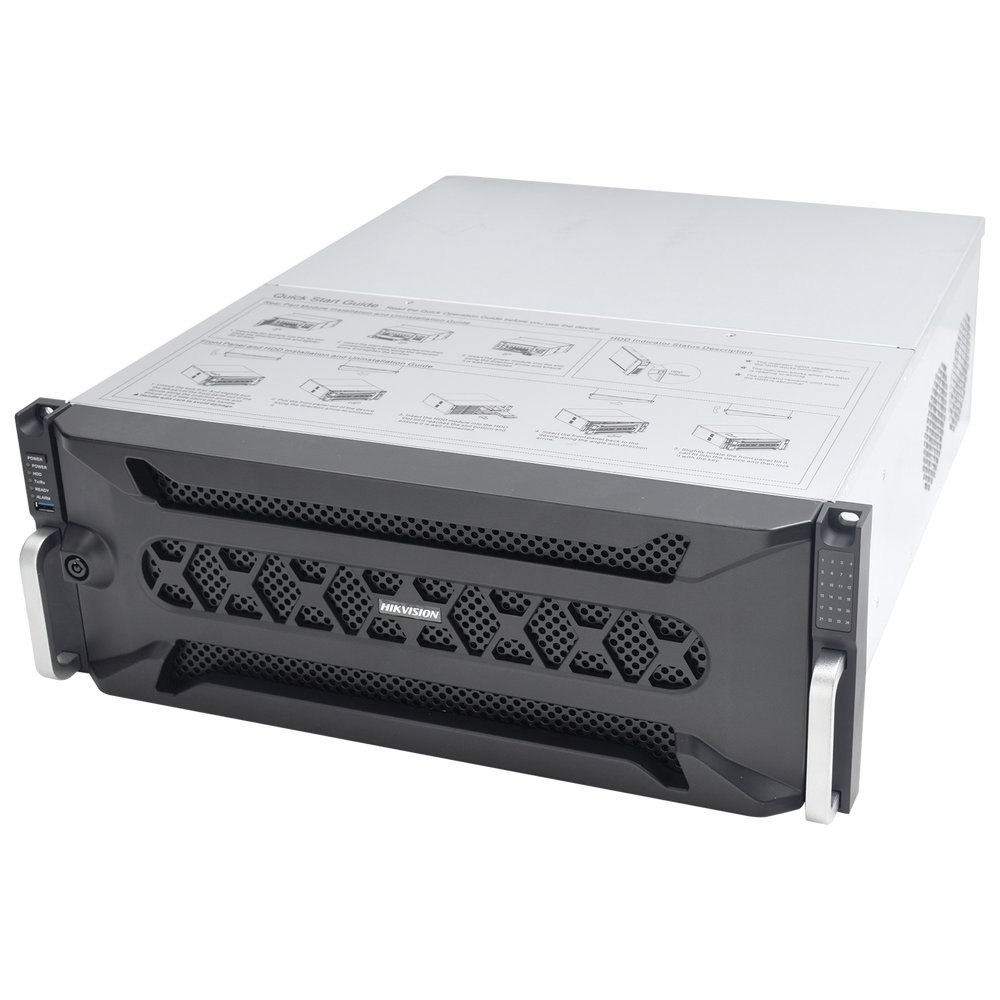

12 Megapixel (4K) NVR / 128 IP Channels / 24 Hard Drive Bays / 4 Network Ports / Supports RAID with Hot Swap / High Performance NVR

• Compression: H.265, H.264+, H.264, MJPEG.
• Supports USB mouse to operate the NVR (Included).
• Supports PTZ.
• Supports redundant recording.
• Supports local or remote calendar search.
• Supports Hot Swap with RAID: 0, 1, 5, 6, 10. (Minimum 4TB hard drive capacity for RAID)
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports Hot Spare so you never lose your recording if your NVR fails (another NVR that also supports the feature is required).
• Supports remote access via phone: Android, iPhone, iPad (app IVMS-4500).
• Support for IE, Safari and Chrome browsers (ietab).
• IVMS-4200 Multi-Site Client Software (Free).

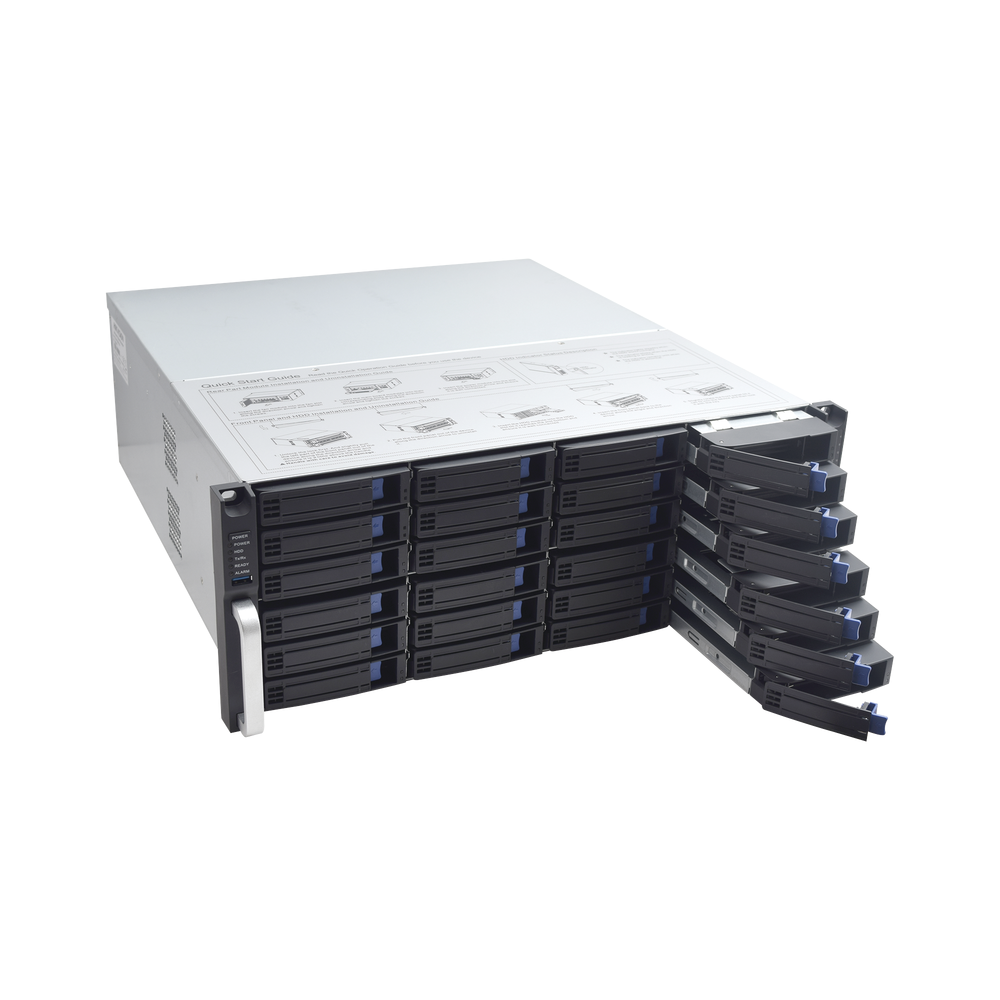

• It has a 24-bay internal DAS system with up to 10 TB each (240 TB total).
• Supports ONVIF (Version 2.5).
• Supports multiple brands such as: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO.
• Processing capacity and network functions:
• Input throughput: 576 Mbps (576 Mbps in RAID mode)
• Output throughput: 512 Mbps (512 Mbps in RAID mode)

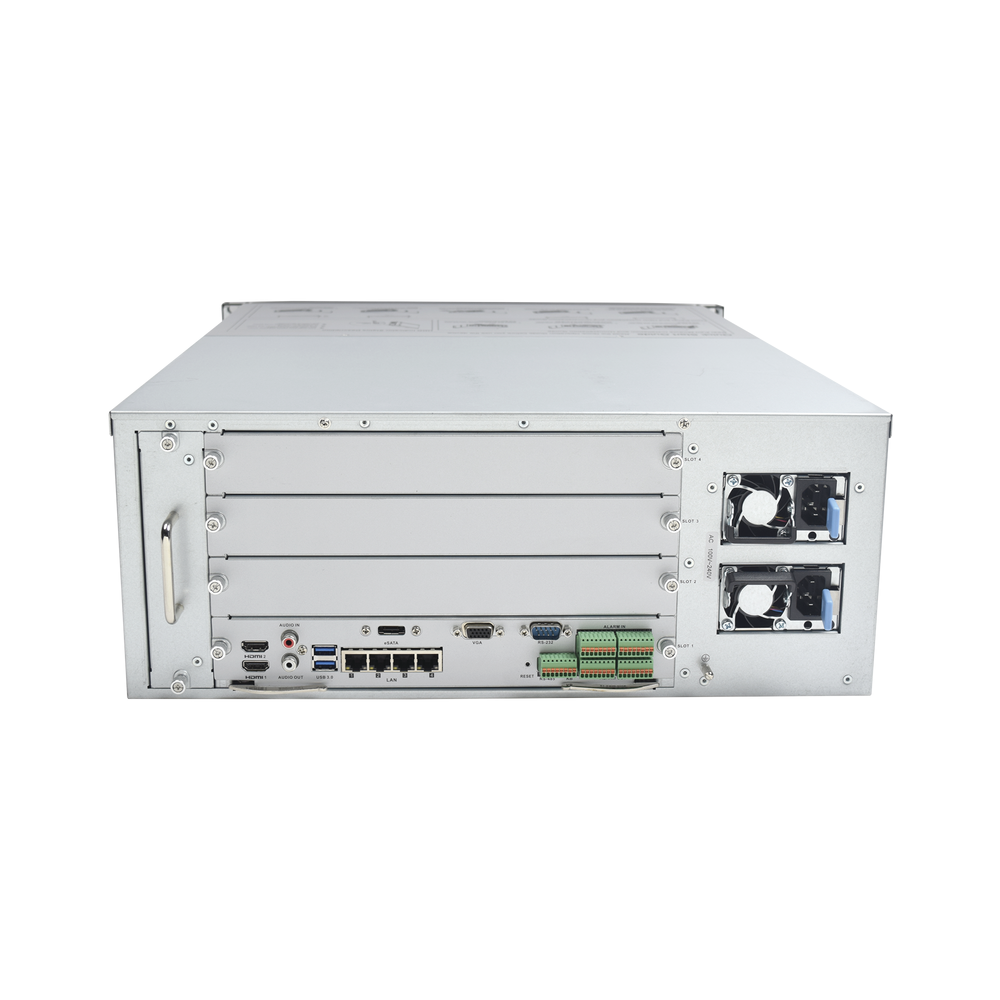

• Supports 4 10/100/1000 Mbps network cards.
• Supports Fail lover (fault tolerance), Multi address and Load balancing.
• Protocols: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE.
• Supports DDNS: DynDNS, No-IP.

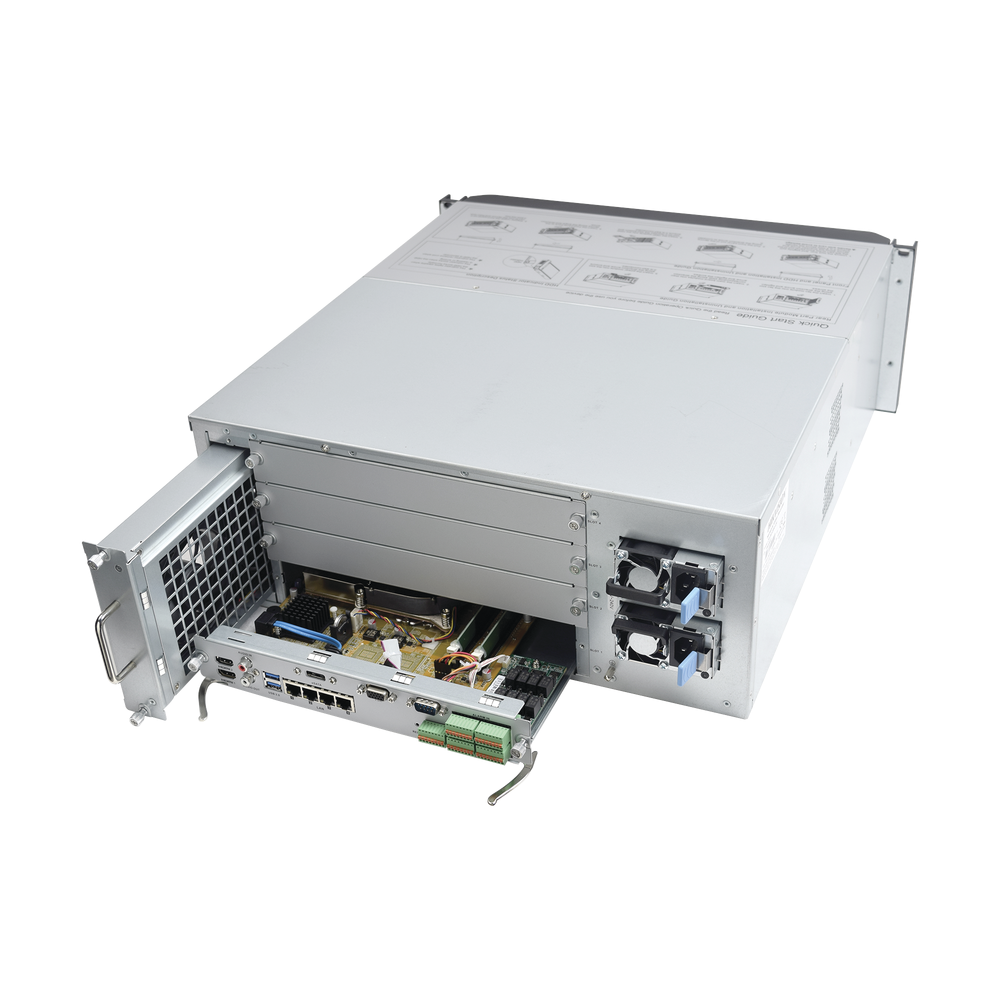

• Supports redundant power supplies and cooling fan (included).
• Dimensions: 447 × 528 × 172 mm (4U rack).
• Consumption: 140 W without hard drives.
• Power supply: 100 to 240 Vac, 550W.
• Operating temperature: 0 to 50 °C.
• Weight: 23 Kg without hard drives.
• Warranty: 5 years.

Recording resolution per channel (recommended with H.265):

• 1 Megapixel: 128 channels @ 30 IPS.
• 2 Megapixel: 128 channels @ 30 IPS.
• 5 Megapixel: 128 channels @ 15 IPS.
• 8 Megapixel (4K): 128 channels @ 10IPS.

Note: The number of recording channels may vary depending on the camera resolution, IPS and bit rate. For more information, please contact the SYSCOM Engineering department.

• HDMI 1 and HDMI 2 (independent outputs): 4K / 1080p / 720p.
• VGA: 1080p / 720p.
• Alarm inputs: 16
• Alarm outputs: 8
• Supports RCA audio input and output (two-way audio).

Recording and Viewing Functions:

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Supports multiple recording types, including real-time, manual recording, video sensor, external alarm, video sensor and alarm, video sensor or alarm.
• Playback of recordings up to 16 simultaneous channels.
• Supports recording up to 12 MP per channel.

Note: The DS96XXX recorder series works under a client-server architecture, so a workstation is required for correct operation. If you have any questions, please contact the security engineering department.
