Mid-range 8-line IP phone with 4 feature keys, 32 digital BLF extension keys, and 5-way PoE conferencing

Mid-range 8-line IP phone with 4 feature keys, 32 digital BLF extension keys, and 5-way PoE conferencing

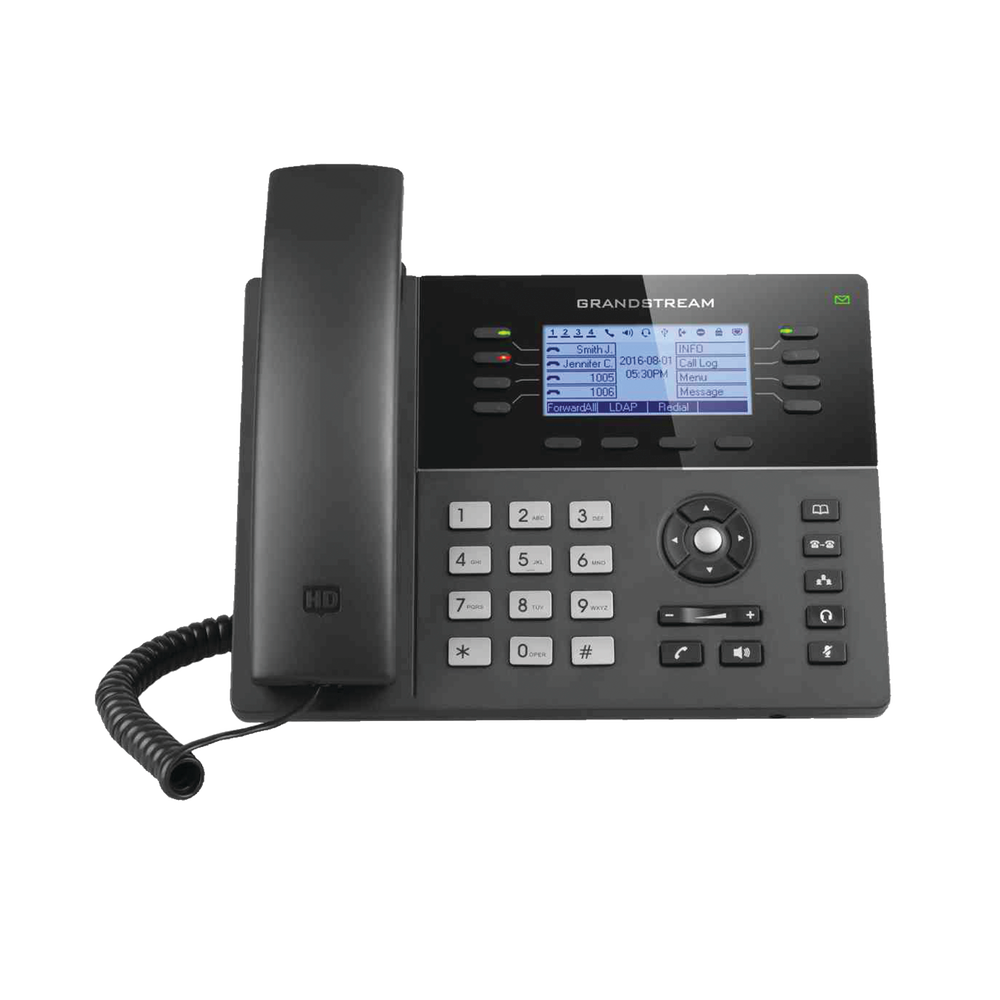

The GXP1780/1782 is a powerful mid-range IP phone with advanced telephony features. This mid-range IP phone comes equipped with 8 lines, 4 SIP accounts, 8 dual-color line keys, and 4 programmable, context-sensitive XML keys on a 200 x 80 pixel backlit LCD display.
For added customization, the GXP1780/1782 offers personalized music ringtone/ringback tone and integration with advanced Web and enterprise applications, as well as local weather service.
It is also one of the first Grandstream phones to come equipped with a Kensington security lock, one of the most popular anti-theft solutions on the market. The GXP1780/1782 supports the fastest possible connection speeds with two auto-sensing Gigabit network ports (GXP1782 only), as well as auto-provisioning features with media access control. The GXP1780/1782 is the perfect solution for users looking for a feature-rich IP phone that offers high performance and great design at an affordable price.

Main:
- 8 Lines, 4 SIP accounts, 4 programmable XML function keys and 5-way conferencing.
- 32 Digitally programmable BLF extension keys.
- 200 x 80 Pixelex LCD display with backlight
- Integrated USB port only for importing and exporting data
- HD Audio.
- Double network port 10/100 Mbps (GXP1780) and 10/100/1000 Mbps (GXP1782).

Telephone functions:
Hold, transfer, forward, 5-way conference, call park, call retrieve, shared call status (SCA)/bridged line status (BLA), downloadable phonebook (XML, LDAP, up to 2000 contacts), call waiting, call log (up to 500 records), XML display customization, auto redial on hook, auto answer, click to dial, flexible dial plan, hot desking (shared workstations), personalized music ringtones and music on hold, server redundancy and failover

Codecs:
Support for G.729A/B, G.711μ/a-law, G.726, G.722 (broadband), G.723,
iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Interfaces:
Two auto-sensing 10/100 Mbps (GXP1780) and 10/100/1000 Mbps (GXP1782) switched Ethernet ports with integrated POE

Security:
User and administrator level passwords, authentication based on
MD5 and MD5-sess, 256-bit AES encrypted configuration file,
SRTP, TLS, 802.1x Media Access Control, Security Sockets support
Kensington (Kensington Lock)

Quality of service:
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Languages:
Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 .

Accordance:
FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B; EN61000-3-2; EN61000-3-3;
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1

Physical and electrical characteristics:
- Universal power supply; Input: 100~240VAC 50-60Hz; Output: .5VDC, 1A. / PoE 802.3af .
- Base or wall mountable.
- Dimensions: 167 x 231 x 86 mm.
- Weight: 0.925 kg.
- Operating temperature: 0~40ºC.

Package contents:
GXP1780/GXP1782 telephone, corded handset, stand base, universal power supply, network cable, Quick Installation Guide, GPL license
*1 year warranty.
