(hEX) RouterBoard, 5 Gigabit Ethernet Ports, 1 USB Port and version 3

Hex is a five-port Gigabit Ethernet router for locations where wireless connectivity isn't required. The device has a full-size USB port. This updated version of the Hex brings several performance improvements.

It's affordable, small, and easy to use, but at the same time, it comes with a very powerful dual-core 880MHz CPU and 256MB of RAM, capable of all the advanced configurations that RouterOS supports.

Hardware IPsec encryption (~470 Mbps) and server type package is supported, microSD slot in which also provides higher r/w speed for database storage on microSD card.

*1 year warranty.

RouterBOARD Architecture: MMIPS
Important Note:
Architecture Type Not Compatible with User Manager.
Experimental support for SMIPS, ARM and MMIPS architectures (RB1100AHx4, RB3011, RB750Gr3 etc.) will be available starting with version 6.42rc14.

Main features of RouterOS

General Specifications

Details
Product code	RB750Gr3
Architecture	MMIPS
CPU	MT7621A
Number of CPU Cores	2
CPU frequency	880 MHz
Number of CPU threads	4
Dimensions	113x89x28mm
License Level	4
Operating System	RouterOS
RAM memory	256 MB
Storage	16 MB
Storage Type	FLASH
Temperature	-30 + 70 C

Feeding

Details
Energy Consumption	5W
Power supplies	2 (DC jack, PoE-IN)
PoE input	Passive PoE
Input voltage through the jack	8-30 V DC
Input voltage through PoE	8-30 V DC

Ethernet

Details
Ethernet ports	5 x 10/100/1000 Mbps

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yeah
USB Type	USB Type A

Others

Details
PCB Temperature Monitor	Yeah
Voltage Monitor	Yeah

Ethernet Test Results

RB750Gr3		MT7621A (880Mhz) 1G all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162.4	1,972.2	443.7	1,817.4	1039.1	532.0
Bridging	25 bridge filter rules	162.4	1,972.2	168.1	688.5	174.3	89.2
Routing	none (fast path)	162.4	1,972.2	444.4	1,820.3	1035.0	529.9
Routing	25 simple queues	162.4	1,972.2	179.6	735.6	171.4	87.8
Routing	25 IP filter rules	92.9	1,128.2	94.1	385.4	93.8	48.0

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Parts Included

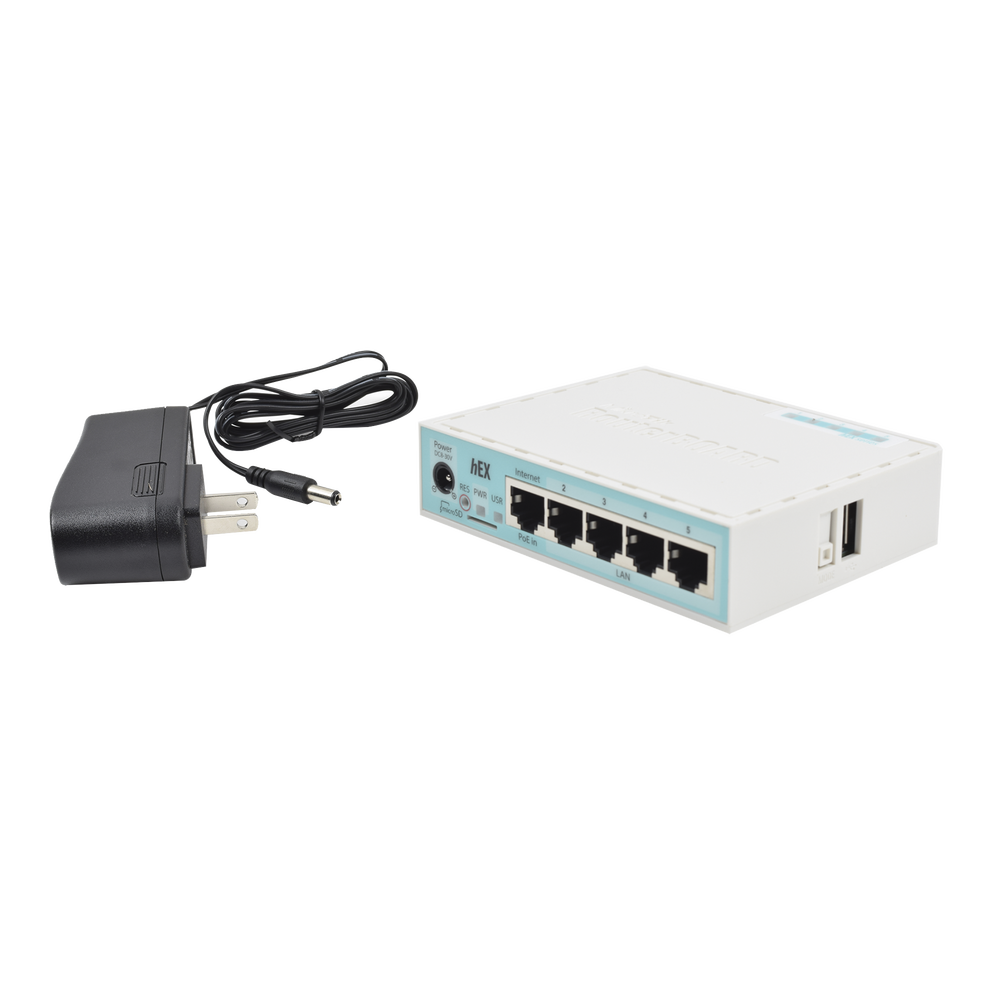

24V 0.38A power adapter

Dual Core 880MHz Processor, 256MB RAM, 5 Gigabit Ethernet 10/100/1000Mbps ports, Power: DC Jack or Passive PoE, License Level: 4
