Professional Analyzer for Ultra Portable Radio Communication Systems, 250 kHz-1 GHz.
Professional Analyzer for Ultra Portable Radio Communication Systems, 250 kHz-1 GHz.
Couldn't load pickup availability
Professional Analyzer for Ultra Portable Radio Communication Systems, 250 kHz-1 GHz.
Digital Service Monitor
Tool that every laboratory should have
100% Portable Equipment
Auto Tune for Different Protocols
Plug and Play Interchangeable Battery
MIL STD standard
Growth through Licensing

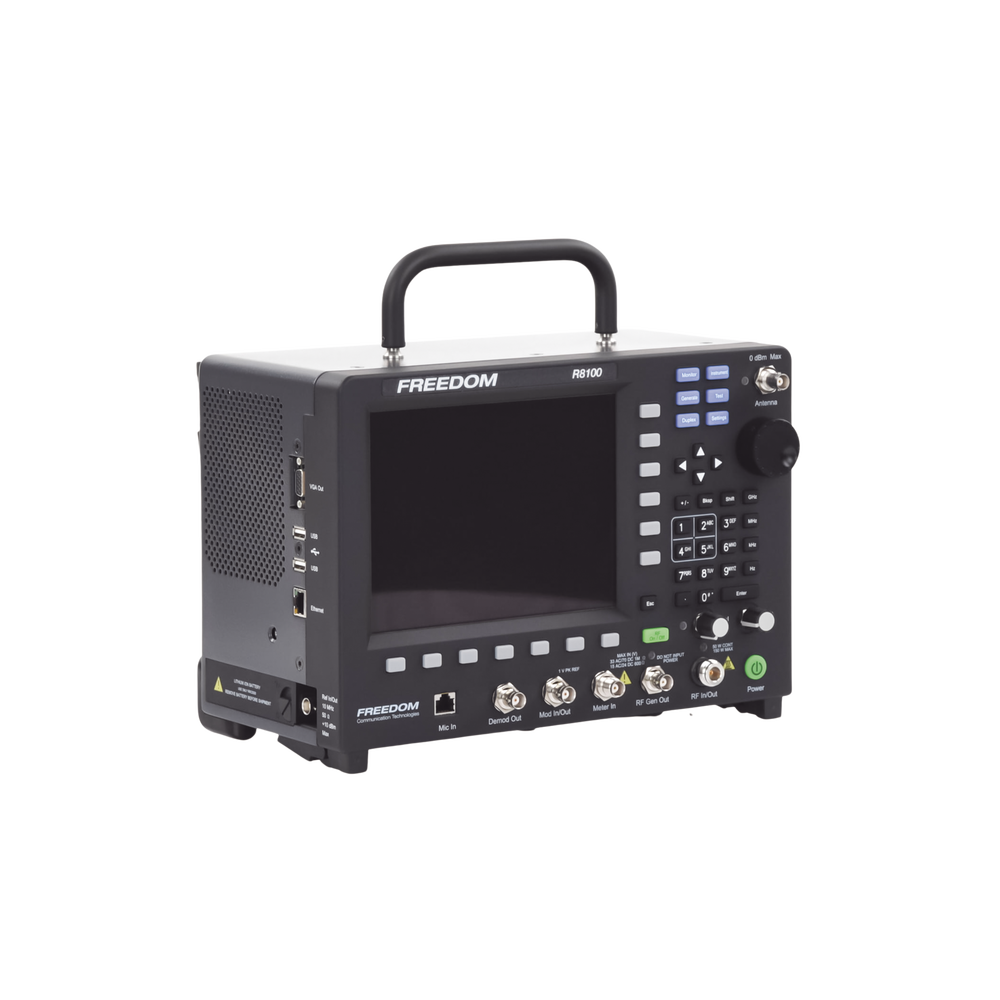

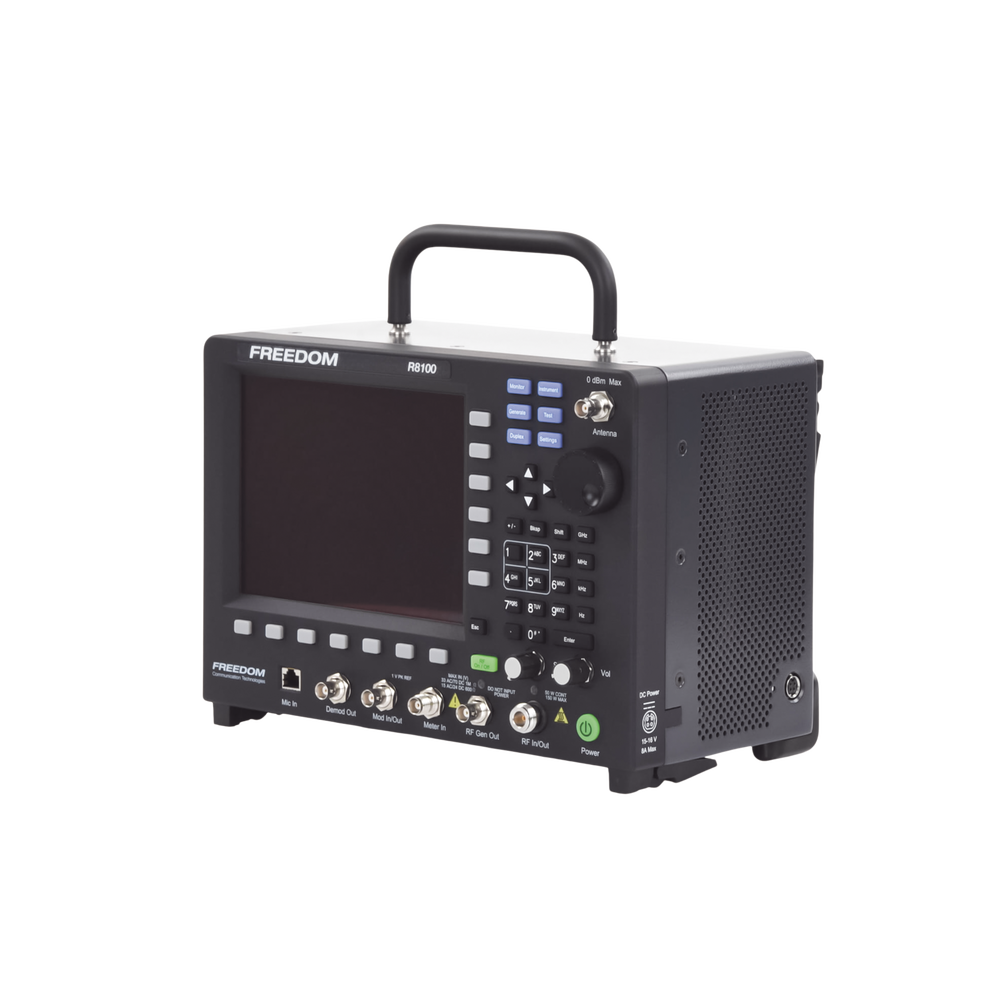

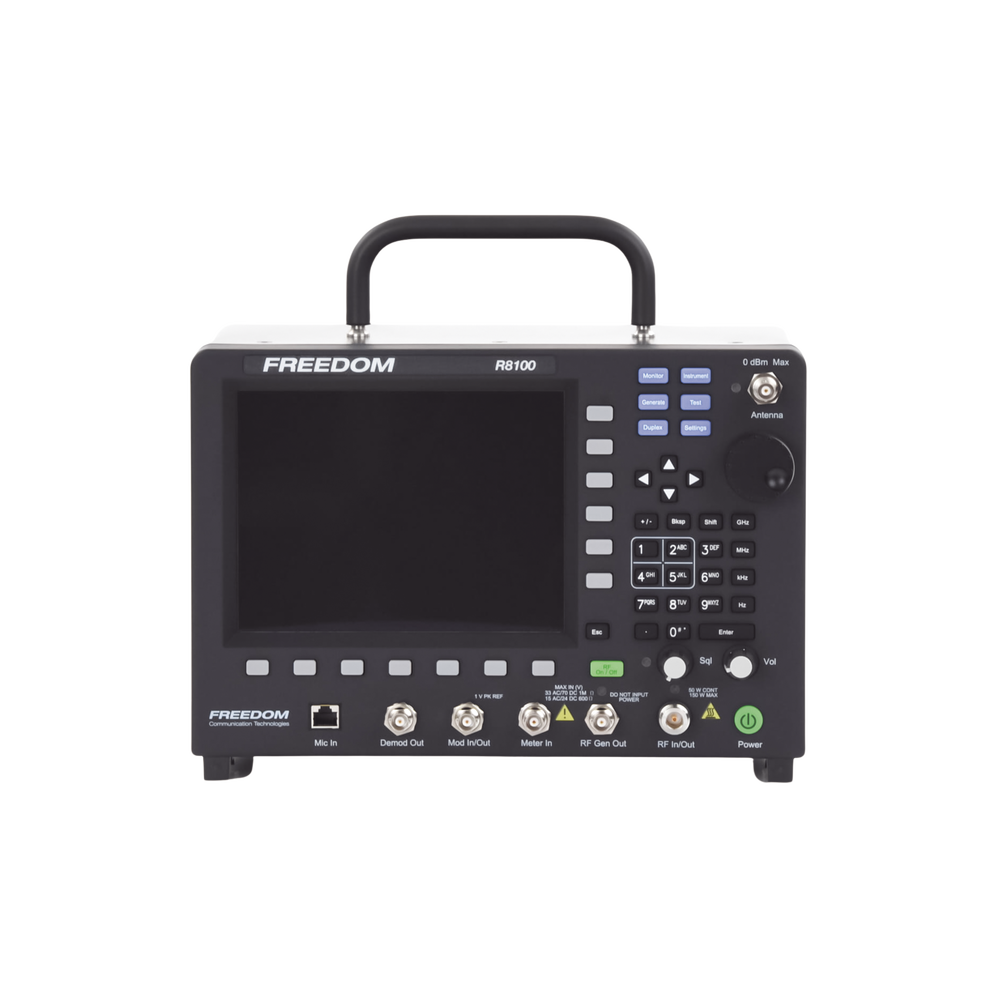

The R8100 is the ultra-portable lab equipment. It has all the testing features and capabilities of an industry-standard communications systems analyzer, but also features an internal battery, top-notch ergonomics, and a set of advanced optional features.
With the R8100, there's absolutely no trade-off between power and total portability. The Mil-Spec Class 3 vibration and shock rating proves its suitability for virtually any LMR test environment.
Functions and measurement capacity:
- Spectrum Analyzer.
- Signal generator.
- High sensitivity signal strength meter.
- SINAD and distortion meter.
- Modulation analyzer.
- Oscilloscope.
- Frequency error meter.
- AM modulation and FM deviation meter.
- Audio frequency generator and controller.
Accessories Included:
- Telescopic antenna and right angle BNC adapter.
- Microphone.
- Oscilloscope tip.
- Power cord and AC adapter.
- Cable Fault Location Kit (3dB Divider, 50 Ohm Terminal Load in chain with screw and nut and the quantity of 2 cables with 12-inch BNC).
- Internal Lithium-Ion battery.
- TNC to BNC adapter.
- 12V to 16V converter.
It is fully compatible with existing protocols on the market, from NXDN, Analog, DMR, P25 to name a few.
- Frequency range: 250 kHz - 1000 MHz (1 GHz).
- Fully Duplex Operation.
- 8.4' (213.36 mm) color LCD display, 800 x 600 (VGA) resolution, viewable under any lighting conditions.
- Spectrum analyzer with noise floor of -120 dBm.
- Power Meter: 50 Watts continuous, 150 Watts maximum.
Includes: Tracking Generator Option, Cable Fault Detection and Enhanced Spectrum Analyzer / Dual Display.
TOTAL PORTABILITY
Each R8100 ships with a lithium-ion battery that weighs only 490 grams. The battery powers the unit for up to 90 minutes and can be field-changed in less than 30 seconds. Simply open the cover, remove the battery, and insert another one into the side of the unit. During AC power, the R8100 charges the internal battery, and when AC power is disconnected, the unit seamlessly switches from AC to DC without interruption. The R8100 display shows the available battery capacity at all times. Spare batteries and a separate charger can also be purchased for applications requiring extended portability.
HIGH-PERFORMANCE TRACKING GENERATOR
Our Tracking Generator option provides an integrated instrument that configures the RF generator to a sweep mode. The extraordinary dynamic range and response time provide an invaluable tool for measuring and servicing RF filters and matching networks such as IF filters and duplexers. The wide selection of display and marker functions ensure fast and accurate measurements. Antenna return loss and VSWR measurements can be made using the optional return loss bridge (R8-VSWR).
ADVANCED FEATURES
The Dual-Display function, which displays the carrier and modulation range on the same screen, is included as a standard feature with every R8100, as is a tracking generator and cable fault locator. A unique feature of the R8100 is the ability to select the power meter scale in bar graph mode: choose from 5, 50, or 150W. Finally, the R8100 also offers the ability to display menu selections in French, German, and Spanish.
UPPER SPECTRUM ANALYZER
The R8100 comes equipped with a superior spectrum analyzer with a noise floor well below -140 dBm, super fast signal acquisition, 4 markers (2 standard) and a variable vertical scale available up to 1 dB per division.
EXPANDABLE AND UPGRADABLE
The R8100's software-based architecture allows you to add software options and upgrades in the field. So, if your needs change later, simply command the feature or protocol you need and activate it by entering a 16-digit option key using the front-panel keypad.
- Includes: Trace Generator Option, Cable Fault Detection and Enhanced Spectrum Analyzer / Dual Display.
Out of stock
MODELO: R8100
