• Switch Industrial Administrable Capa 2, 24 Puertos Gigabit, 4 Puertos Combo Gigabit SFP, 2 SFP+ 10G, Soporta Temperaturas de -40 a 75ºC
1 1

PLANET

Layer 2 Managed Industrial Switch, 24 Gigabit Ports, 4 Gigabit SFP Combo Ports, 2 SFP+ 10G, Supports Temperatures from -40 to 75ºC

Layer 2 Managed Industrial Switch, 24 Gigabit Ports, 4 Gigabit SFP Combo Ports, 2 SFP+ 10G, Supports Temperatures from -40 to 75ºC

$7.092.528 COP
$7.757.453 COP $7.092.528 COP
Sale Sold out
Shipping calculated at checkout.

Layer 2 Managed Industrial Switch, 24 Gigabit Ports, 4 Gigabit SFP Combo Ports, 2 SFP+ 10G, Supports Temperatures from -40 to 75ºC

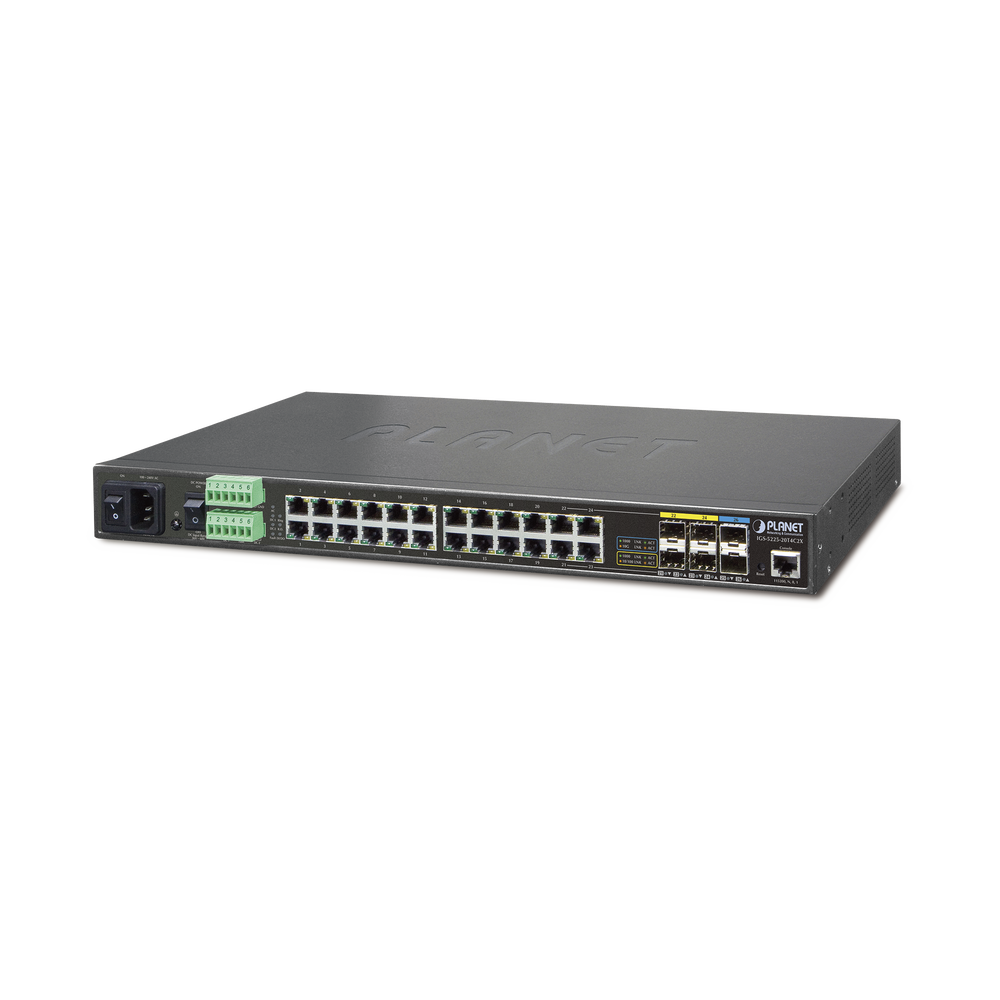

Planet IGS-5225-20T4C2X Industrial L2+ 20-Port Gigabit + 4-Port TP/SFP Combo + 2-Port 10G SFP+ Managed Ethernet Switch

Planet IGS-5225-20T4C2X Industrial L2+ 20-Port Gigabit + 4-Port TP/SFP Combo + 2-Port 10G SFP+ Managed Ethernet Switch

Hardware specifications
Copper ports 24 RJ45 Ports 10/100/1000BASE- T auto- MDI/MDI-X
SFP/mini-GBIC slots

4 SFP 100/1000BASE-X interfaces, shared with port 21 to port 24.

Compatible with 1000BASE-SX/LX/BX SFP transceiver

SFP+ slots

2 SFP+ 10GbBASE-SR/LR interfaces (Port 25 to Port 26)

Compatible with 1000BASE-SX/LX/BX SFP Transceivers

Console 1 RS232 to RJ45 serial port (115200,8,N,1)
Switch Architecture Store-and-Forward
Dimensions 440 x 200 x 44.5 mm, 1U
Weight 2916g
Consumption Max. 42.7 Watts/145.7 BTU
AC ignition requirements AC 100 - 240 V, 50/60Hz 1.5 A
DC ignition requirements DC 36 - 60 V, 1 A
Layer 2 Functions Port configuration, Port Status, Port Mirroring, VLAN, Link Aggregation, Spaning Tree Protocol, QoS, IGMP Snooping, MLD Snooping, Access Control List, Banwidth Control
Layer 3 Functions IP Interfaces, Routing Table, Routing Protocols
Administration interfaces Console, Telnet, Web Browser, SNMP v1, v2c,SSH, SSL, SNMPv3
Operating temperature -40 - 75°C
Package contents 1 Managed Switch, 1 Installation Guide, 1 DB9 to RJ45 Console Cable, 4 Rubber Feet, Rack Mount Kit, 1 AC Power Cable, 6 SFP Port Hoods, 25 RJ45 Port Hoods.
    With digital inputs and outputs for connecting external alarms, It has a redundant ring for fast recovery for surveillance systems, Alarm alerts for failure

Out of stock

MODELO: IGS-5225-20T4C2X
