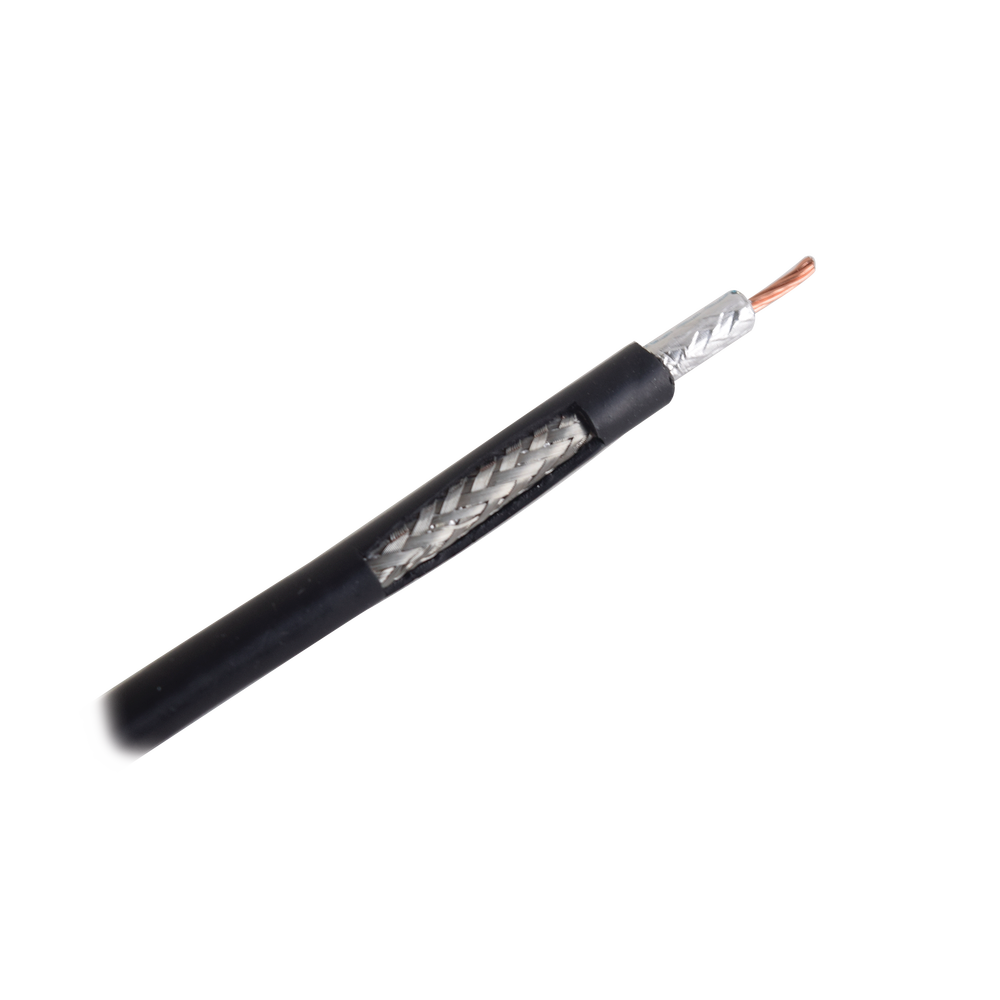

Meter of Ultra Flexible Coaxial Cable LMR240UF 50 Ohm, Stranded Copper Center Conductor

Meter of Ultra Flexible Coaxial Cable LMR240UF 50 Ohm, Stranded Copper Center Conductor

Ultra Flexible 50 Ohm/meter Coaxial Cable, Stranded Copper Center Conductor.

• High-performance Times LMR coaxial cable.
• Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages offered by the LMR-240ULTRAFLEX cable

• It features braided copper center conductors that, in combination with a rubber outer cover, offer maximum flexibility.
• For both indoor and outdoor use.

Ideal for:

• Applications that require the use of flexible cables that can withstand multiple bends.
• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 3.6 dB.
• Attenuation at 30 mts. at 450 MHz: 6.3 dB.
• Shielding Effectiveness: greater than 90 dB
• Speed ​​Factor: 84%.
• Nominal Power: 0.31 kW at 450 MHz.

Construction Specifications

• Center Conductor Material: Stranded Copper.
• Cable Outer Diameter: 6.10 mm
• Inner Conductor Diameter: 1.42 mm.
• Shielding: Tinned Copper Mesh.
• Dielectric Insulation: Polyethylene foam.

Ultra Flexible, Stranded Core Conductor, 20 Years of Overseas Service
