8-Port Gigabit Powered Ultra PoE 802.3af/at HUB Injector with 400W Power

8-Port Gigabit Powered Ultra PoE 802.3af/at HUB Injector with 400W Power

Planet's Ultra PoE Managed Injector Hub Series , a cost-effective and fast Ultra PoE solution, is designed to seamlessly upgrade an existing network infrastructure to an Ultra Power over Ethernet network system without replacing the existing Ethernet switch.

Ready to deploy next-generation Power over Ethernet
The UPOE-800G is a high-density rack-mount managed Ultra PoE injector hub with PLANET intelligent PoE features via web UI for remote management. It provides 8 10 / 100 / 1000BASE-T Ethernet ports that delivers Ultra PoE injector with a total PoE budget of 400 watts. Each PoE port can deliver up to 60 watts of power over Cat.5/5e/6 UTP Ethernet cables allowing data and power to be transmitted simultaneously to a remote 60W 802.3at/af device (PD). The UPOE-800G enables centralization of power supply and optimizes the installation and power management of remote network devices, and provides a fast, secure, and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Quick and easy deployment of the PoE network

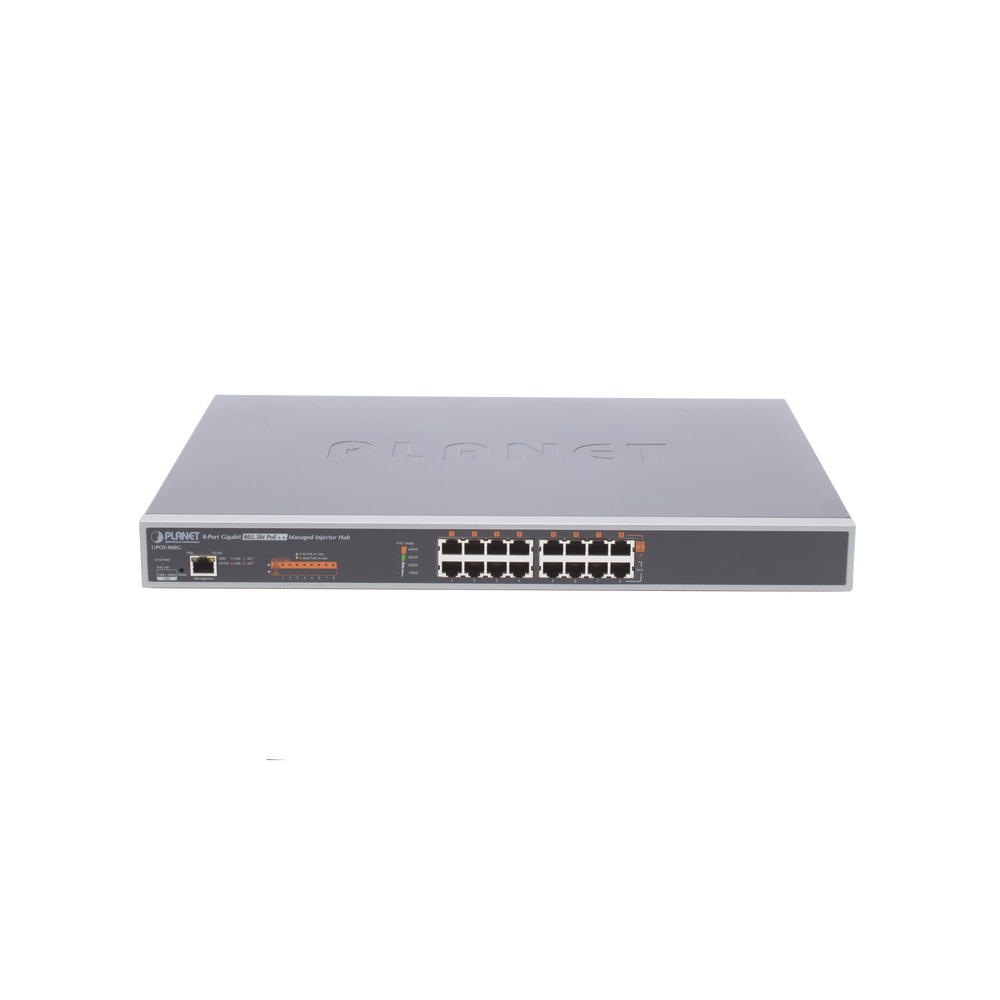

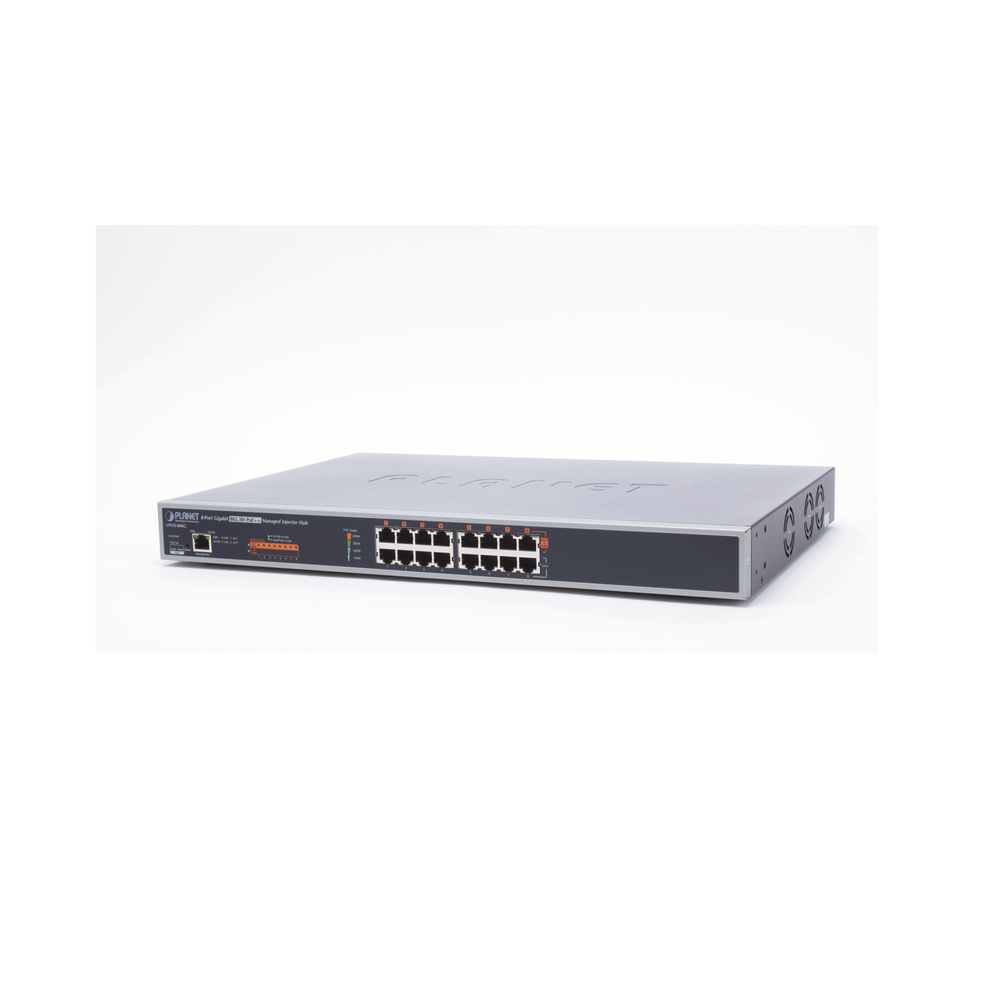

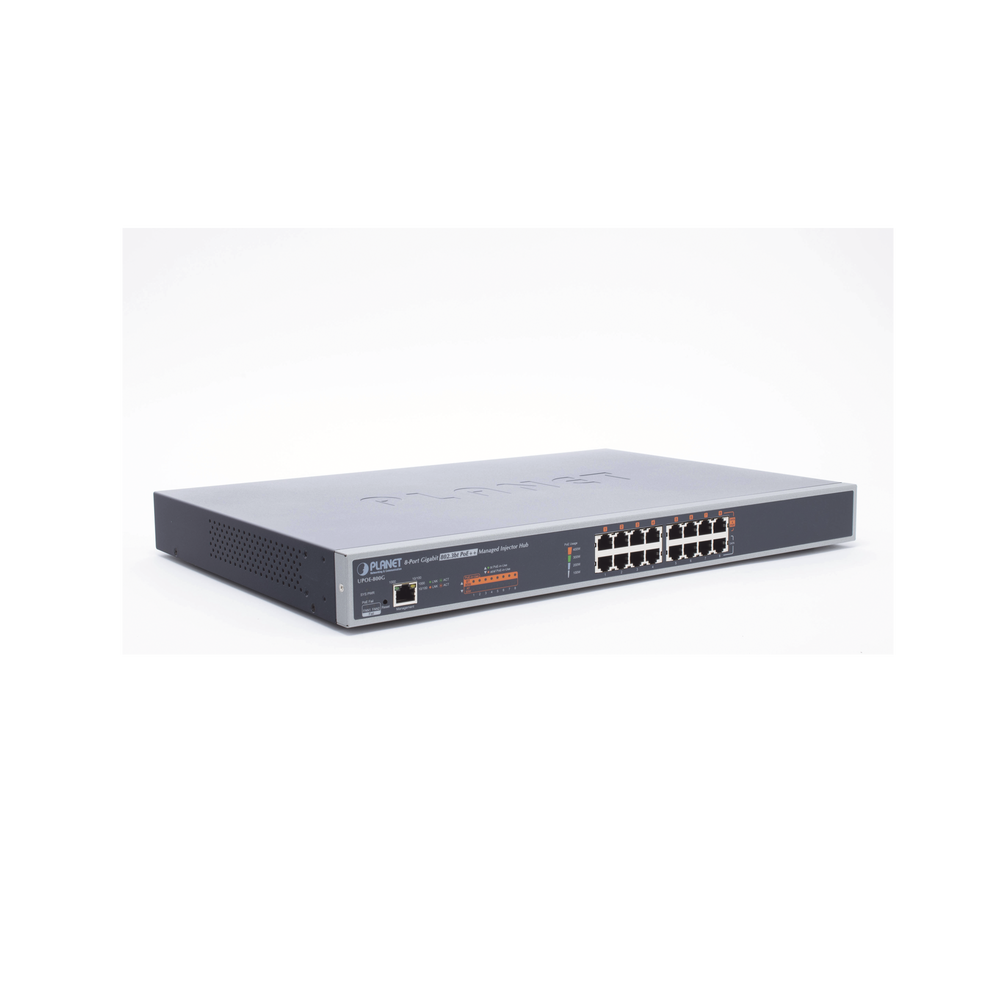

The UPOE-800G is installed between a regular Ethernet switch and the PDs. There are 16 RJ45 STP ports on the front panel of the UPOE-800G, of which the 8 ports in the bottom stack function as ' Data In ' while the other 8 ports in the top stack function as ' PoE (Data & Power) '. Both power and data are transferred simultaneously through the UTP cables to the PDs without affecting the performance and functions of the existing network.

Interface

• 8-ports 10/100/1000Mbps “ Data input ”
• 8-ports 10/100/1000Mbps “ Data + Power output ”
• Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standard
• One 10/100/1000BASE-T management port

Power over Ethernet

• Ultra Power over Ethernet end-span/mid-span PSE
• Up to 60 watts of power on 4-pair UTP
• Backward compatible with IEEE 802.3at/af PD device
• 54V DC, 60-watt PoE power output at maximum on each port
• 400-watt PoE budget
• Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

PoE Management

• Per port PoE power schedule
• PoE function enable/disable
• Per port PoE function enable/disable
• PoE port power feeding priority
• PD classification detection
• Over temperature protection
• PD alive check
• PoE schedule

Management

• Web interface for remote management
• Supports Network Time Protocol (NTP)
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP trap for alarm notification of events
• System log/remote syslog

Hardware

• 19-inch rack mountable; 1U height
• Reset button for resetting to default setting and system reboot
• LED indicators for PoE ready and PoE activity
• LED indicators for power alert and fan alert
• LED indicators for PoE power usage status (watts)
• FCC Part 15 Class A, CE
