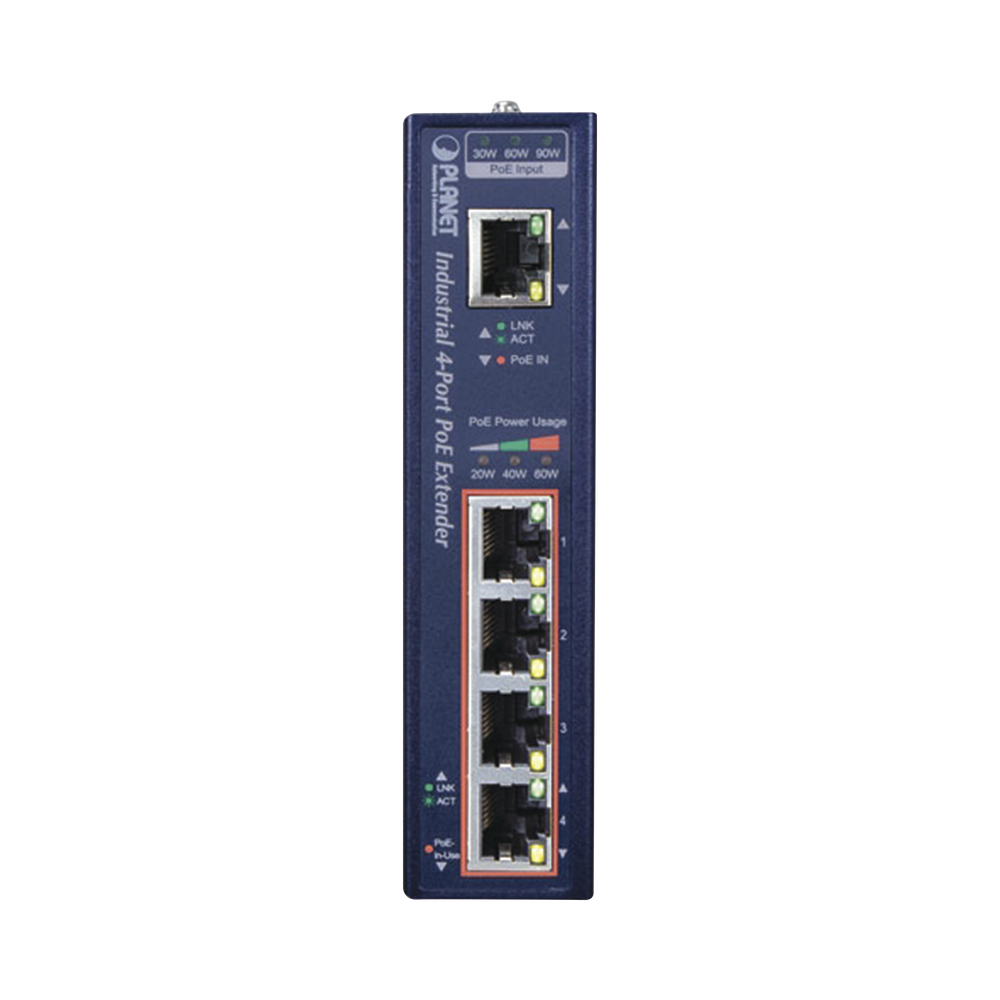

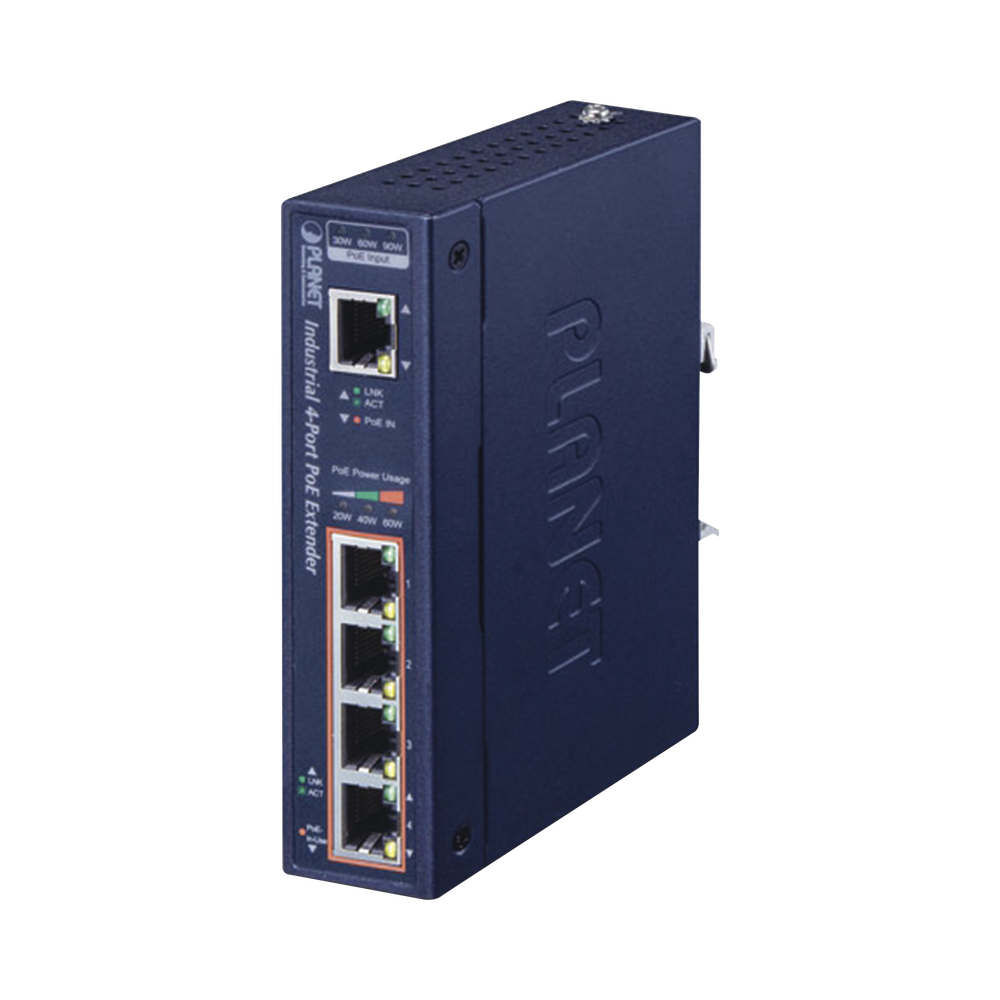

• Extensor Industrial , Entrada PoE 802.3 bt y 4 Puertos de Salida Gigabit 802.3 af/at
1 3

PLANET

Industrial Extender, 802.3 bt PoE Input and 4 Gigabit 802.3 af/at Output Ports

Industrial Extender, 802.3 bt PoE Input and 4 Gigabit 802.3 af/at Output Ports

$811.137 COP
$978.187 COP $811.137 COP
Sale Sold out
Shipping calculated at checkout.

Industrial Extender, 802.3 bt PoE Input and 4 Gigabit 802.3 af/at Output Ports




Hardware specifications

Network connector

PoE input port
　- 1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ 'Data + DC'
- Auto MDI/MDI-X, Auto-negotiation RJ45 connector
PoE output port
　- 4 x 10/100 / 1000BASE-T Ethernet with IEEE 802.3af /at output on PoE “Data + DC”
- Auto MDI/MDI-X, Auto-negotiation RJ45 connector

Switch architecture

Store-and-Forward

MAC Address Table

2K MAC address table with auto-learning feature

Consumption

5.6 Watts / 19.11 BTU (on)
6.5 Watts / 22.18 BTU (full load without PoE function)
82.3 watts / 280.82 BTU (full load with PoE function)

PoE Standard

PoE Input Port - IEEE 802.3bt PoE++ Type 4 standard PD
- PoH (Power over HDBASE-T)
- IEEE 802.3at PoE+ End-Span/Mid-Span PD
Per PoE output port
- IEEE 802.3at Power over Ethernet plus end-of-line PSE

PoE power supply (Power supply not included)

PoE on the port
　: 50 ~ 57V DC, max. 95 Watts
Per PoE output port
　- 44 ~ 55V DC, max. 30.8 Watts

PoE Power Budget

75 Watts (max) @ 802.3bt PoE++ Type 4 Input

60 Watts (max) @ 802.3bt PoE++ Type 3 Input

75 Watts (max.) @ PoH Input

25 Watts (max) @ 802.3at PoE+ input

Dimensions (WxDxH)

32 x 87.8 x 135 mm

Weight

430g

Package contents

1 x IPOE-E174

1 x User Manual

5 x Connector caps

1 x Wall mounting kit




    IP30 housing, Wall and DIN rail mounting design, Temperature withstands from -40 to 75°C, Plug and Play installation, Front LEDs indicating PoE consumption

Out of stock

MODELO: IPOE-E174

View full details
