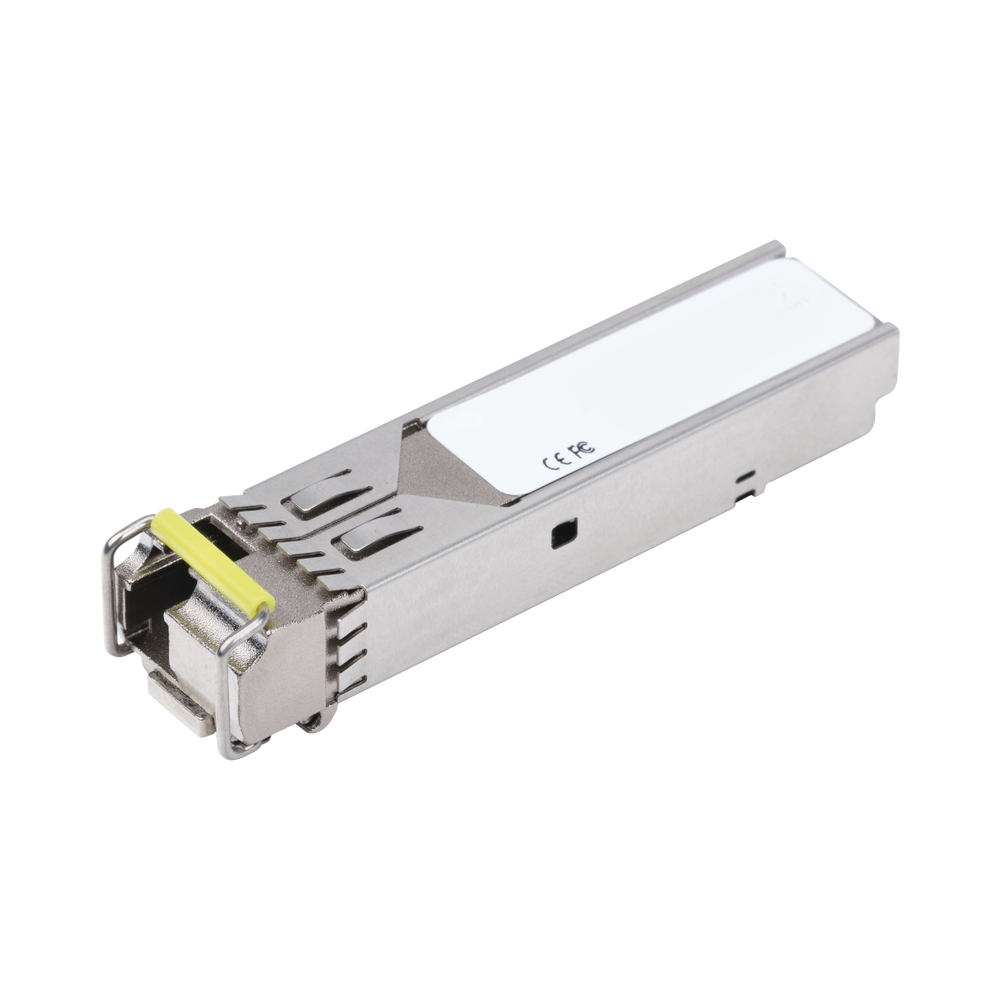

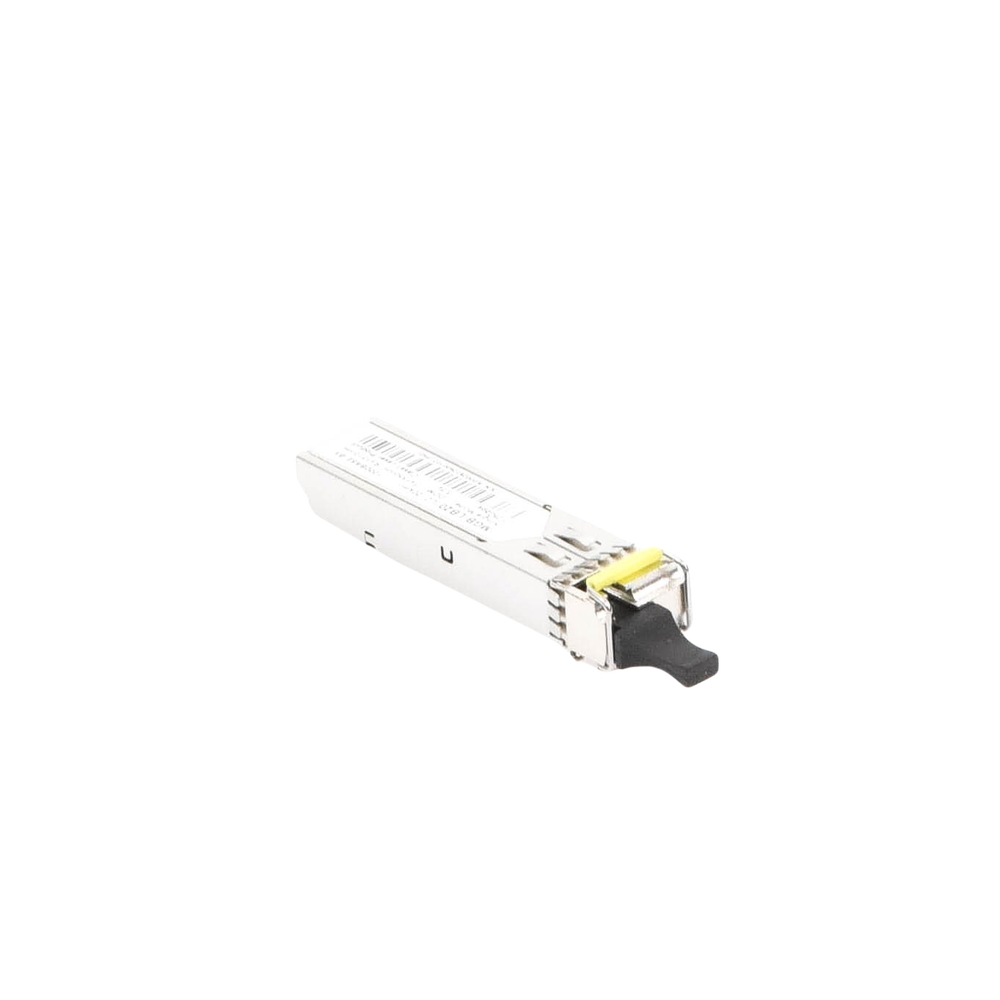

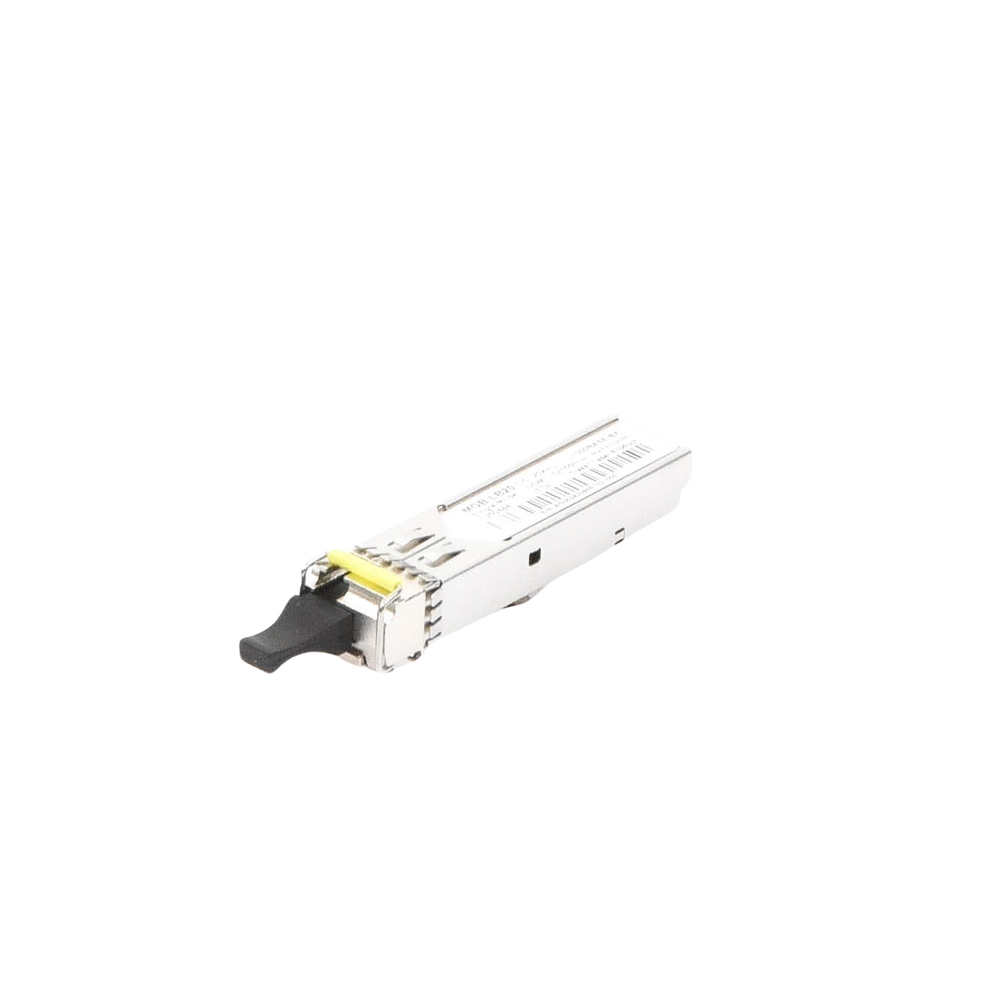

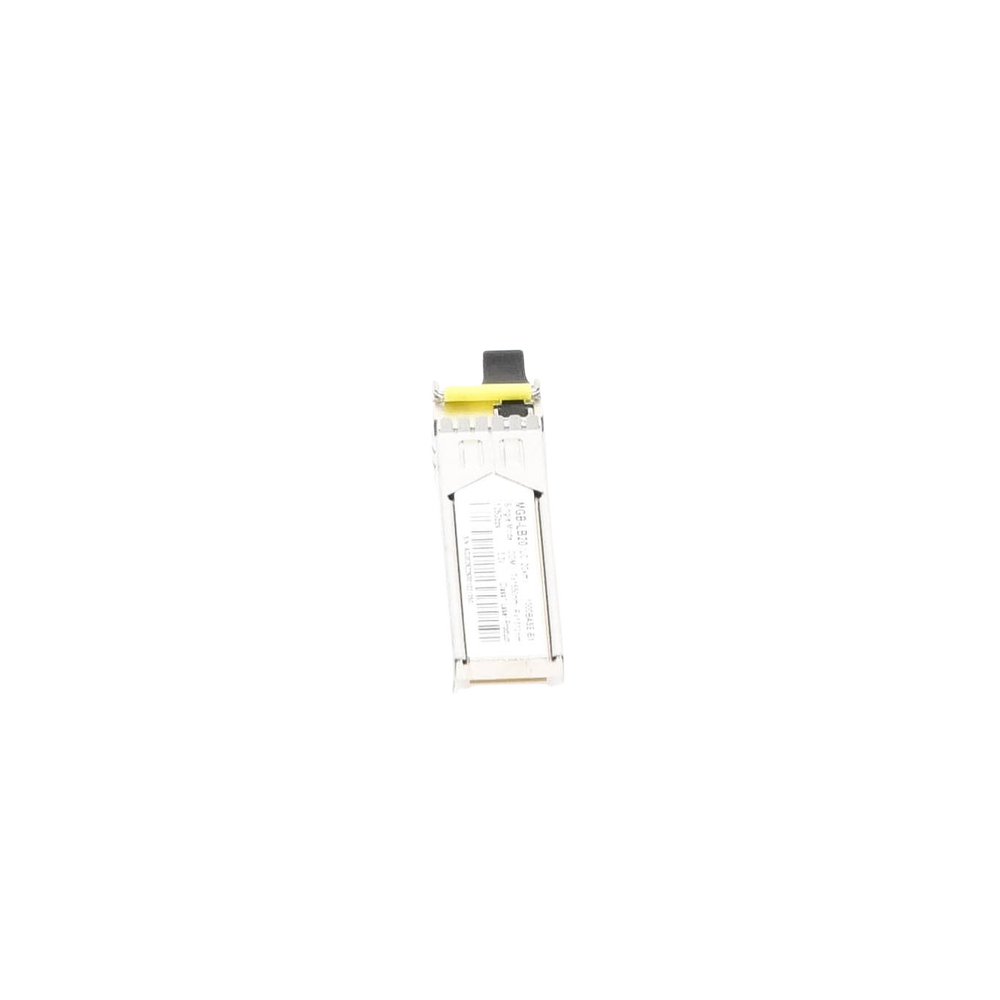

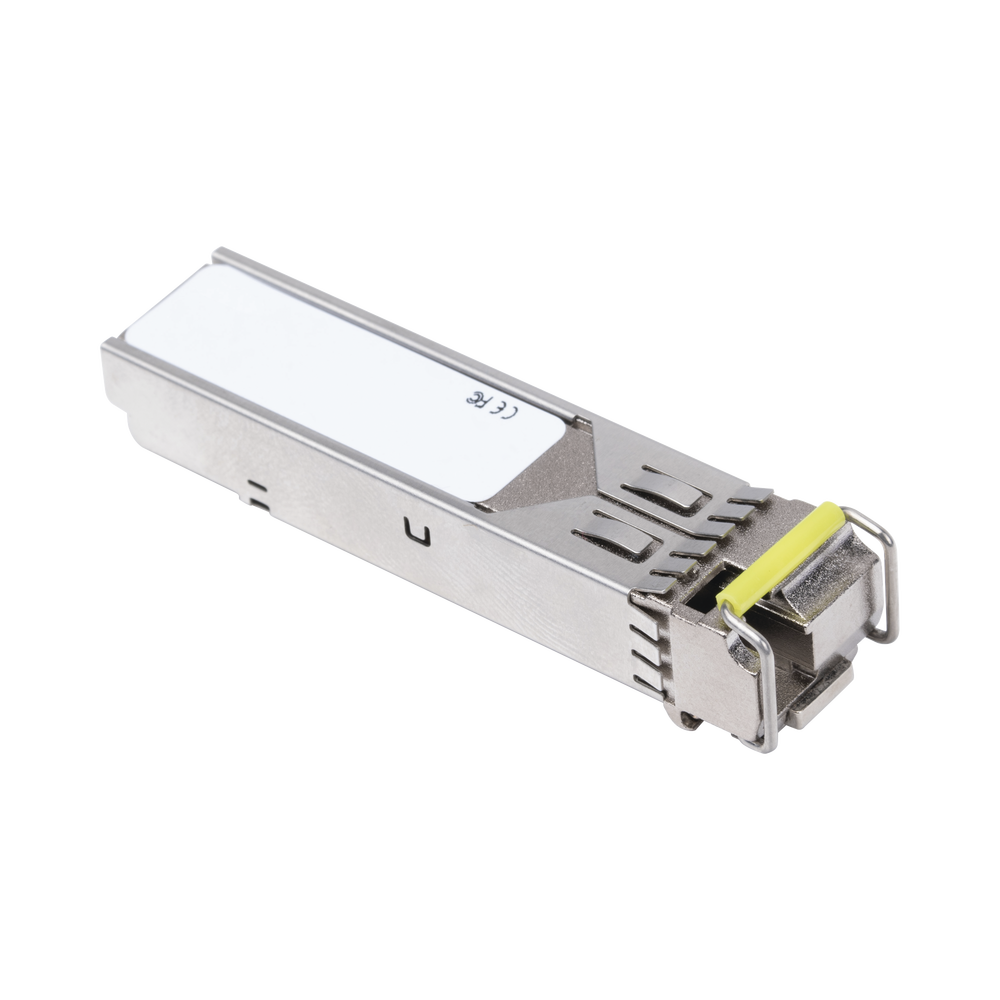

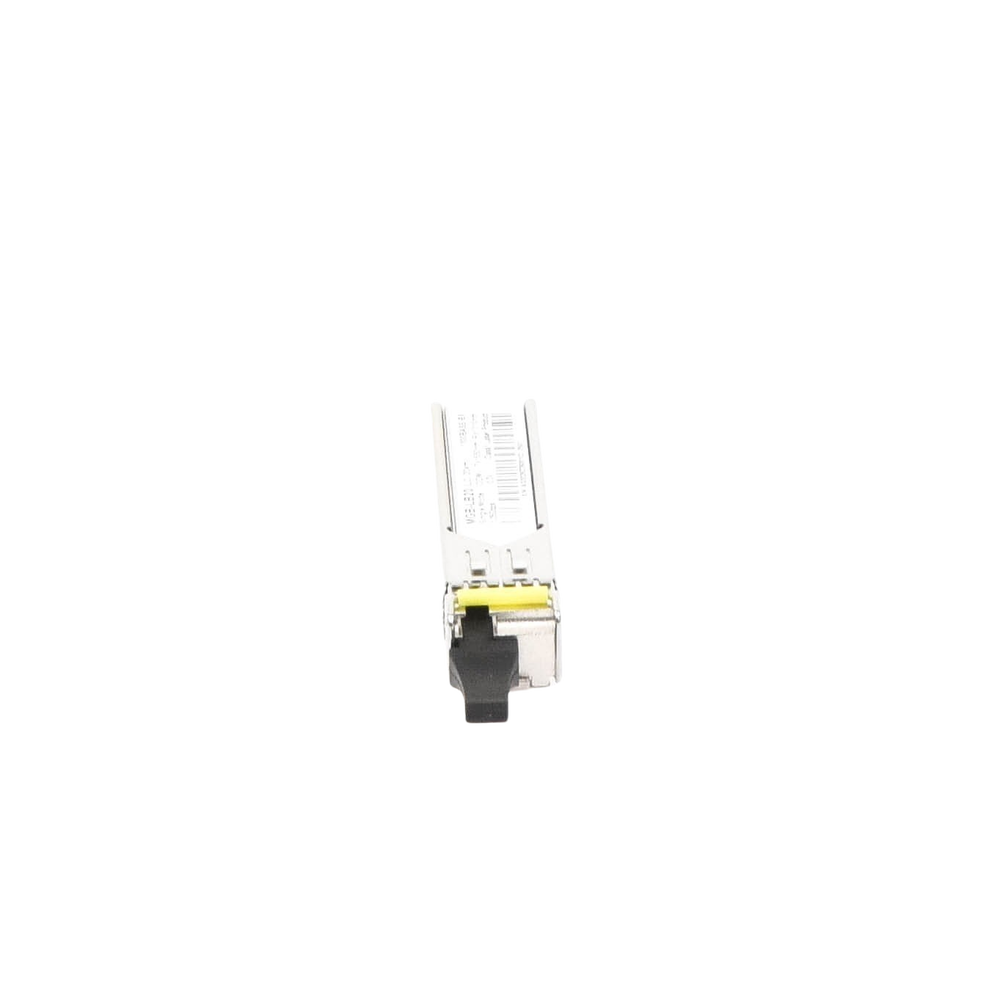

Mini-Gbic SFP 1G LC Transceiver TX:1550nm RX:1310 for 20km WDM Single Mode Fiber, (Requires MGB-LA20)

Mini-Gbic SFP 1G LC Transceiver TX:1550nm RX:1310 for 20km WDM Single Mode Fiber, (Requires MGB-LA20)

The MGB family consists of small form-factor pluggable (SFP) transceiver modules specifically designed for high-performance, integrated duplex data links over single-mode optical fiber. These transceiver modules are SFP Multi-Source Agreement (MSA) compliant and hot-pluggable. These modules offer easy installation into SFP MSA-compliant ports at any time without disrupting host equipment operation.

SFP transceivers are hot-pluggable and hot-swappable. You can plug and unplug the transceivers into/out of any SFP port without having to power down the switch/media converter.


** This Model requires working in conjunction with the Model: MGB-LA20

Compliant with IEEE 802.3ab/802.3z Gigabit Ethernet, One 1000Mbps TP/LC fiber port, Duplex/Simplex LC connector, PECL differential inputs and outputs, Single 3.3V power supply, TTL signal detection indicator, Hot-pluggable, Class 1 laser product complies with EN 60825-1, Plug and Play installation
