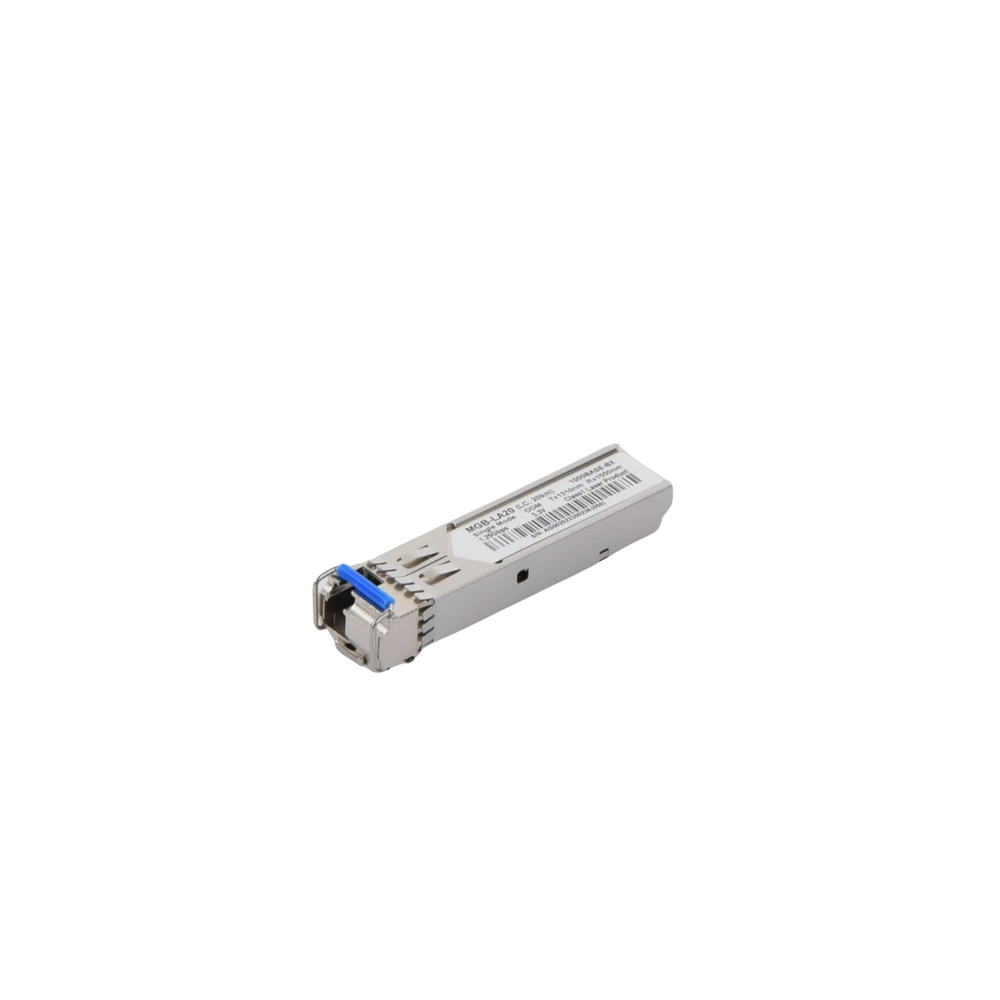

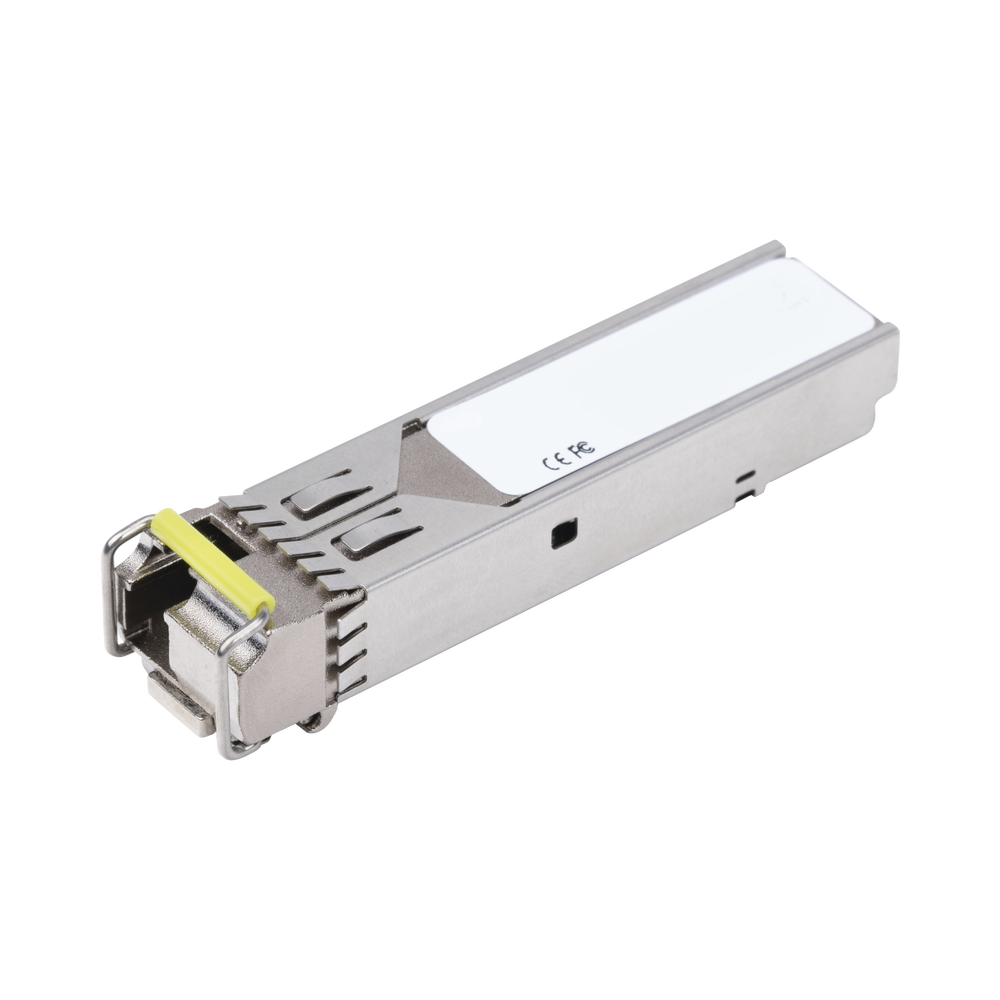

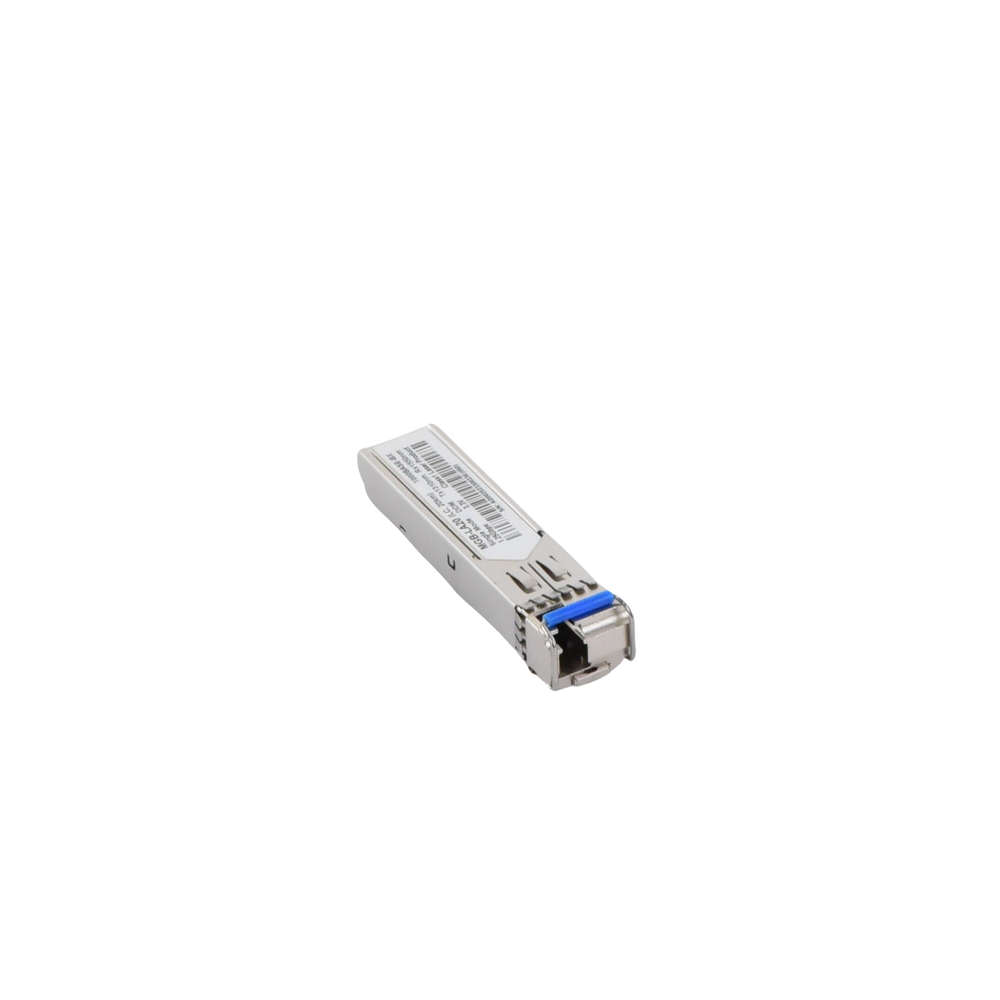

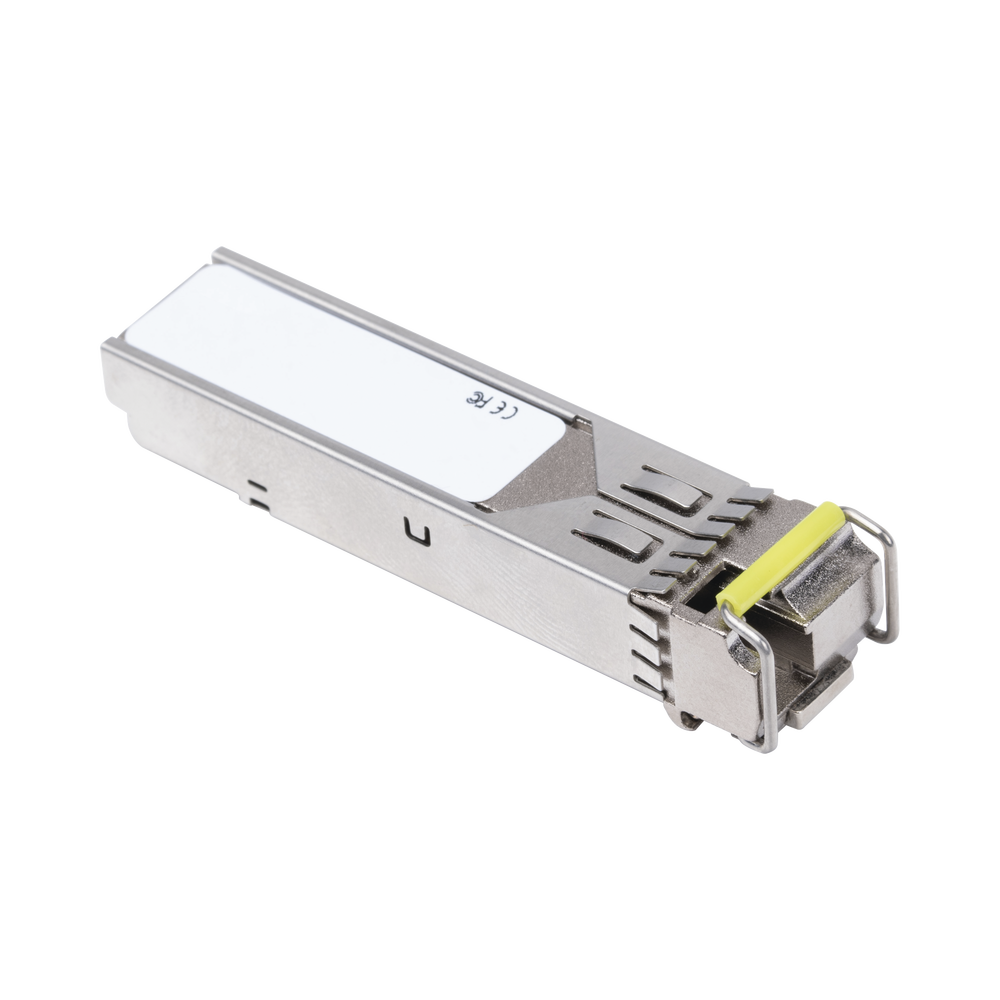

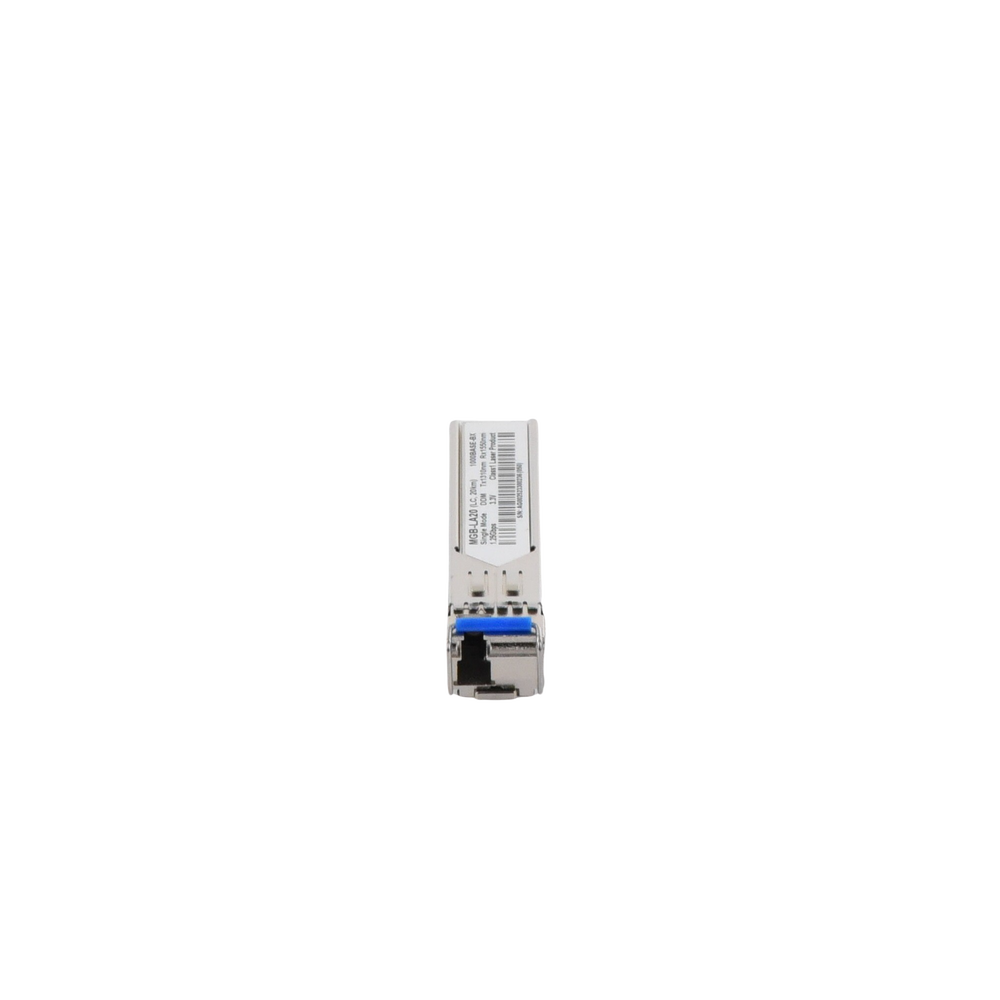

1G SFP mini-Gbic WDM transceiver LC TX:1310nm RX:1550 for 20km single-mode fiber (Requires MGB-LB20)
- Marca
- PLANET
- Referencia / SKU
-
MGB-LA20
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
1G SFP mini-Gbic WDM transceiver LC TX:1310nm RX:1550 for 20km single-mode fiber (Requires MGB-LB20)
The MGB family consists of small form-factor pluggable (SFP) transceiver modules specifically designed for high-performance, integrated duplex data links over single-mode optical fiber. These transceiver modules are SFP Multi-Source Agreement (MSA) compliant and hot-pluggable. These modules offer easy installation into SFP MSA-compliant ports at any time without disrupting host equipment operation.
SFP transceivers are hot-pluggable and hot-swappable. You can plug and unplug the transceivers into/out of any SFP port without having to power down the switch/media converter.
| MGB-LA20 and MGB-LB20 | |
|---|---|
| Type MGB | IEEE 802.3z 1000BASE-BX |
| Fiber type | Singular mode |

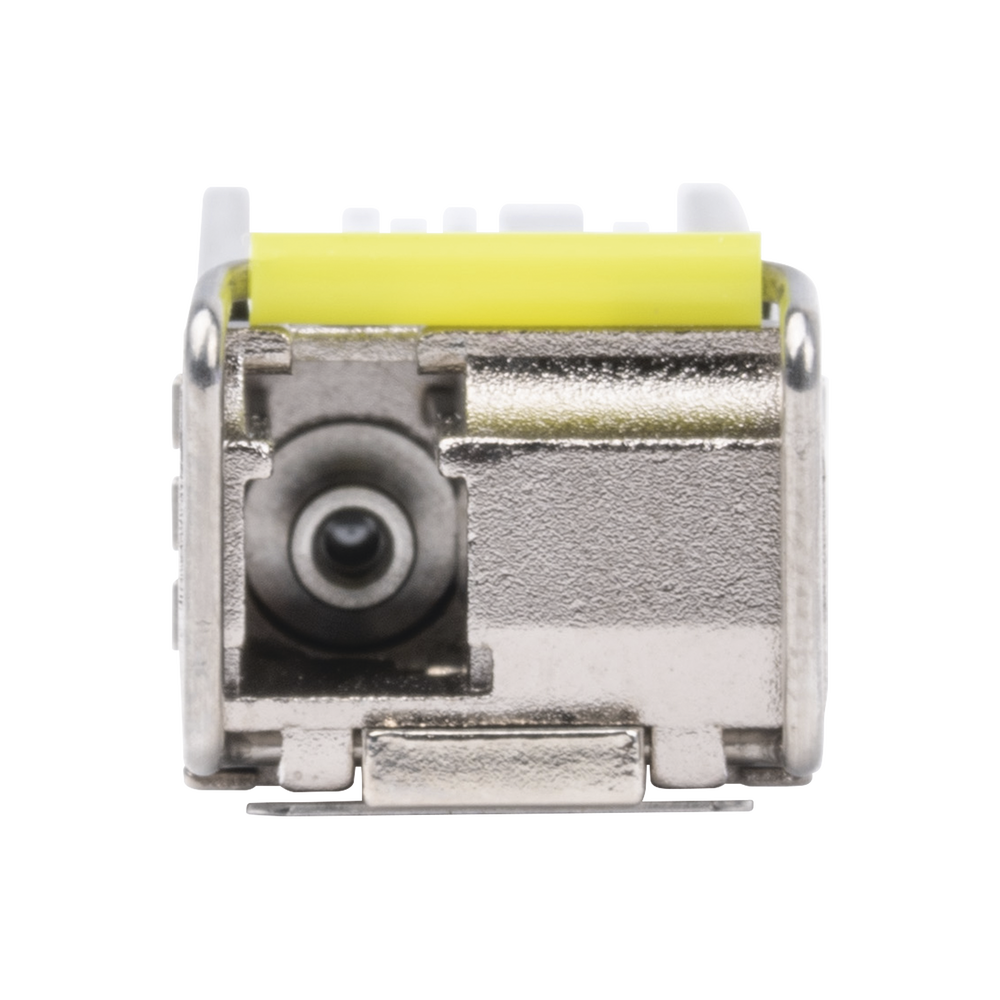

| Connector | LC/UPC simplex |
| DDM | Yeah |
| Wavelength |
MGB-LA20: TX1310nm, RX1550nm MGB-LB20: TX1550nm, RX1310nm |
| Maximum distance | 20 kilometers |
| Operating temperature | 0~60 degrees C |
** This model requires working in conjunction with the model: MGB-LB20
- Compliant with IEEE 802.3ab/802.3z Gigabit Ethernet, One 1000Mbps TP/LC fiber port, Duplex/Simplex LC connector, PECL differential inputs and outputs, Single 3.3V power supply, TTL signal detection indicator, Hot-pluggable, Class 1 laser product complies with EN 60825-1, Plug and Play installation
