Bandpass-Band Reject Duplexer, 136-174 MHz, 4 Cavities (4" Diam.), 1 MHz, 150 Watt, N Hem.

Bandpass-Band Reject Duplexer, 136-174 MHz, 4 Cavities (4" Diam.), 1 MHz, 150 Watt, N Hem.

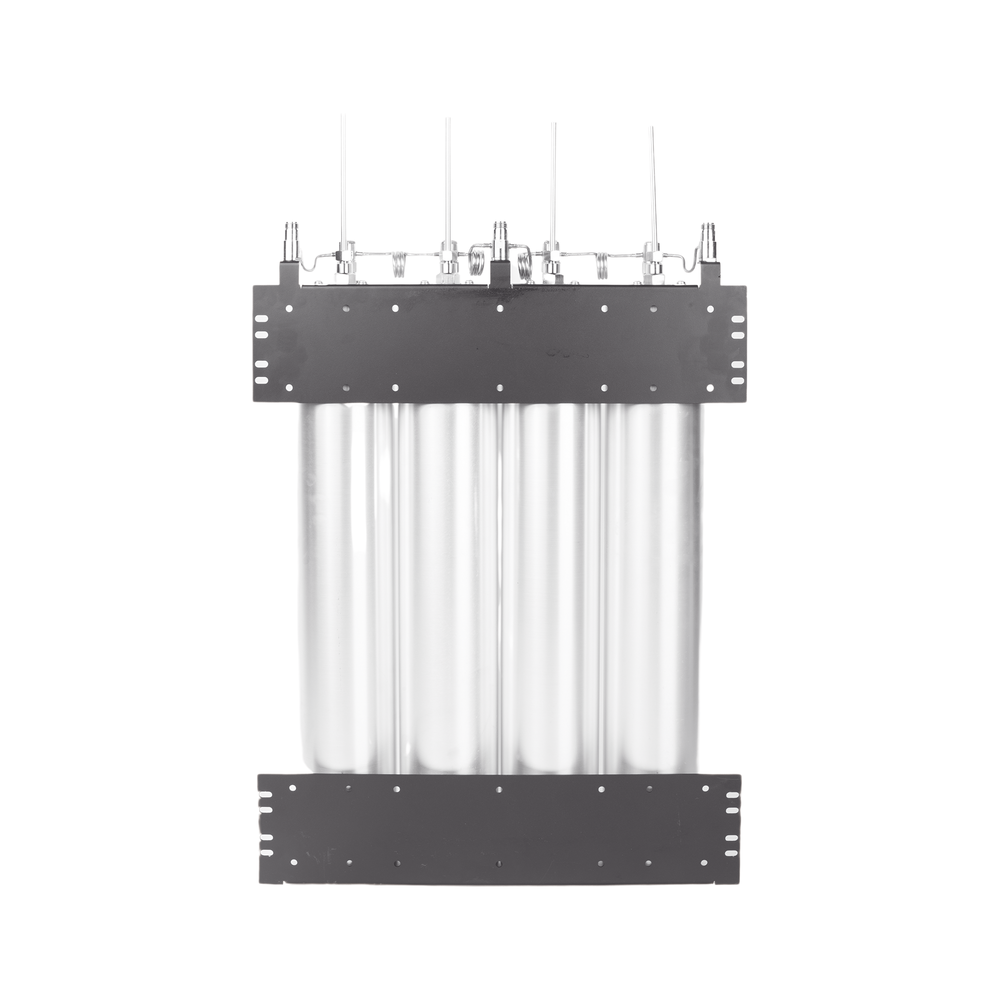

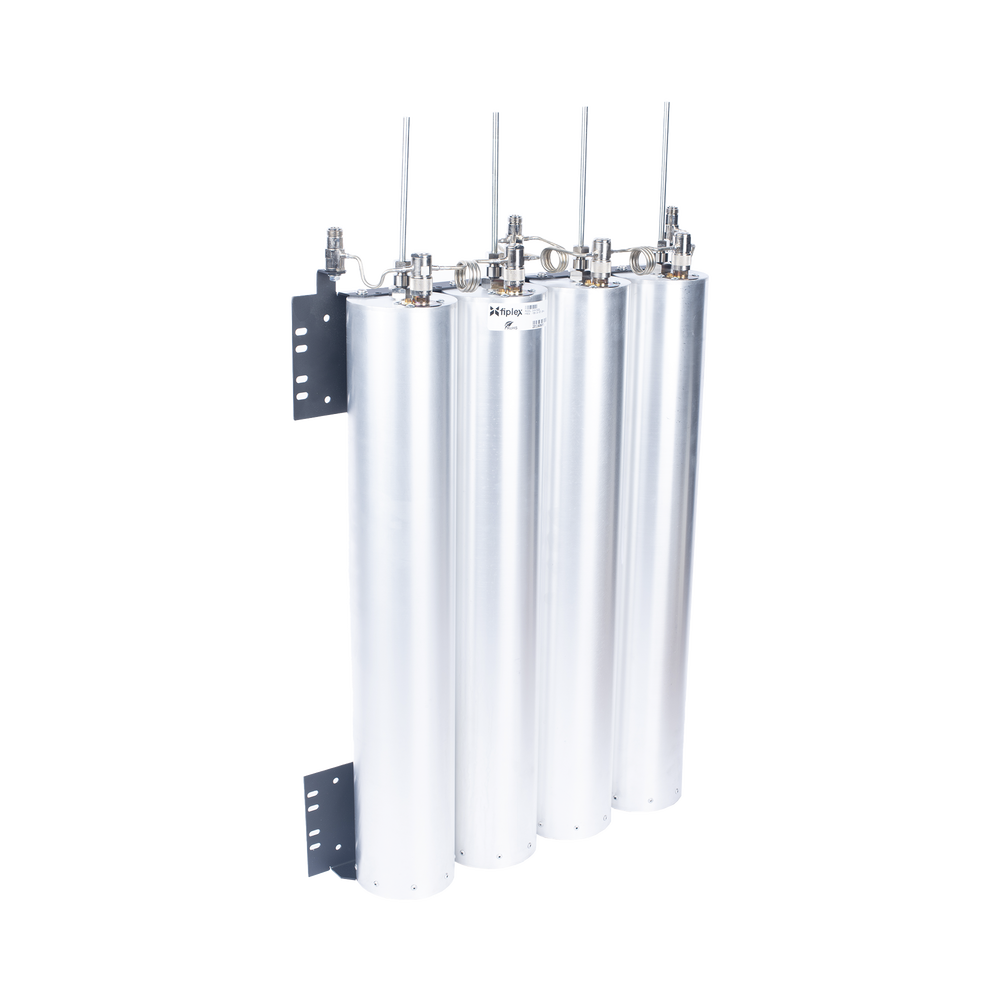

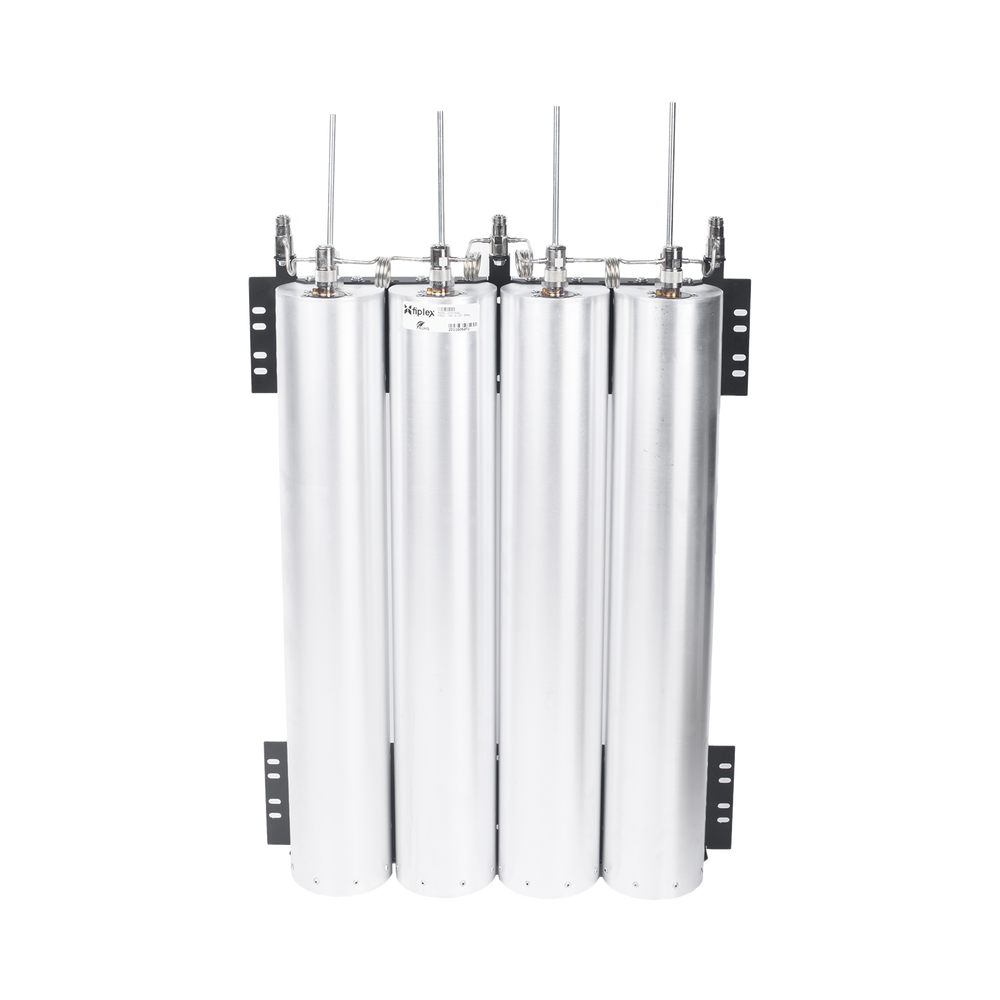

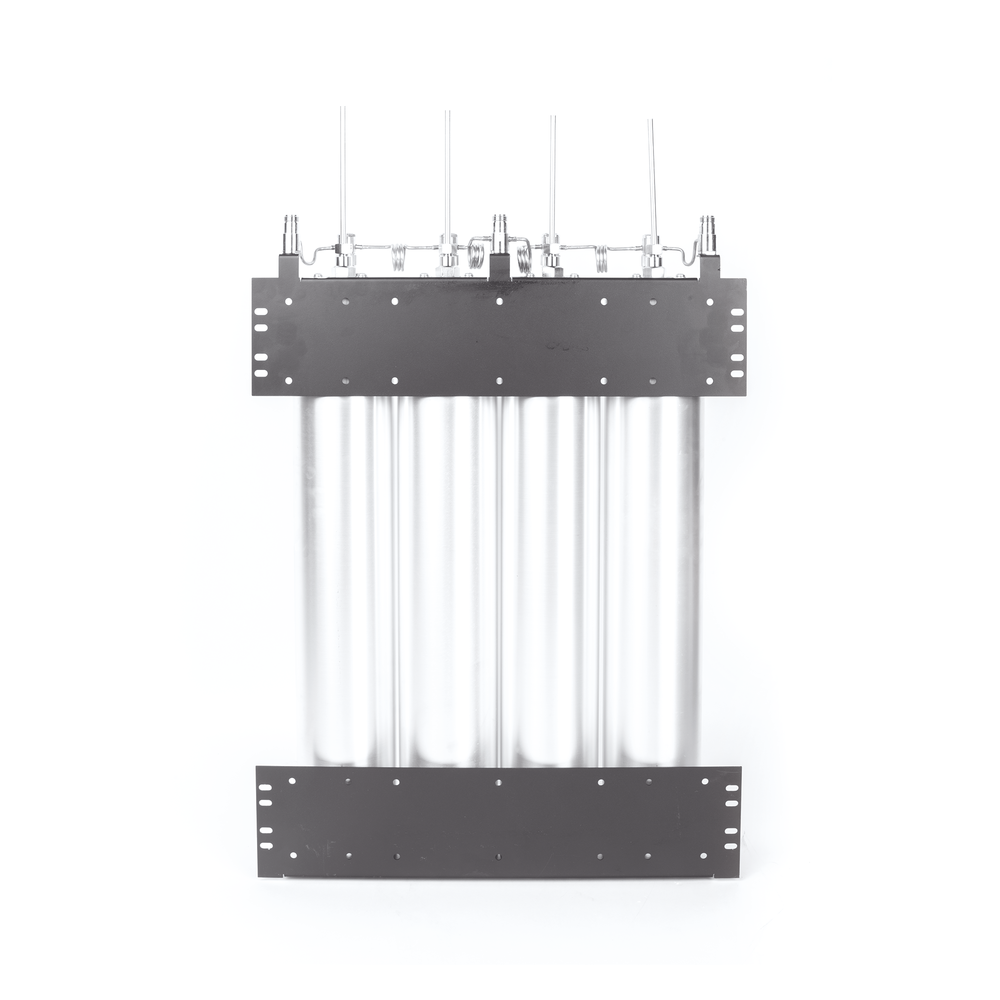

Bandpass/Band Reject Duplexer, 136-174 MHz, 150 Watt.

• Frequency range: 136-174 MHz.
• Isolation: 75 dB @ 0.5 MHz and 90 dB @ 2 MHz.
• Impedance: 50 Ω.
• Maximum power: 150 W.
• Frequency separation (Min): 0.5 MHz.
• Frequency Offset (Typical): 2.0 MHz.
• Insertion loss: 1.5 dB @ 0.6 MHz and 1 dB @ 2 MHz.
• Maximum VSWR: 1.5:1.
• Cavities: 4 (4' Diameter).

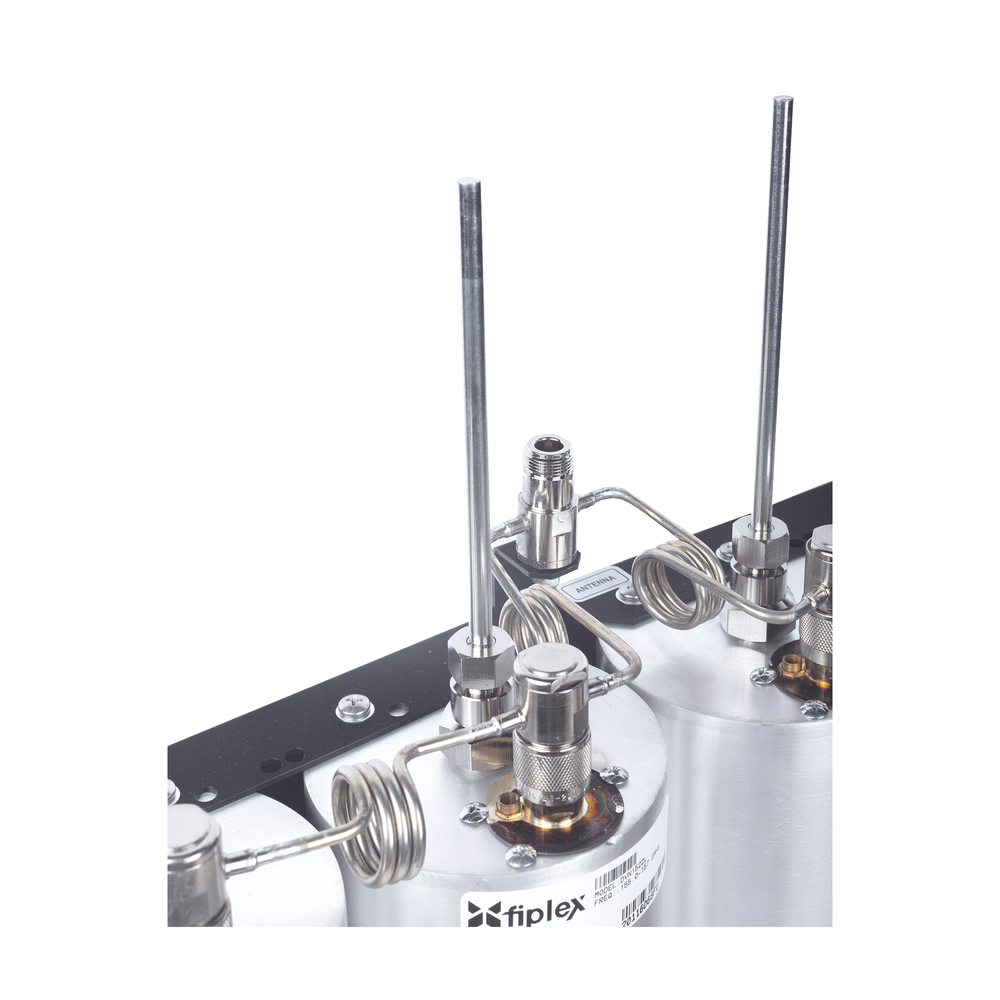

• Connectors: N Female.
• Operating temperature: -30 to 60ºC.
• Dimensions (Height x Width x Depth): 127 x 483 x 870 mm.

*Ask for delivery time.
