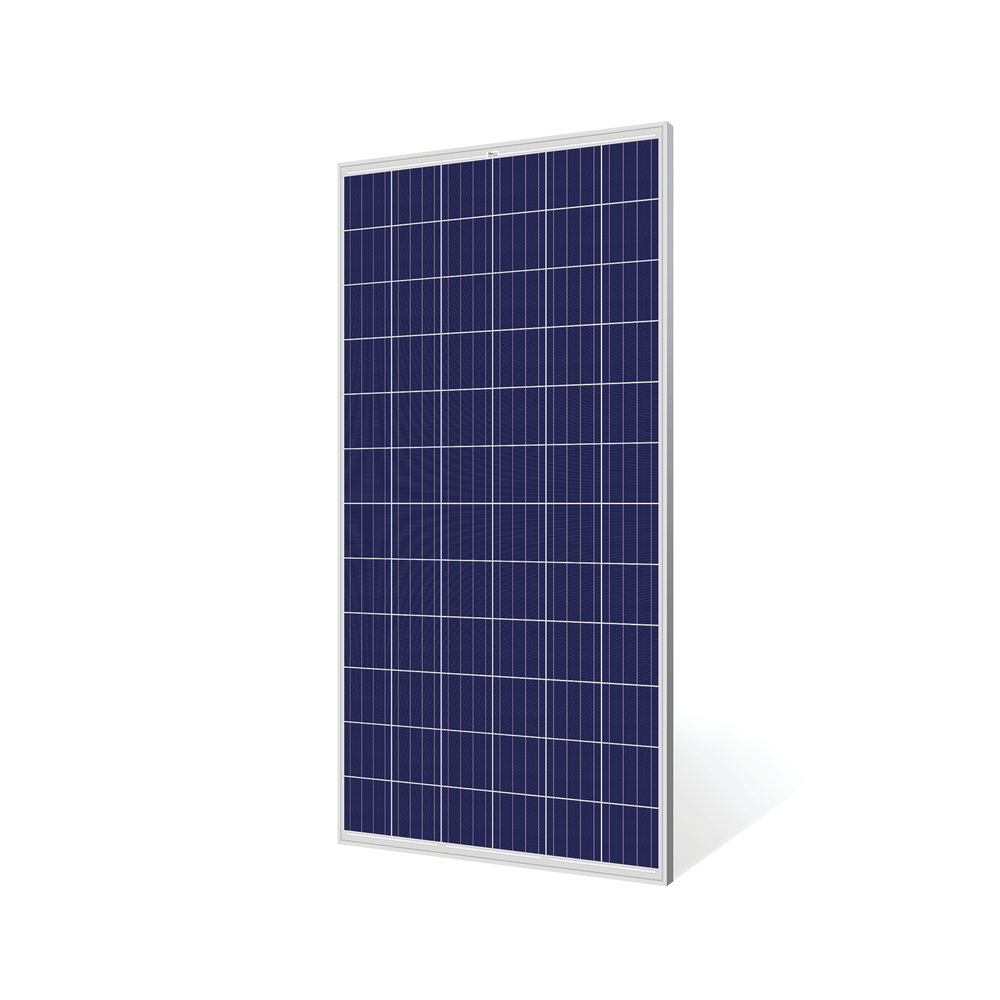

320 W Solar Panel / For 24 Vdc isolated and interconnection systems / Power Guarantee up to 25 Years / 72 Polycrystalline Cells / MC4 Connectors.

PERFORMANCE YOU CAN COUNT ON

TRINA Solar is a Tier 1 manufacturer, the only manufacturer to guarantee and ensure 25 years with a linear power degradation (They deliver 81% of safe power after 25 years)

There is no other manufacturer that delivers greater efficiency and stability; this is only possible by manufacturing all the components of the photovoltaic module (not by assembling).

Trina Solar's TALLMAX 1500V modules are designed to enable utility-scale customers to generate significant system savings.

ELECTRICAL DATA UNDER STC CONDITIONS

Nominal power-Pmax (Wp) 320
Nominal power tolerance (W) 0/+5
Voltage at Pmax-VMPP point (V) 37.1
Current at point Pmax-IMPP (A) 8.63
Open circuit voltage-VOC (V) 45.8
Short-circuit current-ISC (A) 9.10
Modulus efficiency ηm (%) 16.50
Module dimensions 1956 x 992 x 40 mm
*Panels with the same characteristics must be used in interconnection systems; it is recommended to consult with the engineering department.

Success Story: Toksun 90MW Industrial Project

Connected to the grid in December 2014, this 90MW ground-mounted system is located in the Toksun PV park in Xinjiang Province. It is powered by more than 300,000 Trina Solar multicrystalline modules.
