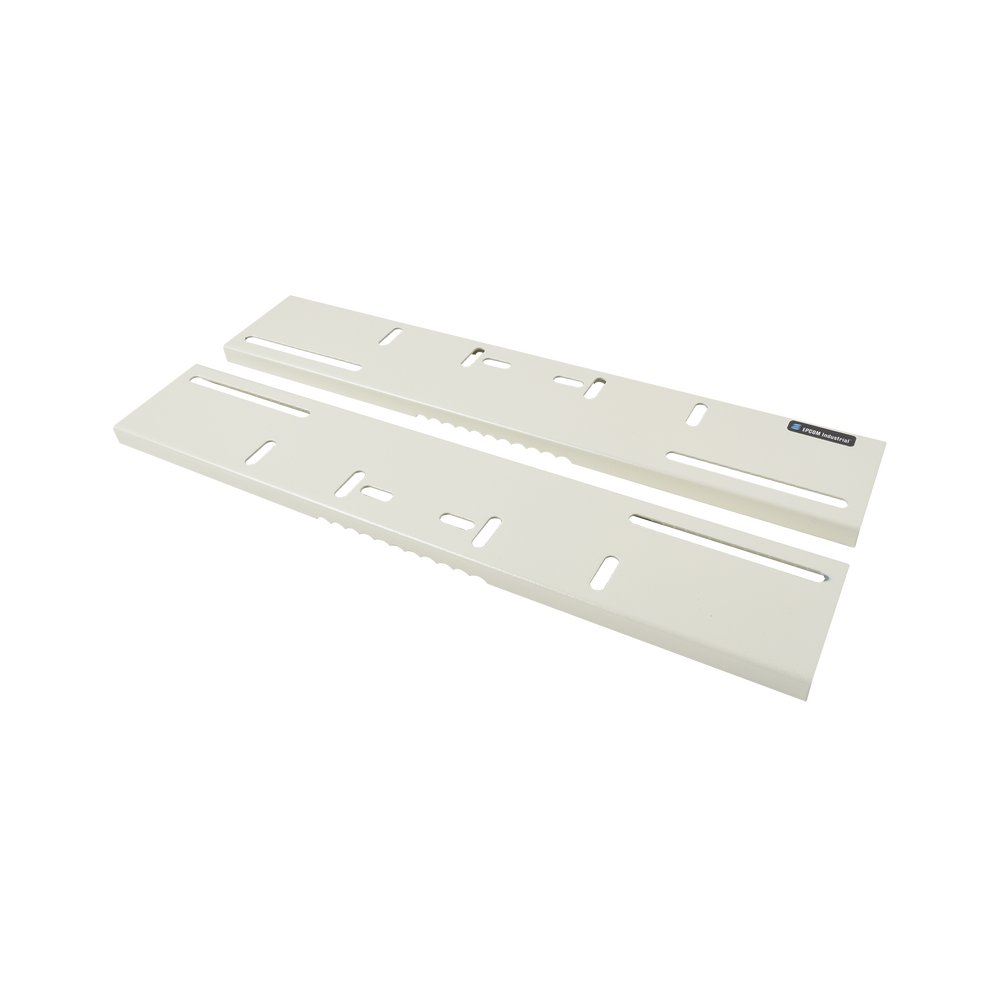

Pole or Tower Mount for TXPRO Cabinets (See compatibility).

Pole or Tower Mount for TXPRO Cabinets (See compatibility).

Pole or Tower Mount for TXPRO Cabinets.

Compatible with models:

TXG-3040
TXG-2919S
TXG-0147
TXG-0383
TXG-0149
TXG-3545
TXG-0157
TXG-01571
TXG-4050
TXT-4050
TXG0235JK

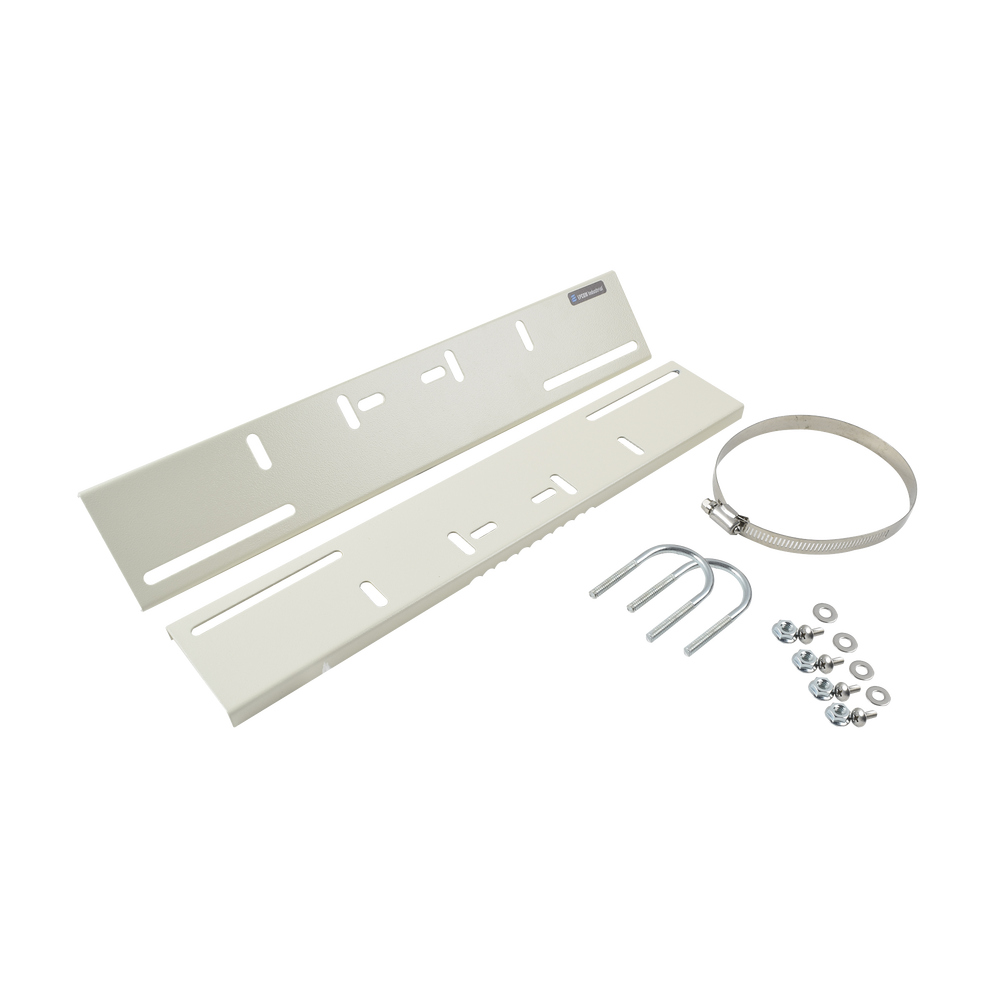

Includes clamps for 3' to 5' diameter poles.

Characteristics:
Material: Rolled steel sheet.
Caliber: 16
Color: Beige.
Paint: Electrostatic powder paint
Dimensions: 394 x 73 x 12 mm (width x height x depth).
Minimum distance between cabinet holes: 200 mm
Maximum distance between cabinet holes: 370 mm

Recommendations for use:
- During storage and transportation to the site, the equipment must be stored in a dry, moisture-free location, free from direct sunlight and other weather elements that may shorten the equipment's useful life.
- Damage to the equipment before, during, or after installation should be avoided at all costs, as cosmetic damage to the mounting coating could accelerate the formation of rust on the equipment.

Maintenance recommendations:
- It is recommended to constantly clean dust and moisture to prevent the accumulation of particles.
- Aesthetic touch-up with beige rain-resistant paint* is recommended (especially in humid areas) to strengthen the protective layer and delay the formation of rust.

*The painting process must be performed on clean equipment, free of dust particles and moisture. Solvents may be used to pre-clean the component.

**For further questions, please contact the SYSCOM Engineering Department.
