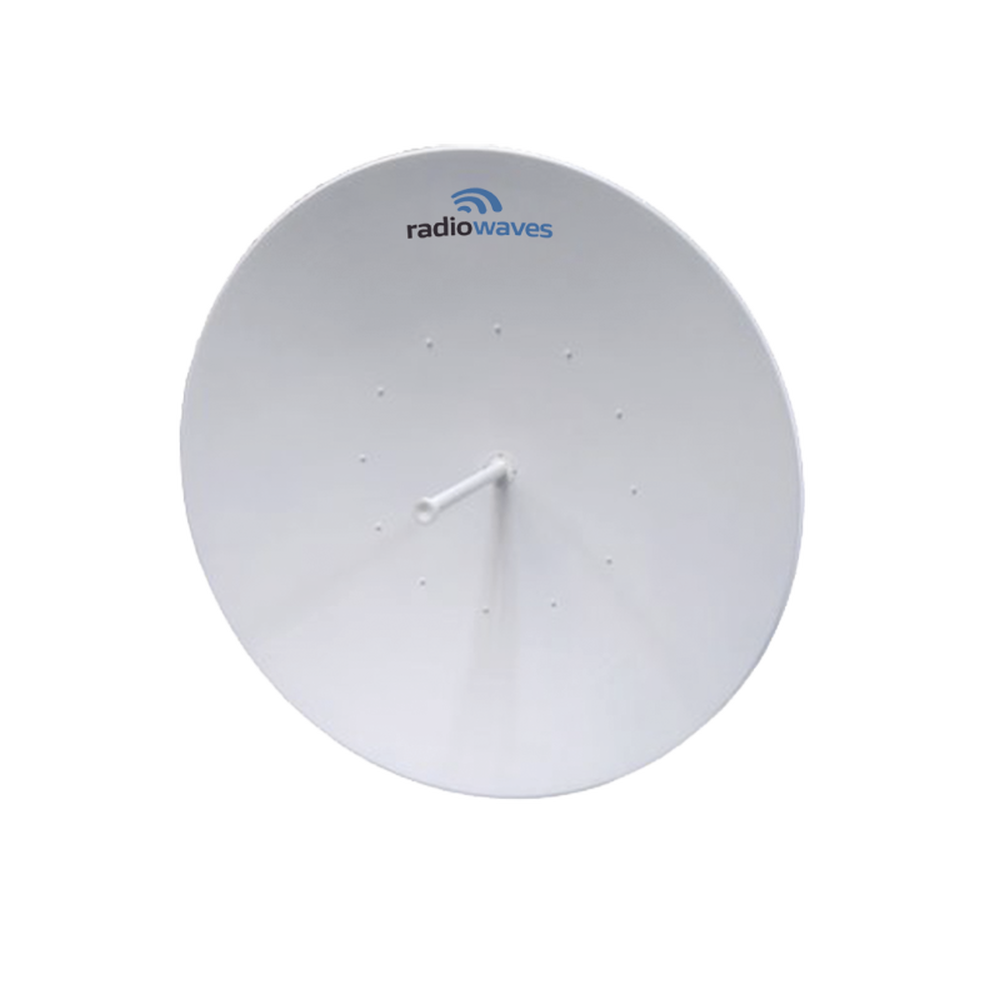

Directional Antenna, Dimensions (6 ft), 5.25-5.85 GHz, 2 N-Female Connectors, 38 dBi Gain, Mounting Included

Directional Antenna, Dimensions (6 ft), 5.25-5.85 GHz, 2 N-Female Connectors, 38 dBi Gain, Mounting Included

Carrier-Class Professional Satellite Dishes

Electrical Specifications

Measurement: 1.8 m (6 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 5.25 – 5.85 GHz.

Horizontal/Vertical Beamwidth: 2.1°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 46 dB.

Low frequency gain: 37.4 dBi.

Mid-frequency gain: 37.9 dBi.

High frequency gain: 38.4 dBi.

VSWR: 1.5:1

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Elevation fine adjustment: ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 42.8 kg (95 lbs) / 56.3 kg (125 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports radome model RD6 not included.

Shipping Information

Dimensions: 195 (length) x 501 (width) x 203 (height) cm

/ 77 (length) x 20 (width) x 80 (height) in

Packaging: Wooden box.

Dual Polarization., Weatherproof., Pre-assembled antennas for easy installation., High-performance Carrier-Class antennas
