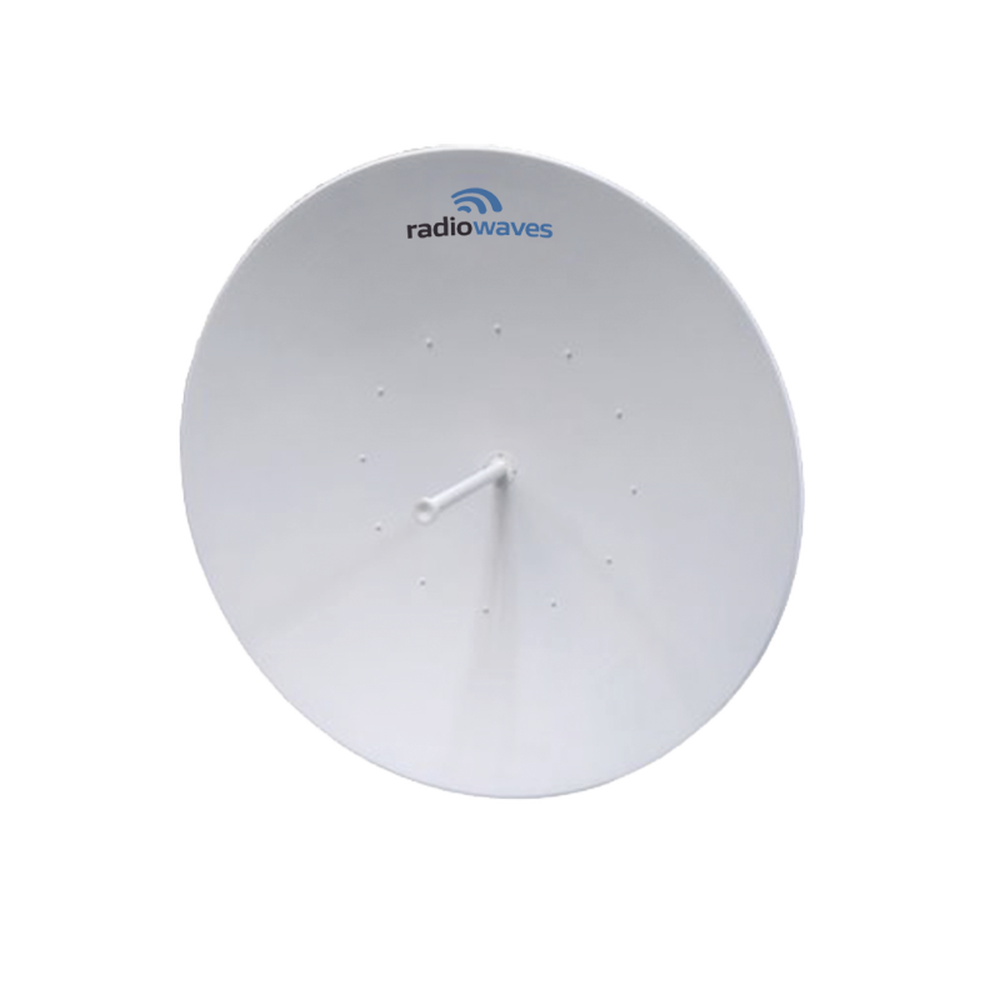

Directional Antenna, Dimensions (8 ft), 5.25-5.85 GHz, 41 dBi Gain, 2 N-Female Connectors, Mounting Included

Directional Antenna, Dimensions (8 ft), 5.25-5.85 GHz, 41 dBi Gain, 2 N-Female Connectors, Mounting Included

Electrical Specifications

Measurement: 2.4 m (8 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 5.25 – 5.85 GHz.

Horizontal/vertical beamwidth: 1.6°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 52 dB.

Low frequency gain: 40.4 dBi.

Mid-frequency gain: 40.9 dBi.

High frequency gain: 41.4 dBi.

VSWR: 1.5:1

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±5°.

Fine adjustment of elevation: ±5 °.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 74.3 kg (165 lbs) / 113.4 kg (250 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports radome model RD8 'not included'.

Shipping Information

Dimensions: 259 (length) x 152 (width) x 231 (height) cm

/ 102 (length) x 60 (width) x 91 (height) in

Packaging: Wooden box.

Dual Polarization., Pre-assembled antennas for easy installation, Withstand all types of weather.
