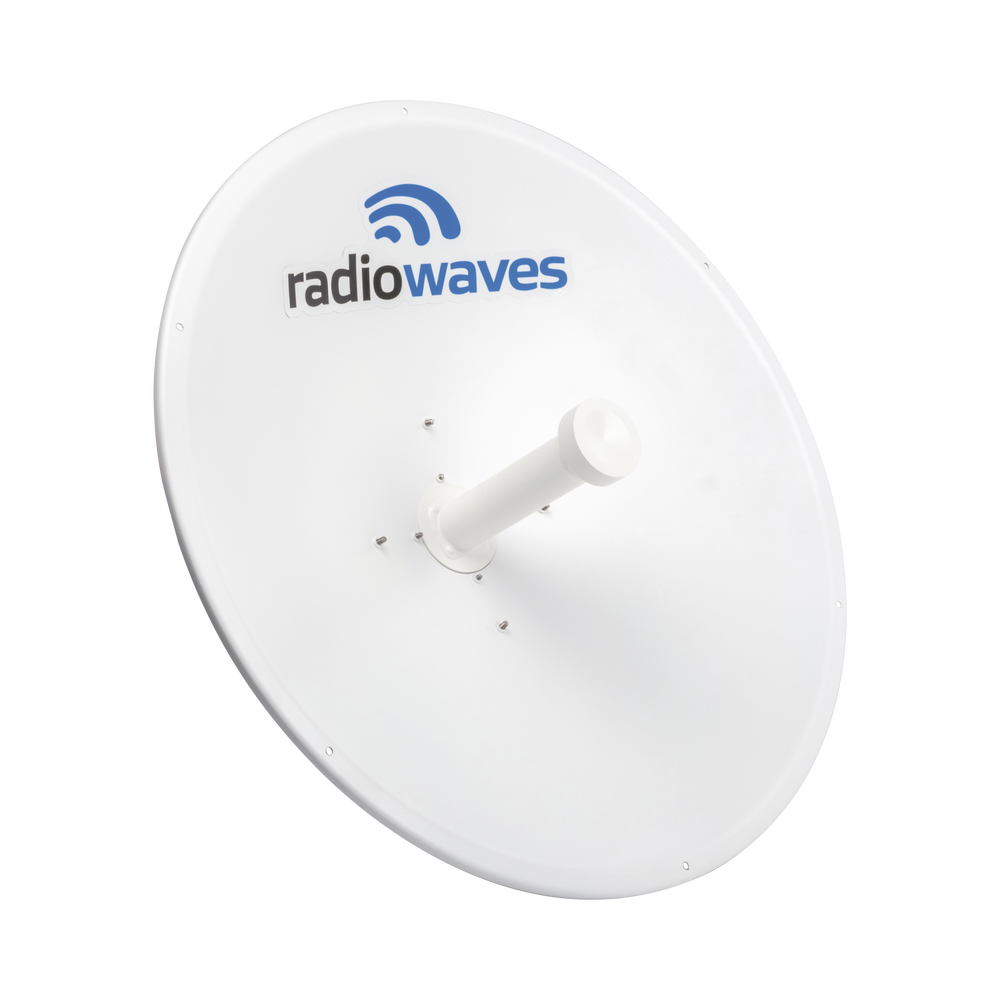

High Performance Directional Antenna, Dimensions (2 ft), 29 dBi Gain, 5.9-6.4 GHz, N-Female Connectors, Mounting Included

High Performance Directional Antenna, Dimensions (2 ft), 29 dBi Gain, 5.9-6.4 GHz, N-Female Connectors, Mounting Included

Carrier-Class Professional Satellite Dishes

General Characteristics

Electrical Specifications

Measurement : 0.6 m (2 ft).
Polarization : Double.

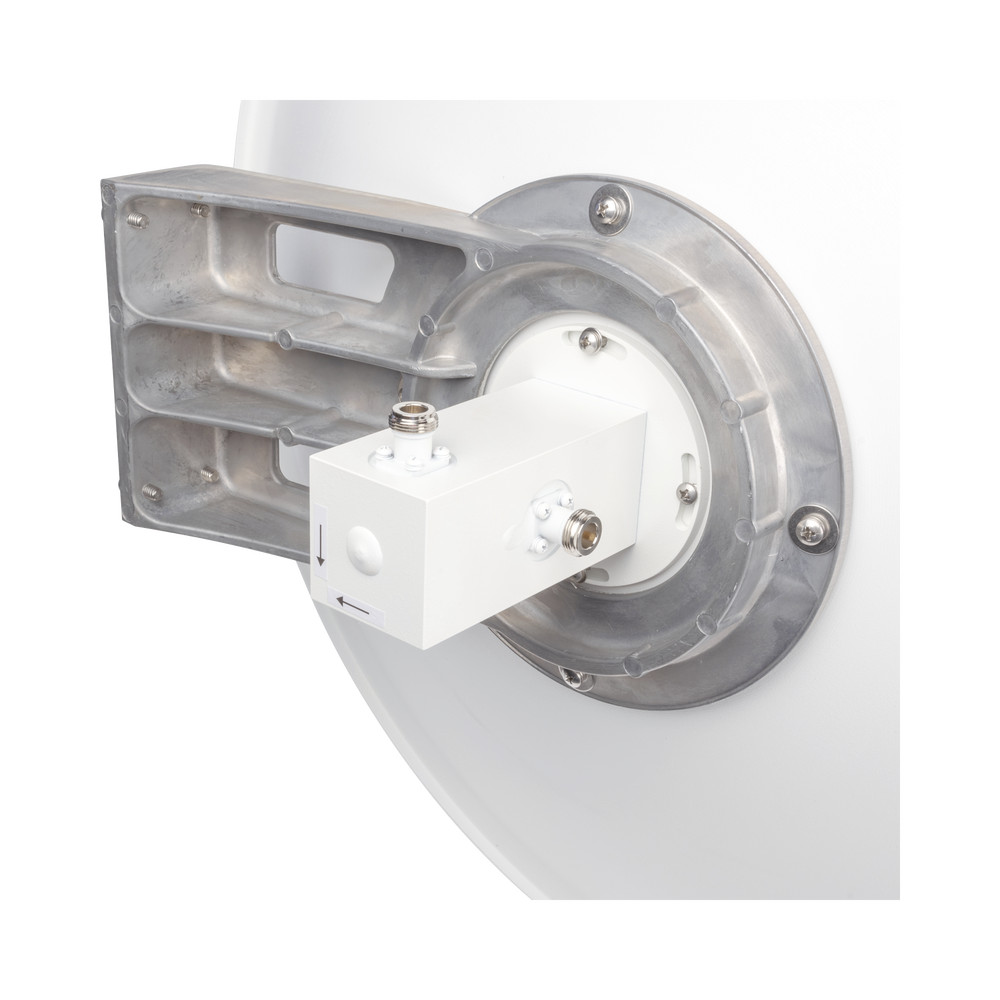

Connectors : N-Female (x2).
Frequency: 5.925 – 6.425 GHz.
Horizontal/vertical beamwidth : 6.2°.
Cross-polarization discrimination : 30 dB.
Front to Back Ratio (F/B ): 38 dB.
Low frequency gain : 28.5 dBi.
Mid-frequency gain: 29 dBi.
High frequency gain: 29.5 dBi.
VSWR : 1.5:1
Return loss : -14 dB.

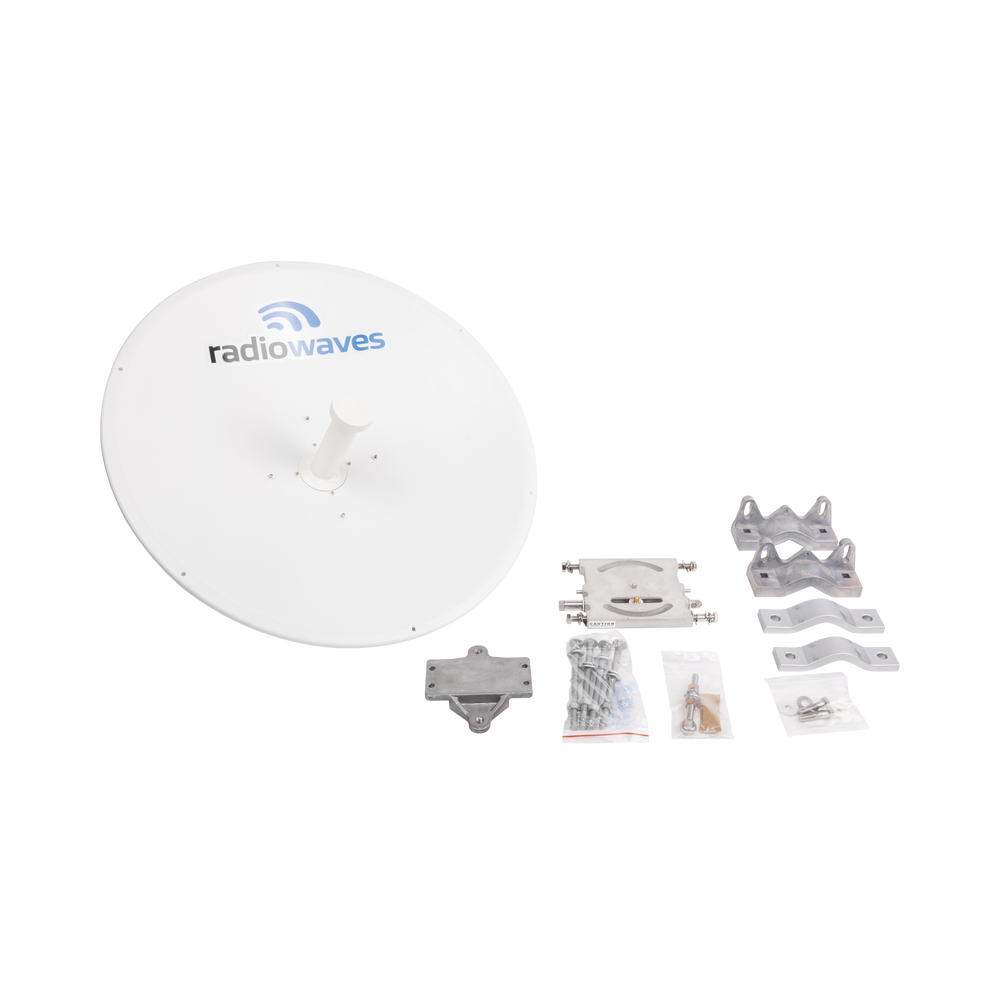

Mechanical Specifications

Azimuth fine adjustment : ±10°.
Elevation fine adjustment: ±30°.
Minimum mounting tube diameter : 5.08 cm (2 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight : 9.9 kg (22 lbs) / 11.7 kg (26 lbs) with radome.
Operational wind speed: 145 km/h (90 mph).
Operating temperature range : -40 to 60 °C.
Supports radome model RD2 not included.

*7-year warranty

Shipping Information

Dimensions: 71 (length) x 20 (width) x 71 (height) cm
/ 28 (length) x 8 (width) x 28 (height) in
Packaging: Cardboard box.
