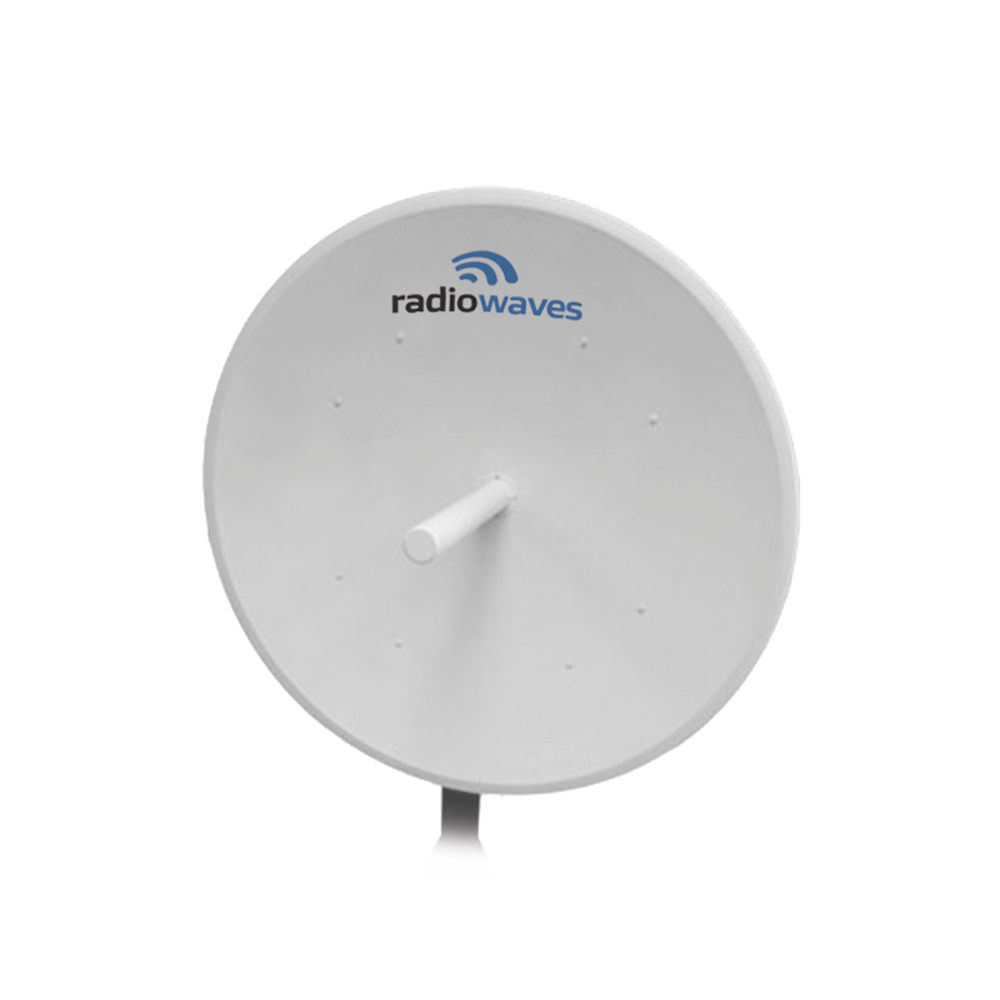

Directional Antenna, Dimensions (4 ft), 5.925-6.425 GHz, 2 N-Female Connectors, 36 dBi Gain, Mounting Included

Directional Antenna, Dimensions (4 ft), 5.925-6.425 GHz, 2 N-Female Connectors, 36 dBi Gain, Mounting Included

Carrier-Class Professional Satellite Dishes

Electrical Specifications

Measurement: 1.2 m (4 ft).

Polarization: Double.

Connectors : N-Female (x2).

Frequency : 5.925 - 6.425 GHz.

Horizontal/Vertical Beamwidth: 2.7°.

Cross-polarization discrimination: 28 dB.

Front to Back Ratio (F/B) : 42 dB.

Low frequency gain : 35.4 dBi.

Mid-frequency gain: 35.9 dBi.

High frequency gain : 36.4 dBi.

VSWR : 1.37:1

Return loss : -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment : ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter : 11.4 cm (4.5 in).

Maximum mounting tube diameter : 11.4 cm (4.5 in).

Net weight: 27 kg (60 lbs) / 36 kg (80 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range : -40 to 60 °C.

Supports radome model RD4 not included.

*7-year warranty

Shipping Information

Dimensions: 150 (length) x 48 (width) x 152 (height) cm

/ 59 (length) x 19 (width) x 60 (height) in

Packaging: Wooden box.

They withstand all types of weather., Weight 27 kg (60 lbs) / 36 kg (80 lbs) with radome., Double Polarization.
