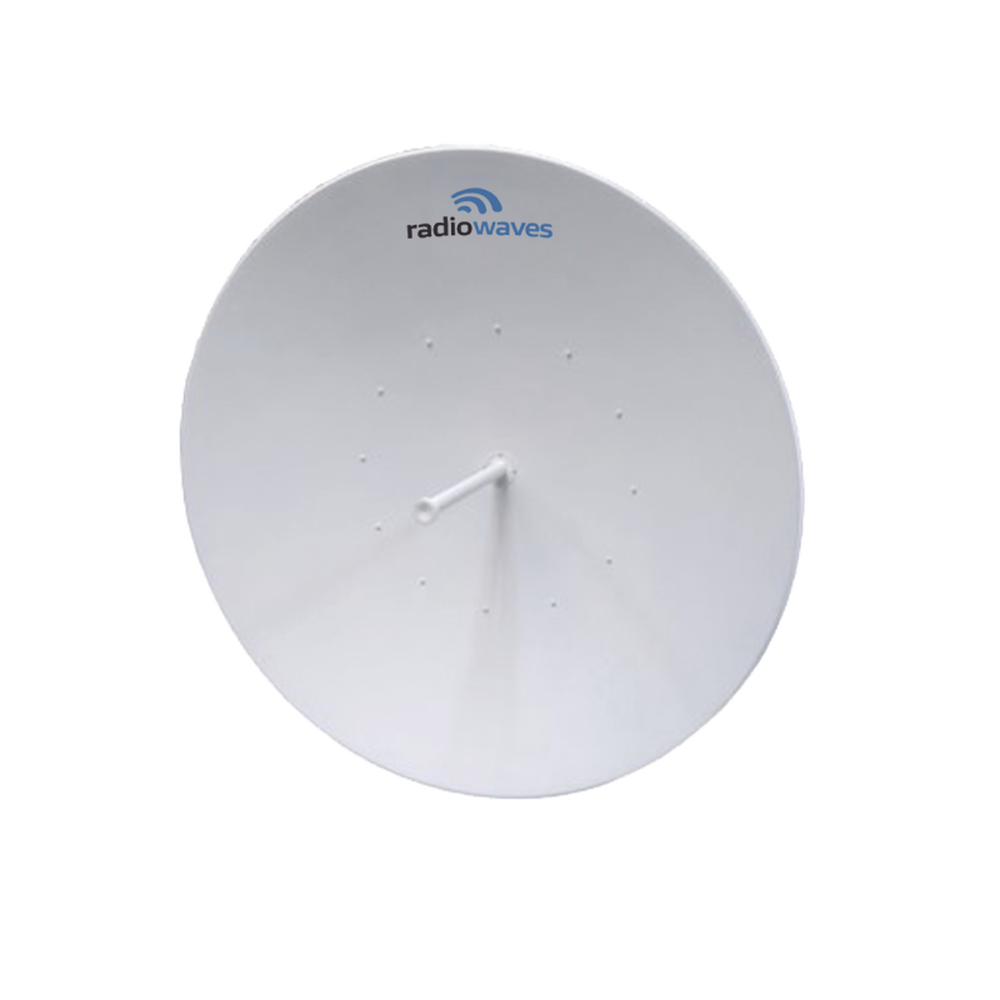

Directional Antenna, Dimensions (6 ft), Gain 39 dBi, 5.925-6.425 GHz, 2 N-Female Connectors, Mounting included.

Directional Antenna, Dimensions (6 ft), Gain 39 dBi, 5.925-6.425 GHz, 2 N-Female Connectors, Mounting included.

Electrical Specifications

Measurement: 1.8 m (6 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 5.925-6.425 GHz.

Horizontal/vertical beamwidth: 1.9°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 46 dB.

Low frequency gain: 38.4 dBi.

Mid-frequency gain: 38.9 dBi.

High frequency gain: 39.1 dBi.

VSWR: 1.37:1

Return loss: -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 42.8 kg (95 lbs) / 56.3 kg (125 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports radome model RD6 not included.

*7-year warranty

Shipping Information

Dimensions: 195 (length) x 501 (width) x 203 (height) cm

/ 77 (length) x 20 (width) x 80 (height) in

Packaging: Wooden box.

Weatherproof, Dual Polarization, High selectivity for interference mitigation, Pre-assembled antennas for easy installation, Rugged mount for pinpoint alignment
