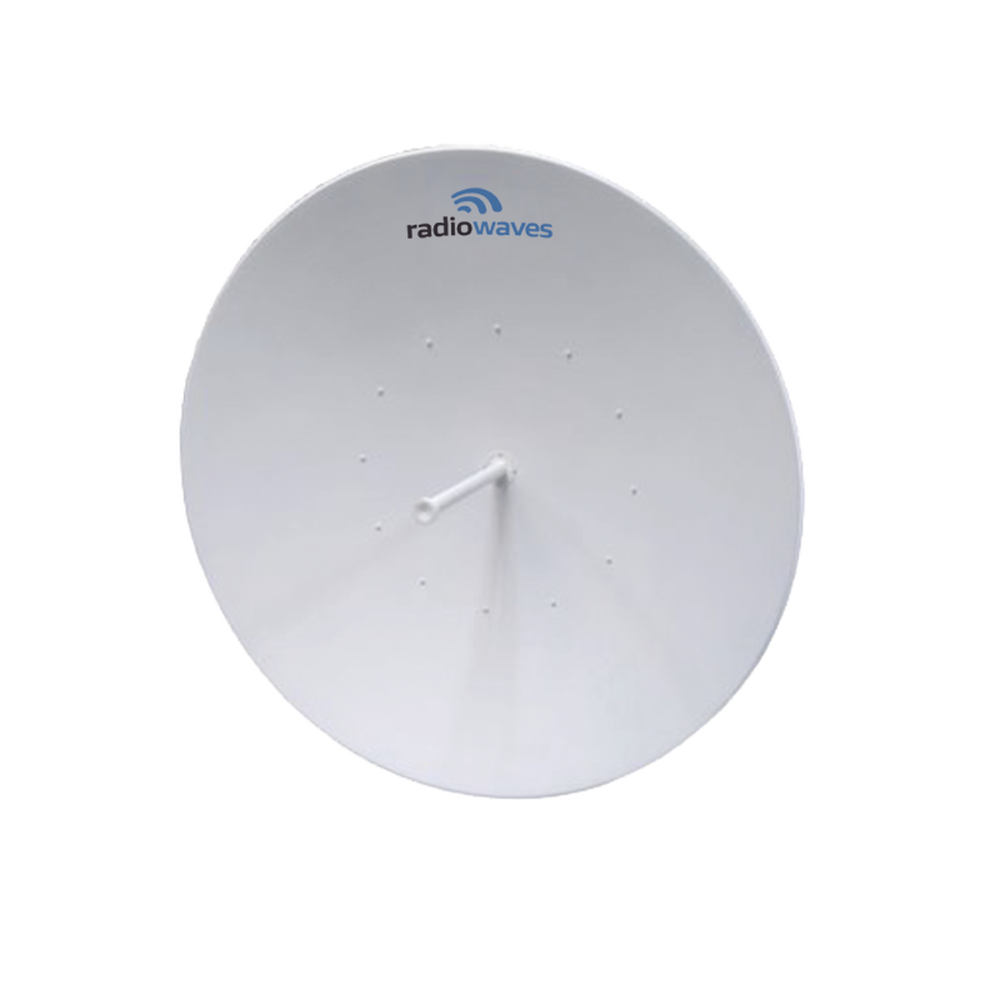

Professional 8ft Antenna, 7-Year Warranty, 5.925-6.425 GHz, Weatherproof

Professional 8ft Antenna, 7-Year Warranty, 5.925-6.425 GHz, Weatherproof

Electrical Specifications

Measurement : 2.4 m (8 ft).

Polarization: Double.

Connectors : N-Female (x2).

Frequency: 5.925 - 6.425 GHz.

Horizontal/vertical beamwidth l: 1.5 °.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 48 dB.

Low frequency gain: 41.5 dBi.

Mid-frequency gain: 41.9 dBi.

High frequency gain: 42.3 dBi.

VSWR : 1.37:1

Return loss : -16.1 dB.

Mechanical Specifications

Azimuth fine-tuning t: ±5°.

Fine adjustment of elevation : ±5 °.

Minimum mounting tube diameter : 11.4 cm (4.5 in).

Maximum mounting tube diameter : 11.4 cm (4.5 in).

Net weight : 74.3 kg (165 lbs) / 113.4 kg (250 lbs) with radome.

Operational wind speed : 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports radome model RD8 not included.

*7-year warranty

Shipping Information

Dimensions: 259 (length) x 152 (width) x 231 (height) cm

/ 102 (length) x 60 (width) x 91 (height) in

Packaging: Wooden box.
