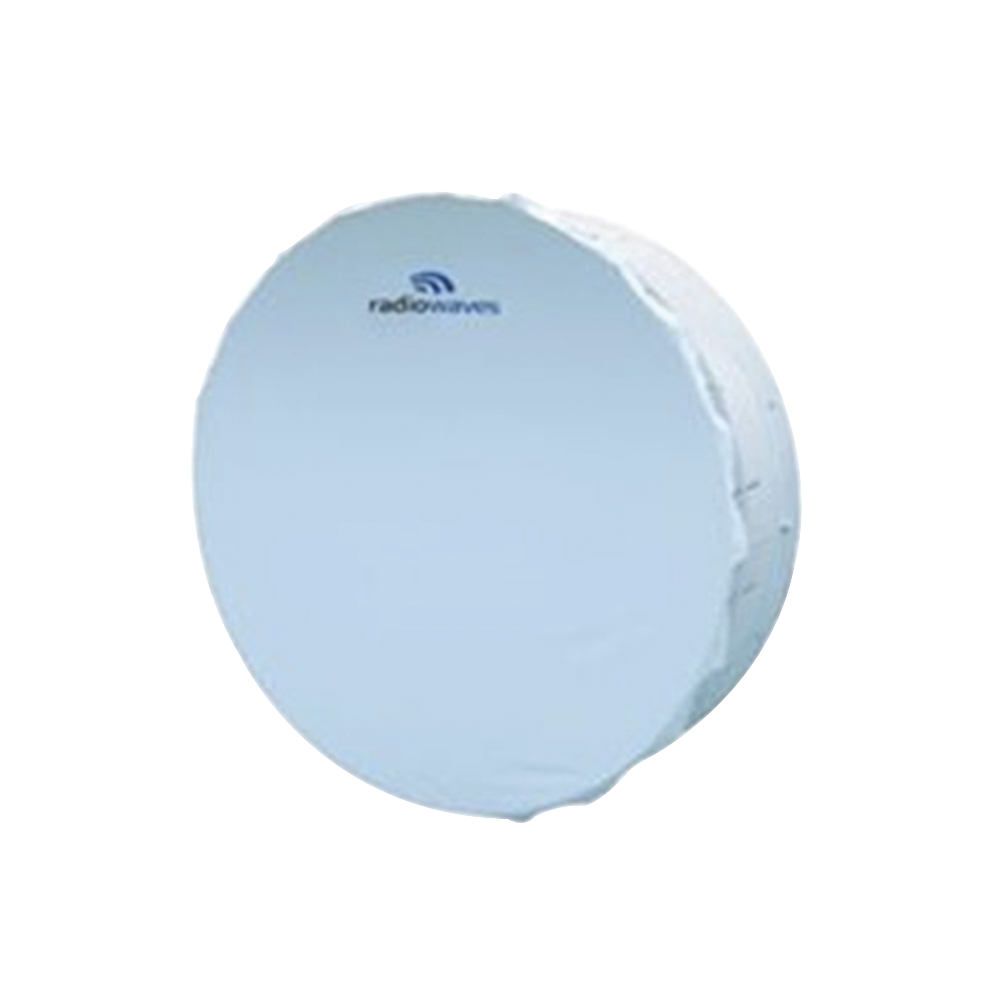

Directional Antenna, Dimensions (6 ft), 2 N-Female Connectors, 5.925 - 6.425 GHz, 39 dBi Gain, Radome and Mount Included

Directional Antenna, Dimensions (6 ft), 2 N-Female Connectors, 5.925 - 6.425 GHz, 39 dBi Gain, Radome and Mount Included

Electrical Specifications

Measurement: 1.8 m (6 ft).
Polarization: Double.
Connectors: N-Female (x2).
Frequency: 5.925 - 6.425 GHz.
Horizontal/vertical beamwidth: 1.9°
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 62 dB.
Low frequency gain: 38.2 dBi.
Mid-frequency gain: 38.7 dBi.
High frequency gain: 39 dBi.
VSWR: 1.37:1
Return loss: -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Fine adjustment of elevation: ±10°.
Minimum mounting tube diameter: 11.4 cm (4.5 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 113 kg (251 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*7-year warranty

Shipping Information

Dimensions: 195 (length) x 89 (width) x 203 (height) cm
/ 77 (length) x 35 (width) x 80 (height) in
Packaging: Wooden box.

Double Polarization., Weight 113 kg, Withstands all types of weather.
