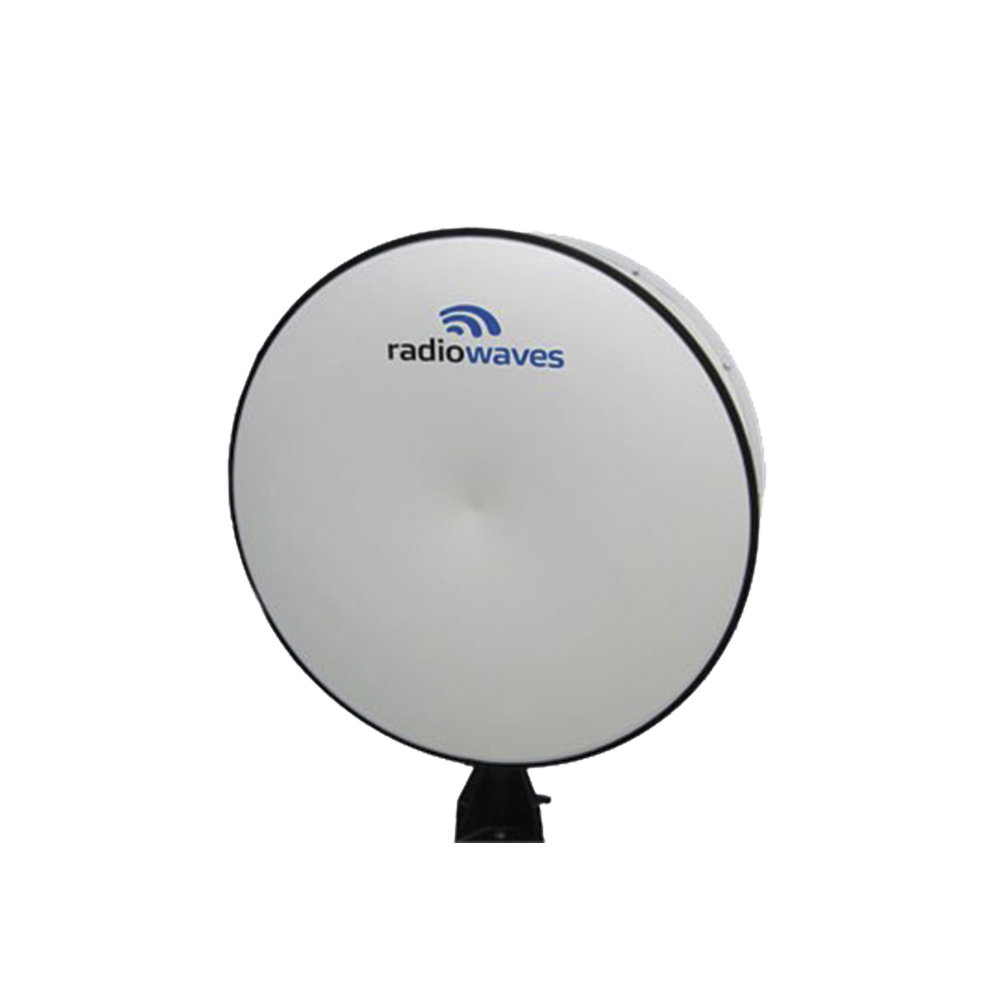

Directional Antenna, Dimensions (4 ft), Gain 34 dBi, 5.25 - 5.85 GHz, 2 N-Female Connectors, Radome and mounting included

Directional Antenna, Dimensions (4 ft), Gain 34 dBi, 5.25 - 5.85 GHz, 2 N-Female Connectors, Radome and mounting included

Characteristics

Measurement: 1.2 m (4 ft).

Polarization: Double.

Connectors : N-Female (x2).

Frequency : 5.25 – 5.85 GHz.

Horizontal/vertical beamwidth: 3°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 49 dB.

Low frequency gain: 34.2 dBi.

Mid-frequency gain : 34.7 dBi.

High frequency gain: 34.7 dBi.

VSWR : 1.5:1

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation : ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter : 11.4 cm (4.5 in).

Net Weight: 38.3 kg (85 lbs).

Operational wind speed : 145 km/h (90 mph).

Operating temperature range : -40 to 60 °C.

Radome included.

*7-year warranty

Shipping Information

Dimensions: 180 (length) x 89 (width) x 152 (height) cm

/ 59 (length) x 35 (width) x 60 (height) in

Packaging: Wooden box.

High-performance Carrier-Class antennas., Radome included for high isolation., Pre-assembled antennas for easy installation., High attenuation behind the dish to prevent signal loss.
