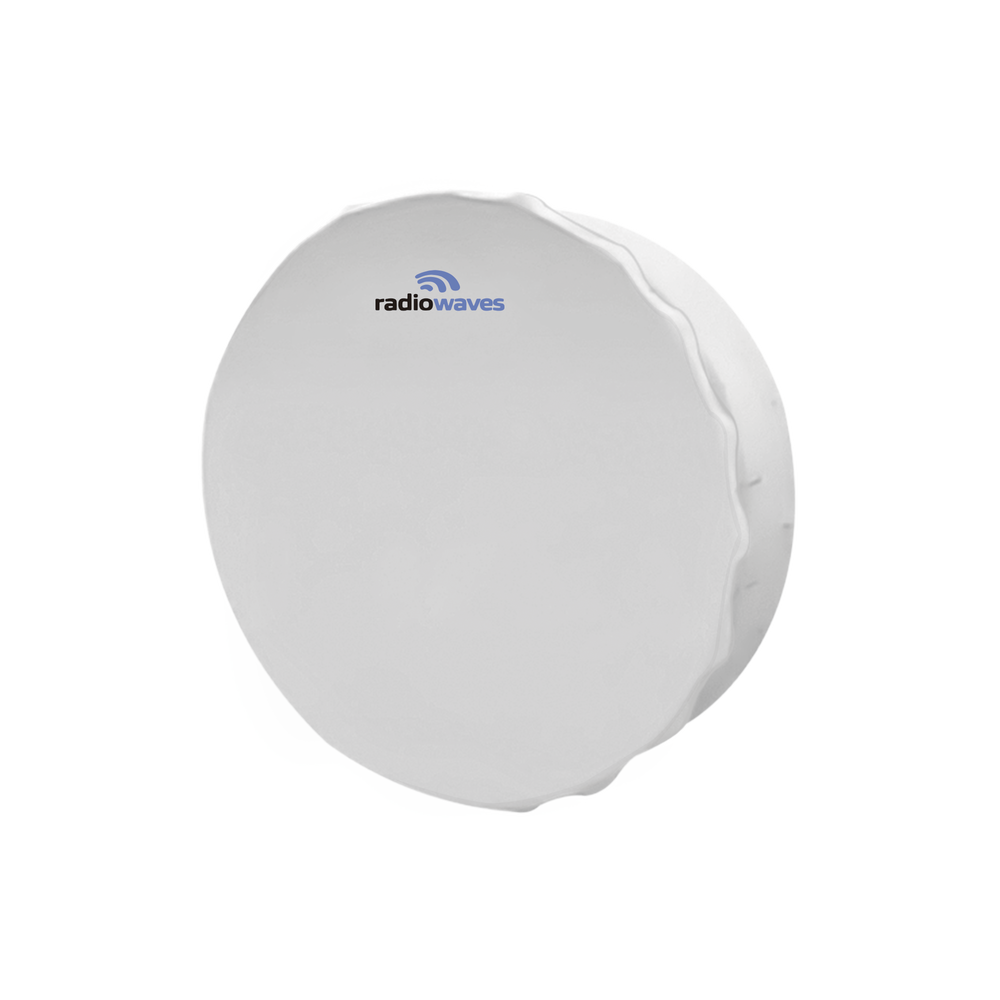

Directional Antenna, Dimensions (6 ft), 5.25-5.85 GHz, 38 dBi Gain, 2 N-Female Connectors, Radome and Mount Included.

Directional Antenna, Dimensions (6 ft), 5.25-5.85 GHz, 38 dBi Gain, 2 N-Female Connectors, Radome and Mount Included.

Electrical Specifications

• Measurement: 1.8 m (6 ft).
• Polarization: Double.
• Connectors: N-Female (x2).
• Frequency: 5.25 – 5.85 GHz.
• Horizontal/vertical beamwidth: 2°.
• Cross-polarization discrimination: 30 dB.
• Front to Back Ratio (F/B): 52 dB.
• Low frequency gain: 37.2 dBi.
• Mid-frequency gain: 37.7 dBi.
• High frequency gain: 38.2 dBi.
• VSWR: 1.5:1
• Return loss: -14 dB.

Mechanical Specifications

• Azimuth fine adjustment: ±10°.
• Fine adjustment of elevation: ±25°.
• Minimum mounting tube diameter: 11.4 cm (4.5 in).
• Maximum mounting tube diameter: 11.4 cm (4.5 in).
• Net Weight: 113 kg (251 lbs).
• Operational wind speed: 145 km/h (90 mph).
• Operating temperature range: -40 to 60 °C.
• Radome included.

Shipping Information

Dimensions: 195 (length) x 89 (width) x 203 (height) cm

/ 77 (length) x 35 (width) x 80 (height) in

Packaging: Wooden box.

High-performance Carrier-Class antennas., Radome included, for high isolation., Pre-assembled antennas for easy installation., High attenuation behind the dish to prevent signal loss.
