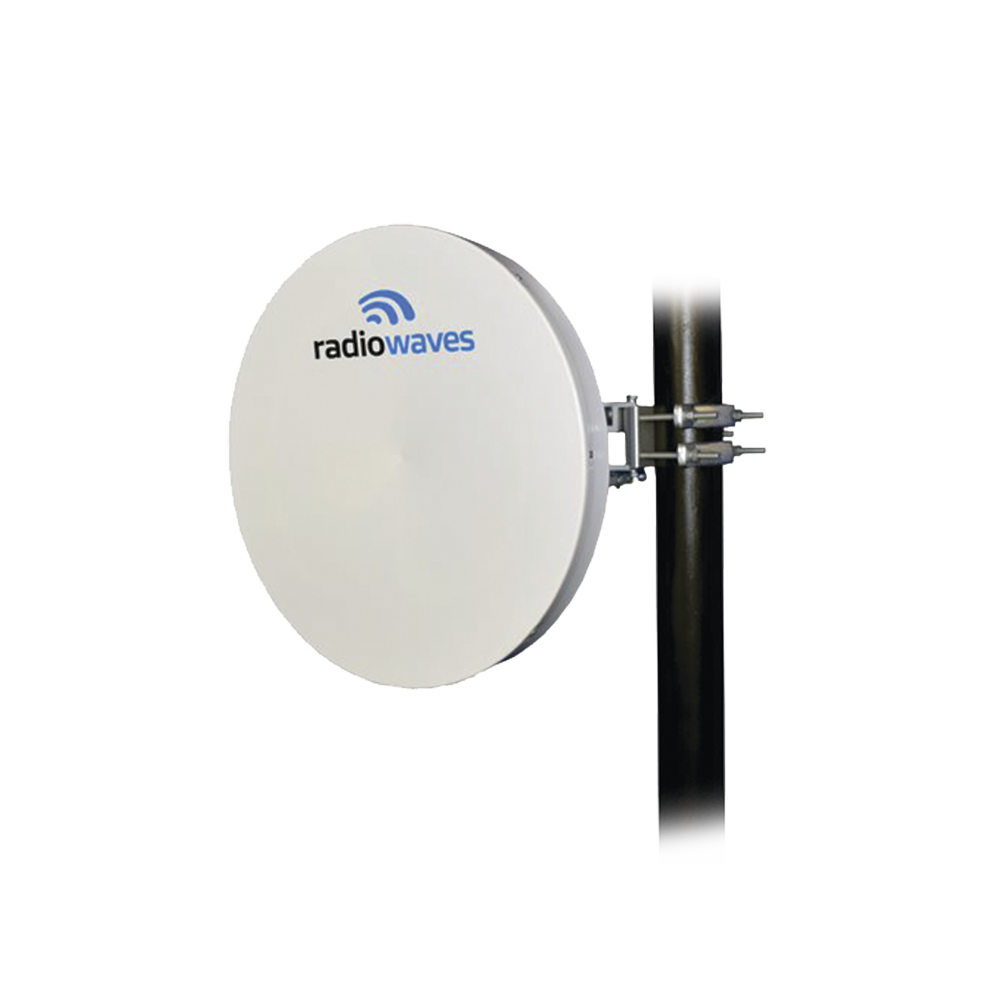

Directional Antenna, Dimensions (2ft), Direct to B11 Connector, 10.7-11.7 GHz, 32 dBi Gain, Mounting Included

Directional Antenna, Dimensions (2ft), Direct Connector to B11, 10.7-11.7 GHz, 32 dBi Gain, Mounting Included

Electrical Specifications

Measurement: 0.6 m (2 ft).
Polarization: Double Polarity.
Mimosa Networks direct circular connector to B11.
Frequency: 10.7 - 11.7 GHz.
Horizontal/vertical beamwidth: 3.3°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 61 dB.
Low frequency gain: 33.8 dBi.
Mid-frequency gain: 34.5 dBi.
High frequency gain: 35.2 dBi.
VSWR: N/A
Return loss: -17.7 dB.

Mechanical Specifications

Azimuth fine adjustment: ±15°.
Fine adjustment of elevation: ±15°.
Minimum mounting tube diameter: 5.1 cm (2 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 15.0 kg (33 lbs).
Operational wind speed: 201 km/h (125 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*3-year warranty

Shipping Information

Dimensions: 75 (length) x 75 (width) x 44 (height) cm
/ 29.5 (length) x 29.5 (width) x 17.5 (height) in
Packaging: Cardboard box.

Dual Polarization., Weatherproof., Weight 15.0 kg
