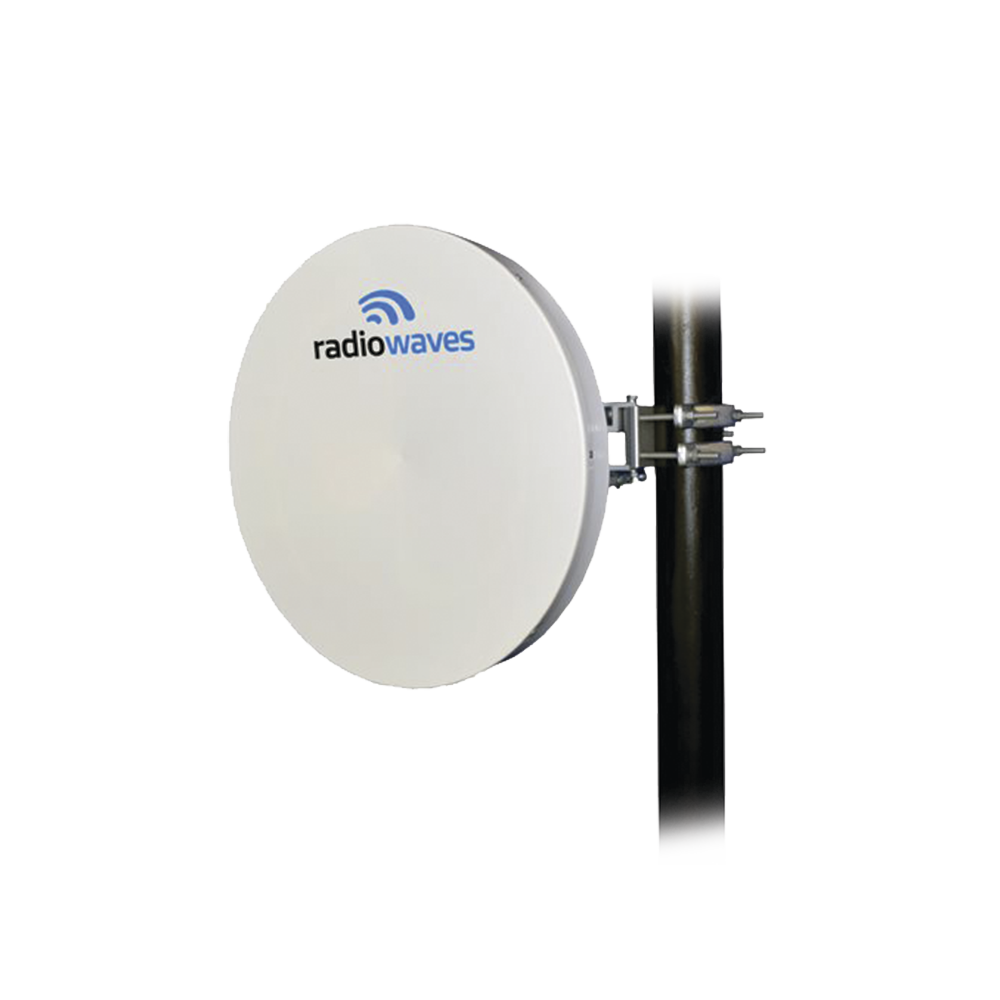

Directional Antenna, Dimensions (3 ft), Gain 38 dBi, 10.7-11.7 GHz, Mimosa B11 Direct Circular Connector, Mount and Radome included.

Directional Antenna, Dimensions (3 ft), Gain 38 dBi, 10.7-11.7 GHz, Mimosa B11 Direct Circular Connector, Mount and Radome included.

Carrier-Class Satellite Dishes


The Radiowaves MMSx-11v series of professional commercial-grade satellite dishes offers a complete line of high-performance Carrier-Class antennas for the Mimosa Networks B11 radio , designed to establish highly reliable and robust links. Available in licensed bands, with factory pre-assembly to optimize installation times, high-quality materials, and ultra-rugged mounts for fine adjustments in azimuth and elevation, they minimize recurring site maintenance while providing a 3-year warranty on maximum performance.

Some Features

-High-performance Carrier-Class antennas.
- Radome included.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for ease of installation.
-Super robust mount for precise alignment in azimuth and elevation.
-They withstand all types of weather.

Electrical Specifications

Measurement: 0.9 m (3 ft).
Polarization: Double Polarity.
Mimosa Networks direct circular connector to B11.
Frequency: 10.7 - 11.7 GHz.
Horizontal/Vertical Beamwidth: 2.1°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 63 dB.
Low frequency gain : 37.5 dBi.
Mid-frequency gain: 37.9 dBi.
High frequency gain: 38.2 dBi.


Mechanical Specifications

Azimuth fine adjustment: ±15°.
Fine adjustment of elevation: ±15°.
Operational wind speed: 201 km/h (125 mph).
Operating temperature range: -40 to 60 °C.
Radome included.



Shipping Information

Dimensions: 108 (length) x 108 (width) x 77 (height) cm
/ 42.5 (length) x 42.5 (width) x 30.3 (height) in
Packaging: Wooden box.

Weatherproof, Mimosa Networks direct circular connector to B11.
