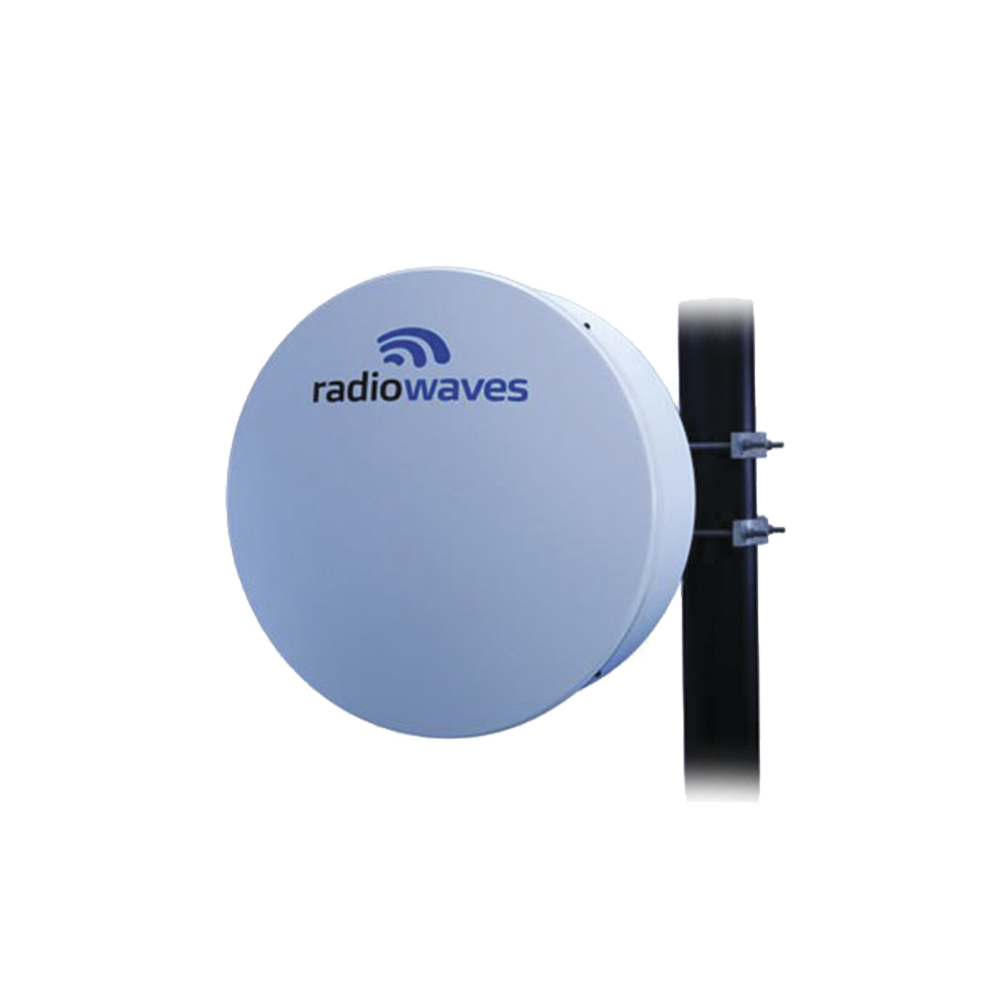

Directional Antenna, Dimensions (2 ft), 10.7-11.7 GHz, 2 N-Female Connectors, 34dBi Gain, Radome and Mount Included

Directional Antenna, Dimensions (2 ft), 10.7-11.7 GHz, 2 N-Female Connectors, 34dBi Gain, Radome and Mount Included

The HPDx-11Fx series of satellite dishes from Radiowaves offers a complete line of high-performance antennas designed to establish highly reliable links. Available in both open and licensed bands, they are factory-preassembled to optimize installation times, made of high-quality materials, and feature robust mounts to prevent errors and minimize recurring maintenance. They also come with a 7-year performance warranty.

Some Features

-High-performance Carrier-Class antennas.
-Radome included.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for ease of installation.
-Super robust mount for precise alignment in azimuth and elevation.
-7-year warranty against manufacturing defects.
-They withstand all types of weather.

Electrical Specifications

Measurement: 0.6 m (2 ft).
Polarization: Double.
Connectors: N-Female (x2).
Frequency: 10.7 - 11.7 GHz.
Horizontal/vertical beamwidth: 3.4°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 60 dB.
Low frequency gain: 34 dBi.
Mid-frequency gain: 34.3 dBi.
High frequency gain: 34.4 dBi.
VSWR: 1.37:1
Return loss: -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Elevation fine adjustment: ±30°.
Minimum mounting tube diameter: 5.08 cm (2 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 12.3 kg (27 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.

*7-year warranty

Shipping Information

Dimensions: 79 (length) x 79 (width) x 64 (height) cm
/ 31 (length) x 31 (width) x 25 (height) in
Packaging: Cardboard box.

Weatherproof, Dual Polarization, Weight 12.3 kg
