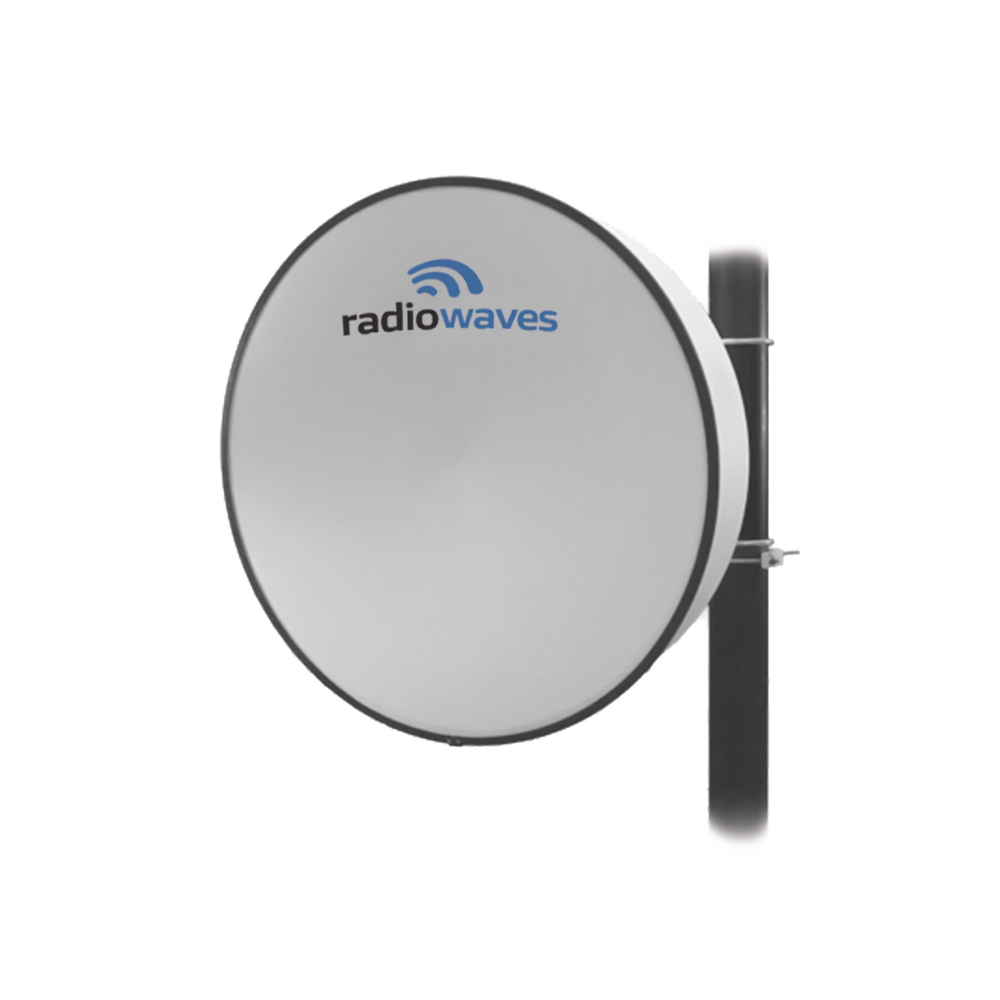

Antena Direccional, Dimensiones (3 ft), Ganancia 39 dBi, 10.7-11.7 GHz, 2 Conectores N-hembra, Radomo y montaje incluido

Directional Antenna, Dimensions (3 ft), Gain 39 dBi, 10.7-11.7 GHz, 2 N-Female Connectors, Radome and Mount Included

Sale price  $9,839,288 Regular price  $13,086,704
Skip to product information
Antena Direccional, Dimensiones (3 ft), Ganancia 39 dBi, 10.7-11.7 GHz, 2 Conectores N-hembra, Radomo y montaje incluido

Directional Antenna, Dimensions (3 ft), Gain 39 dBi, 10.7-11.7 GHz, 2 N-Female Connectors, Radome and Mount Included

Sale price  $9,839,288 Regular price  $13,086,704
Shipping calculated at checkout.
Marca
RADIOWAVES
Referencia / SKU
HPD3-11FX
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Directional Antenna, Dimensions (3 ft), Gain 39 dBi, 10.7-11.7 GHz, 2 N-Female Connectors, Radome and Mount Included


The Radiowaves HPDx-11Fx series of professional satellite dishes offers a complete line of high-performance Carrier-Class antennas for the Ubiquiti Networks AF11x radio, designed to establish highly reliable and robust links. Available in licensed, factory-preassembled versions to optimize installation times, with high-quality materials and ultra-rugged mounts for azimuth and elevation adjustments, they minimize recurring site maintenance by providing a 7-year warranty on maximum performance.

Some Features

-High-performance Carrier-Class antennas.
-Radome included.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for ease of installation.
-Super robust mount for precise alignment in azimuth and elevation.
- 7-year warranty against manufacturing defects.
-They withstand all types of weather.


Measurement: 0.9 m (3 ft).
Polarization: Double.
Connectors: N-Female (x2).
Frequency: 10.7 - 11.7 GHz.
Horizontal/Vertical Beamwidth: 2.1°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 62 dB.
Low frequency gain: 38.1 dBi.
Mid-frequency gain: 38.5 dBi.
High frequency gain: 39 dBi.
VSWR: 1.37:1
Return loss: -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Fine adjustment of elevation: ±10°.
Minimum mounting tube diameter: 11.4 cm (4.5 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 12.3 kg (50 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*7-year warranty


Shipping Information

Dimensions: 119 (length) x 71 (width) x 122 (height) cm
/ 47 (length) x 28 (width) x 48 (height) in
Packaging: Wooden box.






    They withstand all types of weather., Weight 12.3 kg (50 lbs)., Double Polarization.
