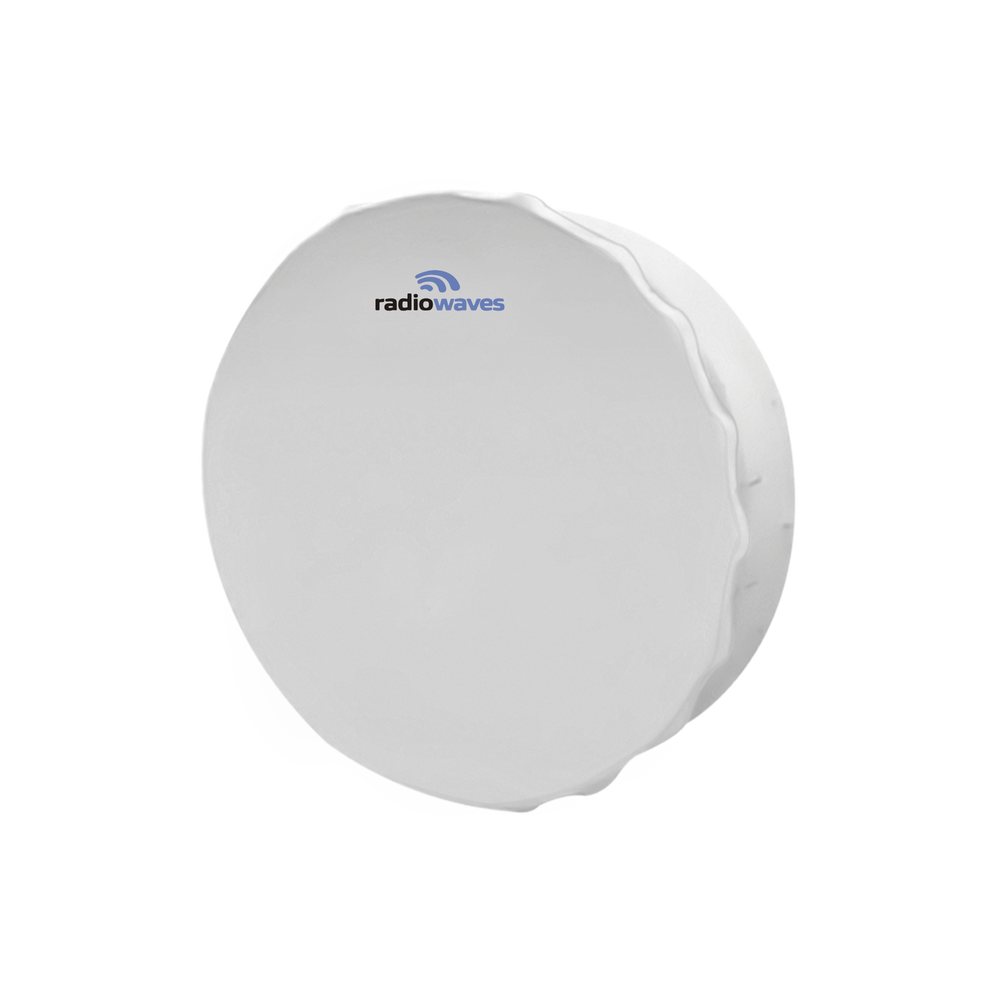

Directional Antenna, Dimensions (6 ft), Gain 43 dBi, 10.7-11.7 GHz, 2 N-female Connectors, Radome and mount included.

Directional Antenna, Dimensions (6 ft), Gain 43 dBi, 10.7-11.7 GHz, 2 N-female Connectors, Radome and mount included.

Carrier-Class Satellite Dishes


Electrical Specifications

Measurement: 1.8 m (6 ft).
Polarization: Double .
Connectors: N-Female (x2).
Frequency: 10.7 - 11.7 GHz.
Horizontal/vertical beamwidth: 1.1°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B) : 68 dB.
Low frequency gain: 42.9 dBi.
Mid-frequency gain: 43.2 dBi.
High frequency gain : 43.6 dBi.
VSWR: 1.37:1
Return loss : -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Fine adjustment of elevation : ±10°.
Minimum mounting tube diameter : 11.4 cm (4.5 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight : 113 kg (251 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*7-year warranty

Shipping Information

Dimensions: 195 (length) x 89 (width) x 203 (height) cm
/ 77 (length) x 35 (width) x 80 (height) in
Packaging: Wooden box.

Weatherproof., Dual Polarization., Weight 113 kg (251 lbs).
