Directional Antenna, Dimensions (2 ft), 10.7-11.7 GHz, Gain 34 dBi

Directional Antenna, Dimensions (2 ft), 10.7-11.7 GHz, Gain 34 dBi

Carrier-Class Satellite Dishes

MMSx-11 Series High Performance 10.7 – 11.7 GHz
Radiowaves Inc

The Radiowaves MMSx-11 series of professional satellite dishes offers a complete line of high-performance Carrier-Class antennas for the Mimosa Networks B11 radio , designed to establish highly reliable and robust links. Available in licensed bands, with factory pre-assembled to optimize installation times, high-quality materials and with ultra-rugged mounts for azimuth and elevation adjustments, they minimize recurring site maintenance by providing a 7-year warranty on maximum performance.

Some Features

-High-performance Carrier-Class antennas.
-Radome included.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for easy field installation.
-Super robust mount for precise alignment in azimuth and elevation.
-7-year warranty on maximum performance.
-They withstand all types of weather.

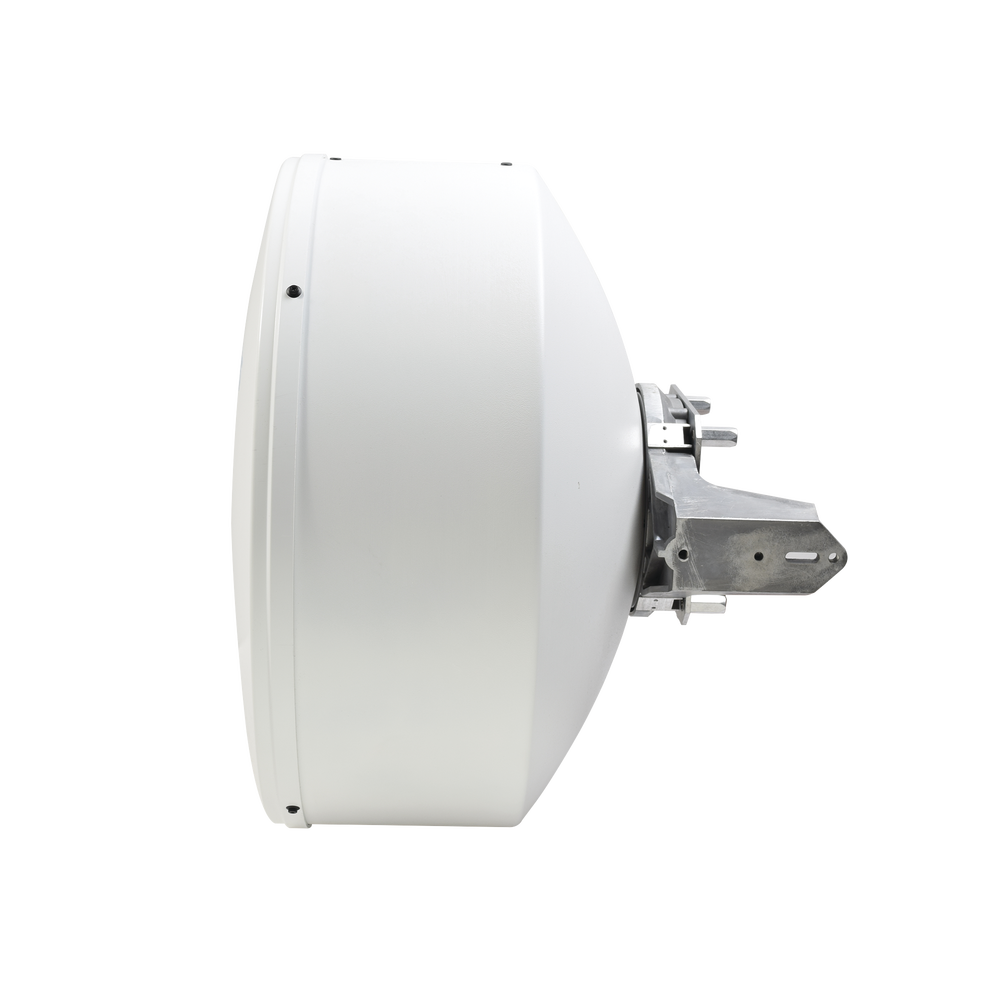

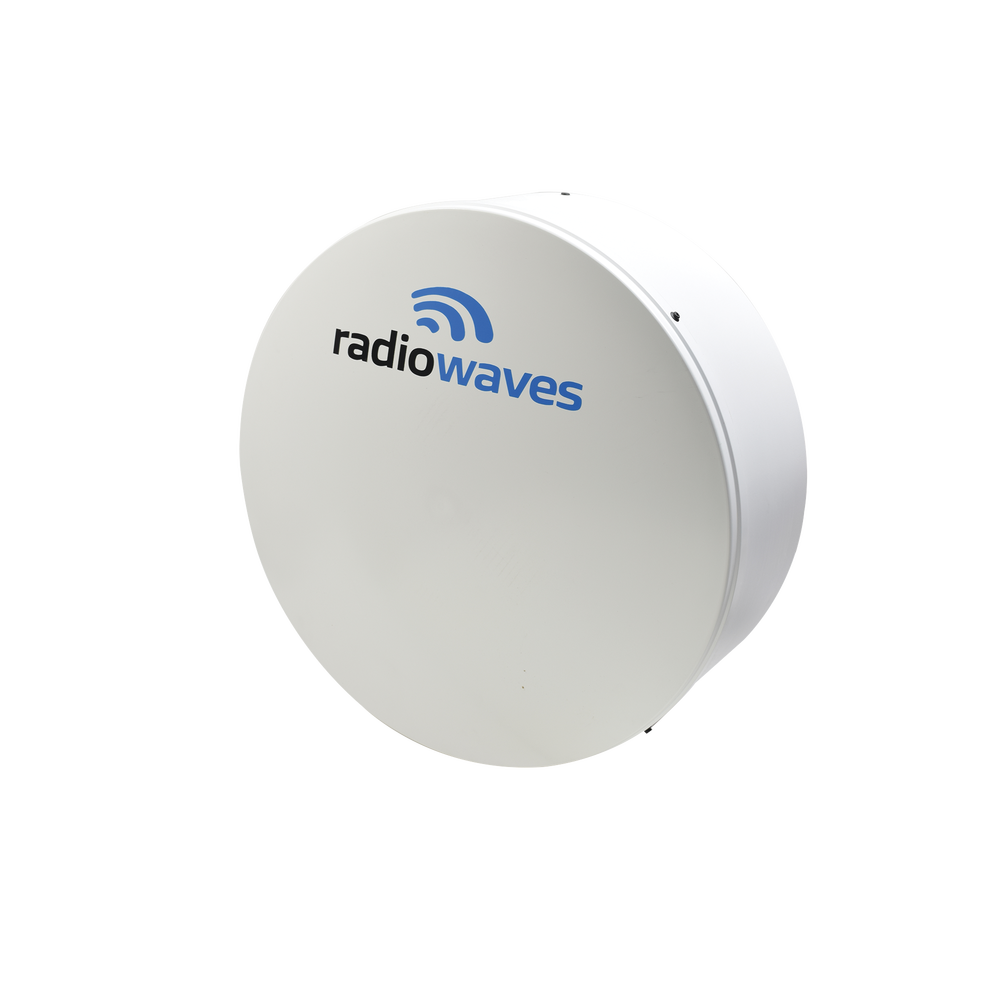

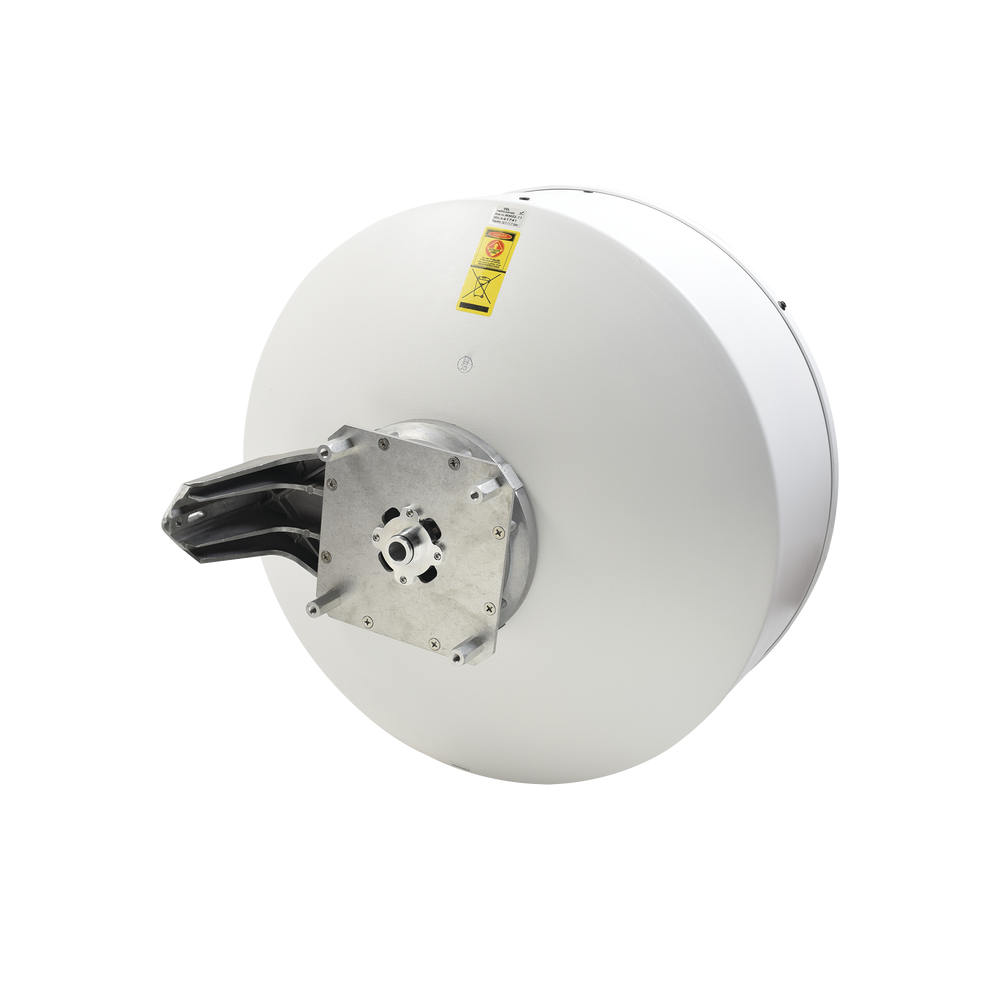

MMS2-11
High Performance Professional Antenna, 2ft, 7-Year Warranty for Maximum Performance, 10.7-11.7 GHz, Weatherproof.

Electrical Specifications

Measurement: 0.6 m (2 ft).
Polarization: Double Polarity.
Mimosa Networks direct circular connector to B11.
Frequency: 10.7 - 11.7 GHz.
Horizontal/vertical beamwidth: 3.4°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 60 dB.
Low frequency gain: 34.2 dBi.
Mid-frequency gain: 34.5 dBi.
High frequency gain: 34.8 dBi.
VSWR: 1.37:1
Return loss: -16.1 dB.

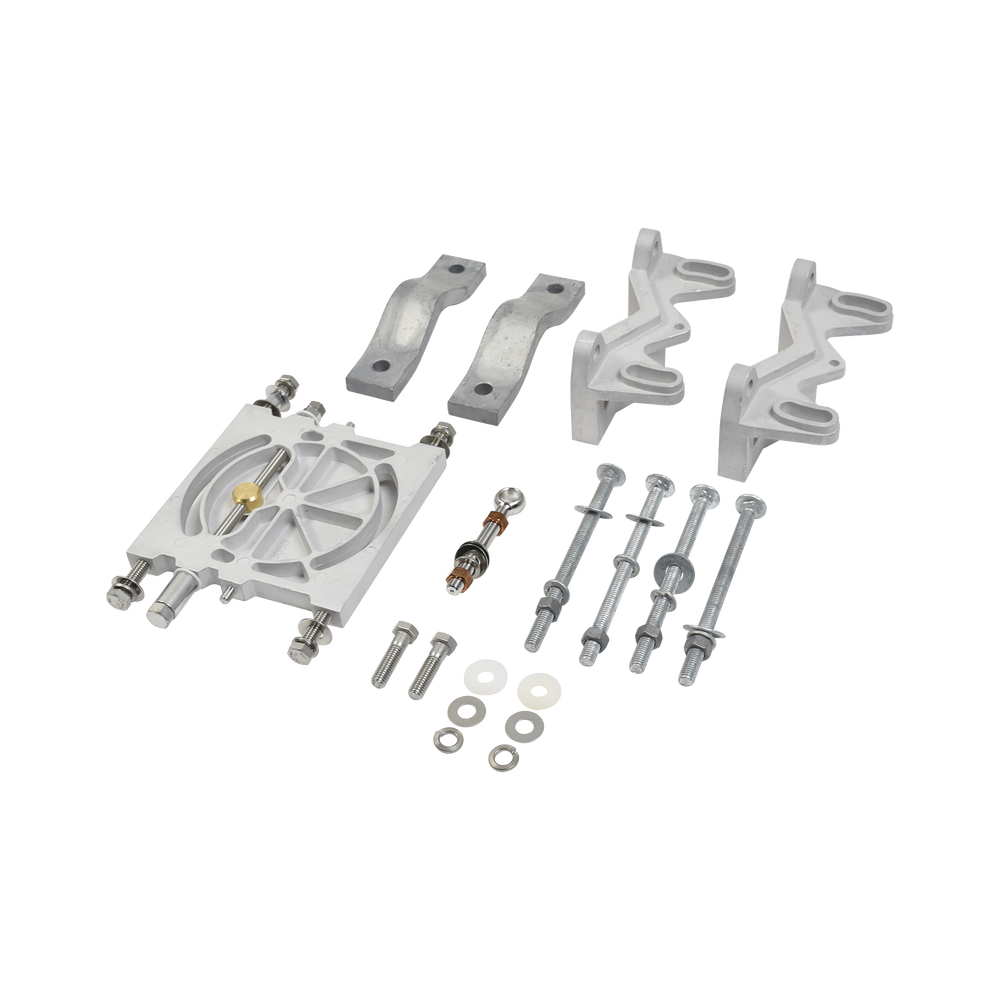

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Elevation fine adjustment: ±30°.
Minimum mounting tube diameter: 5.08 cm (2 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 12.3 kg (27 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*7-year warranty

Shipping Information

Dimensions: 79 (length) x 79 (width) x 64 (height) cm
/ 31 (length) x 31 (width) x 25 (height) in
Packaging: Cardboard box.

Waveguide, 7-Year Warranty, High Selectivity, Weather Resistant
