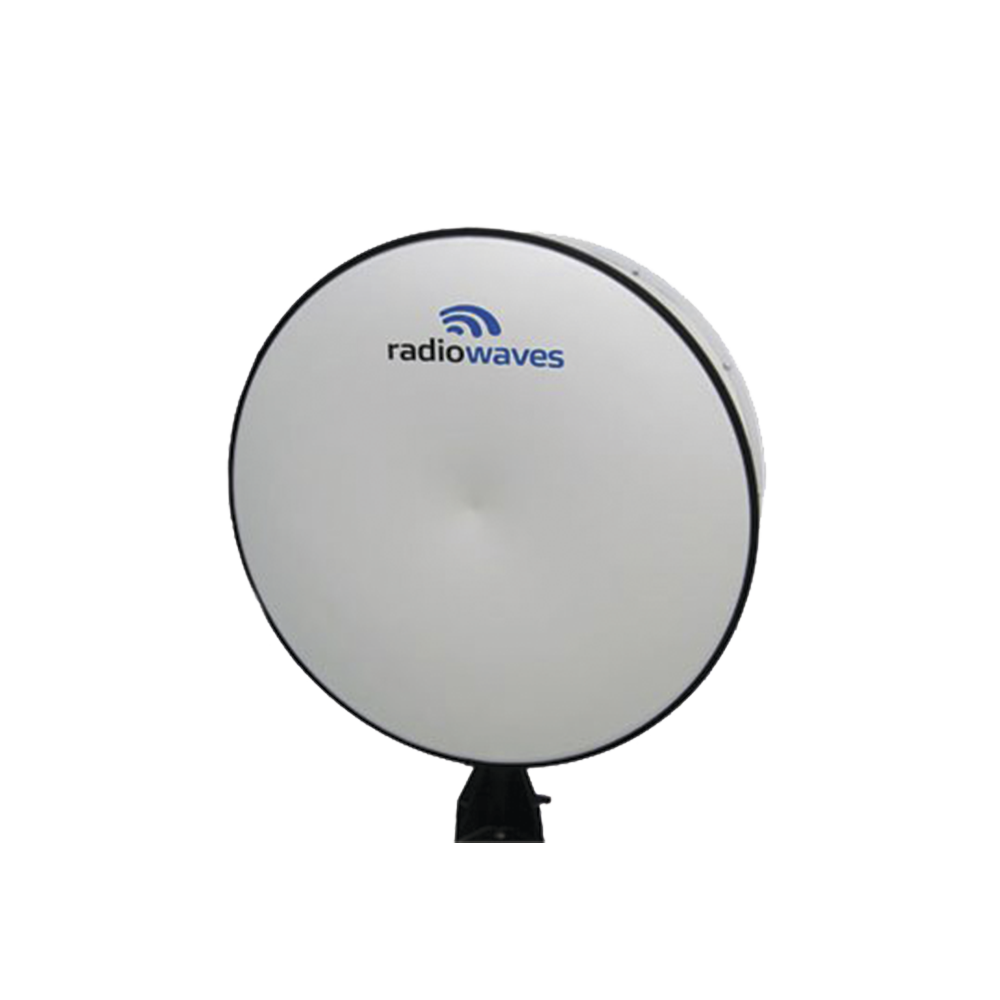

Directional antenna, Dimensions (4 ft), Gain 41 dBi, 10.7-11.7 GHz, Circular connector for mimosa B11 equipment, Mounting and radome already included.

Directional antenna, Dimensions (4 ft), Gain 41 dBi, 10.7-11.7 GHz, Circular connector for mimosa B11 equipment, Mounting and radome already included.

The Radiowaves MMSx-11 series of professional satellite dishes offers a complete line of high-performance Carrier-Class antennas for the Mimosa Networks B11 radio , designed to establish highly reliable and robust links. Available in licensed bands, with factory pre-assembled to optimize installation times, high-quality materials and with ultra-rugged mounts for azimuth and elevation adjustments, they minimize recurring site maintenance by providing a 7-year warranty on maximum performance.

Some Features

-High-performance Carrier-Class antennas.
-Radome included.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for easy field installation.
-Super robust mount for precise alignment in azimuth and elevation.
-7-year warranty on maximum performance.
-They withstand all types of weather.

Electrical Specifications

Measurement: 1.2 m (4 ft).
Polarization: Double Polarity.
Mimosa Networks direct circular connector to B11.
Frequency: 10.7 - 11.7 GHz.
Horizontal/vertical beamwidth: 1.7°
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 67 dB.
Low frequency gain: 40.6 dBi.
Mid-frequency gain: 41.0 dBi.
High frequency gain: 41.4 dBi.
VSWR: 1.37:1
Return loss: -16.1 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Fine adjustment of elevation: ±25°.
Minimum mounting tube diameter: 11.4 cm (4.5 in).
Maximum mounting tube diameter: 11.4 cm (4.5 in).
Net weight: 38.3 kg (85 lbs).
Operational wind speed: 145 km/h (90 mph).
Operating temperature range: -40 to 60 °C.
Radome included.

*7-year warranty

Shipping Information

Dimensions: 180 (length) x 89 (width) x 152 (height) cm
/ 59 (length) x 35 (width) x 60 (height) in
Packaging: Wooden box.

Weight 38.3 kg (85 lbs)., Dual Polarization., Withstands all types of weather.
