3000VA/2700W UPS / On-Line Double Conversion Topology / 220 Vac Input and Output / NEMA 5-30P Input Plug / Configurable LCD Display / Rack/Tower Format

3000VA/2700W UPS / On-Line Double Conversion Topology / 220 Vac Input and Output / NEMA 5-30P Input Plug / Configurable LCD Display / Rack/Tower Format

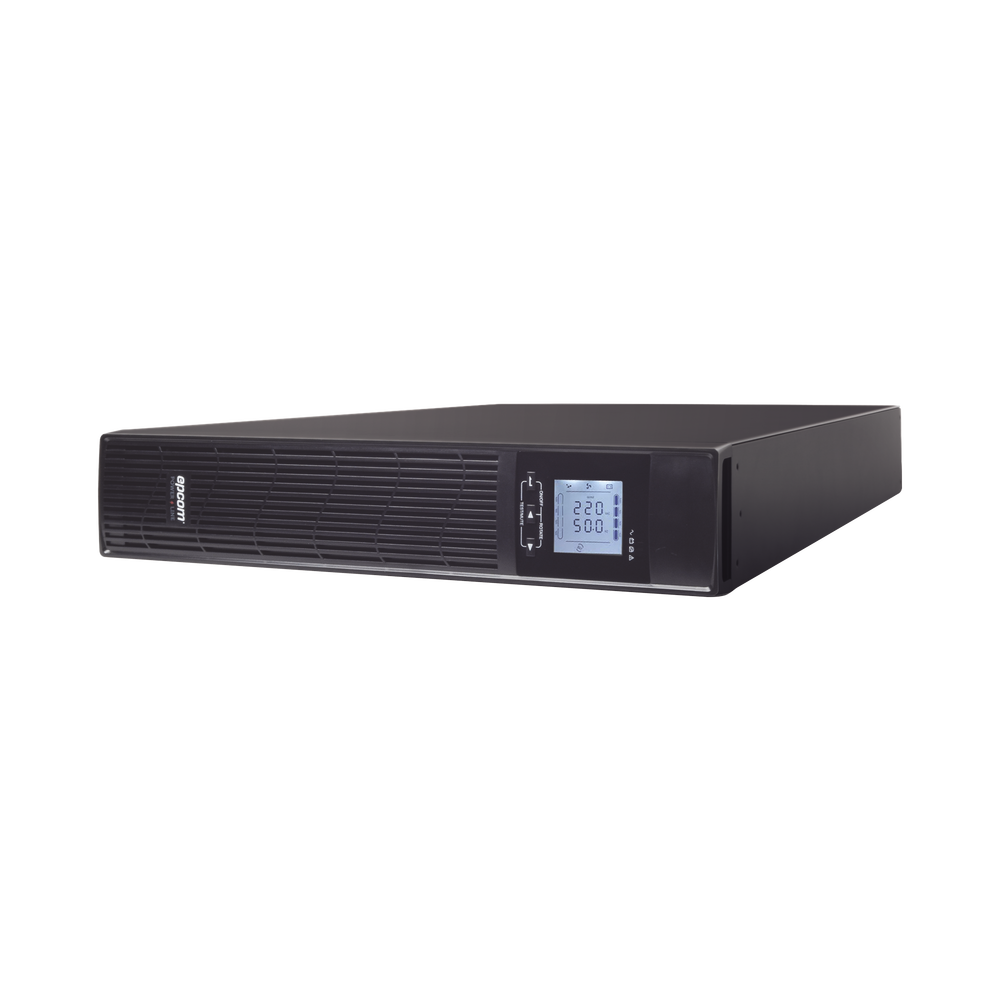

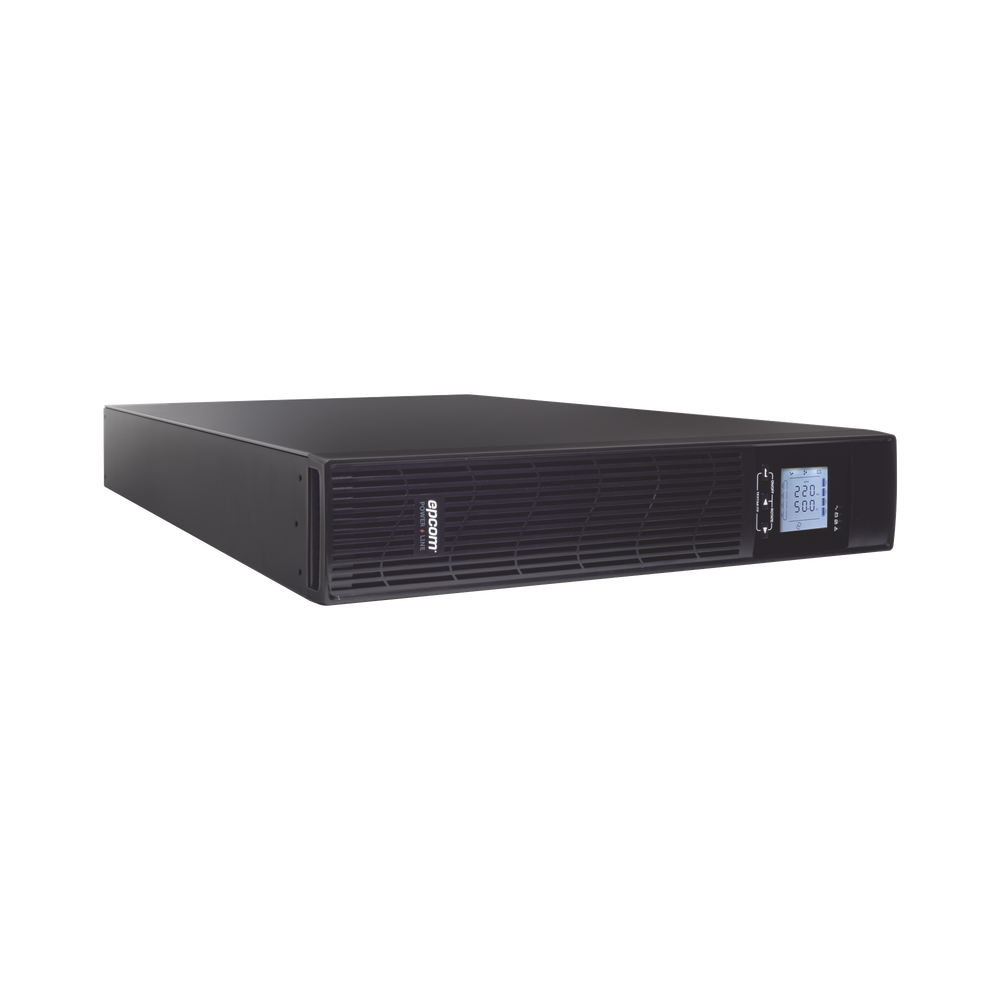

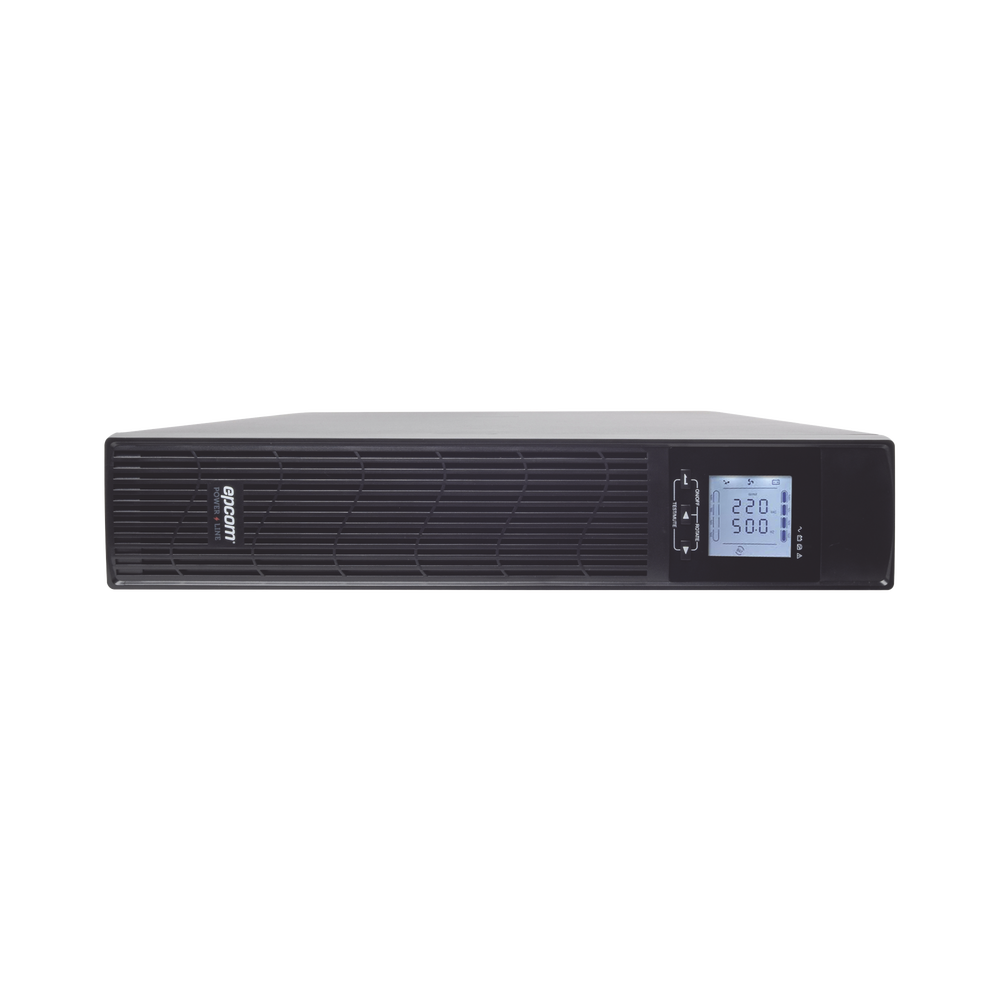

The On-Line (double-conversion) UPS is the high-density version of the epcom Power Line, designed for 220 VAC voltage applications. It features power factor correction (PFC) on the input and a 0.9 output power factor, offering high levels of reliability and protection for IT systems, telecommunications equipment, medical equipment, and mission-critical systems. It is convertible to rack or tower configurations and only requires 2U of rack space.

General Characteristics:

• Capacity: 3000 VA / 2700 W.
• Topology: On-Line
• With LCD screen.
• Wave type: Pure sine wave.
• Battery: 6 x 12V9Ah.
• Dimensions: 440 x 690 x 88 (Width x Depth x Height)
• Mounting on equipment up to 690 mm
• Output power factor: 0.9
• Voltage Regulator: 95 - 135 VAC.
• Voltage Output: 220V
• Option for battery bank.

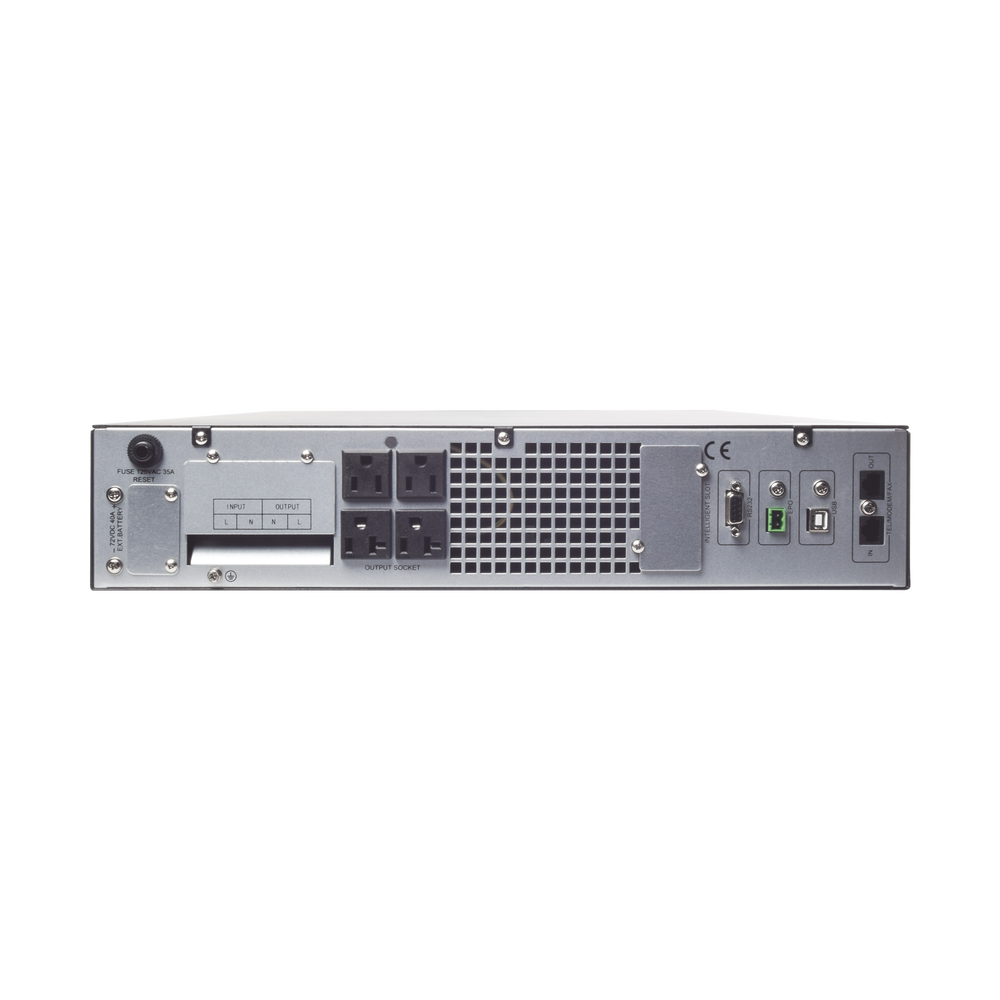

Rack/Tower format, RJ45 protection + USB port for communication, With power correction factor
