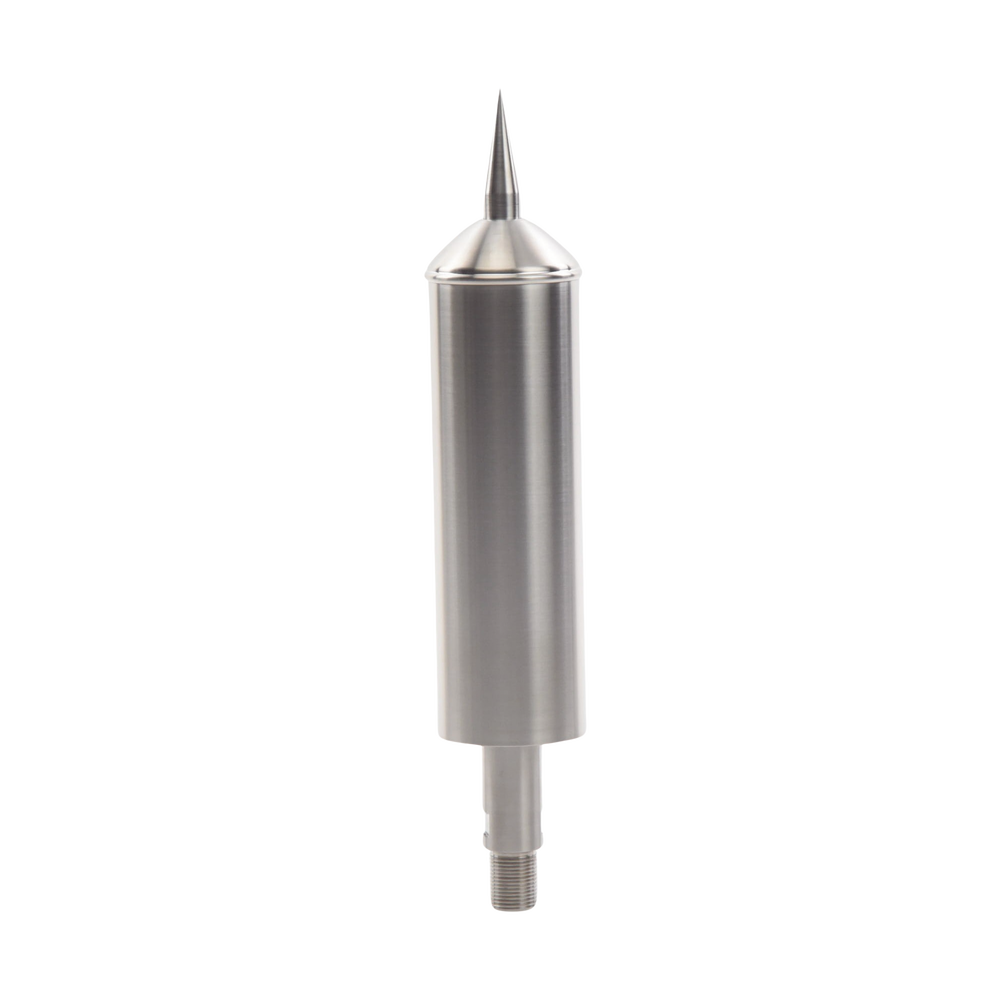

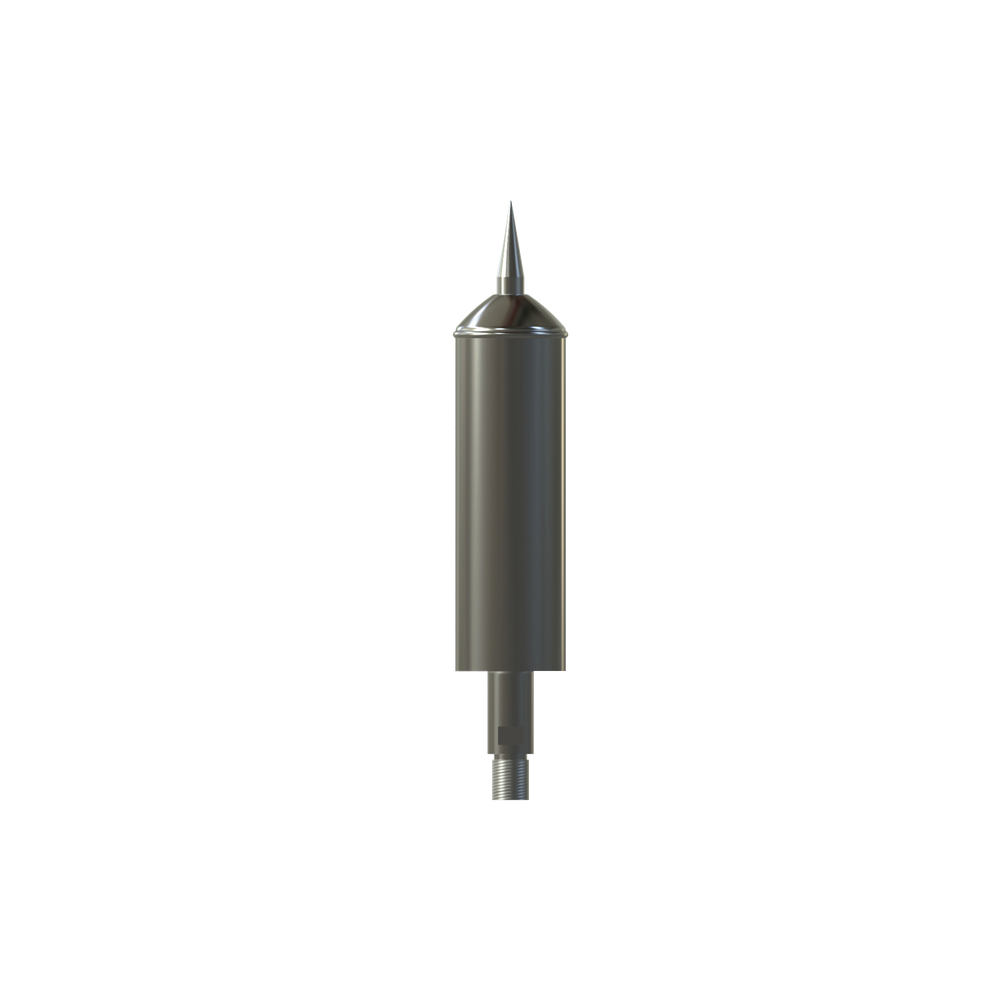

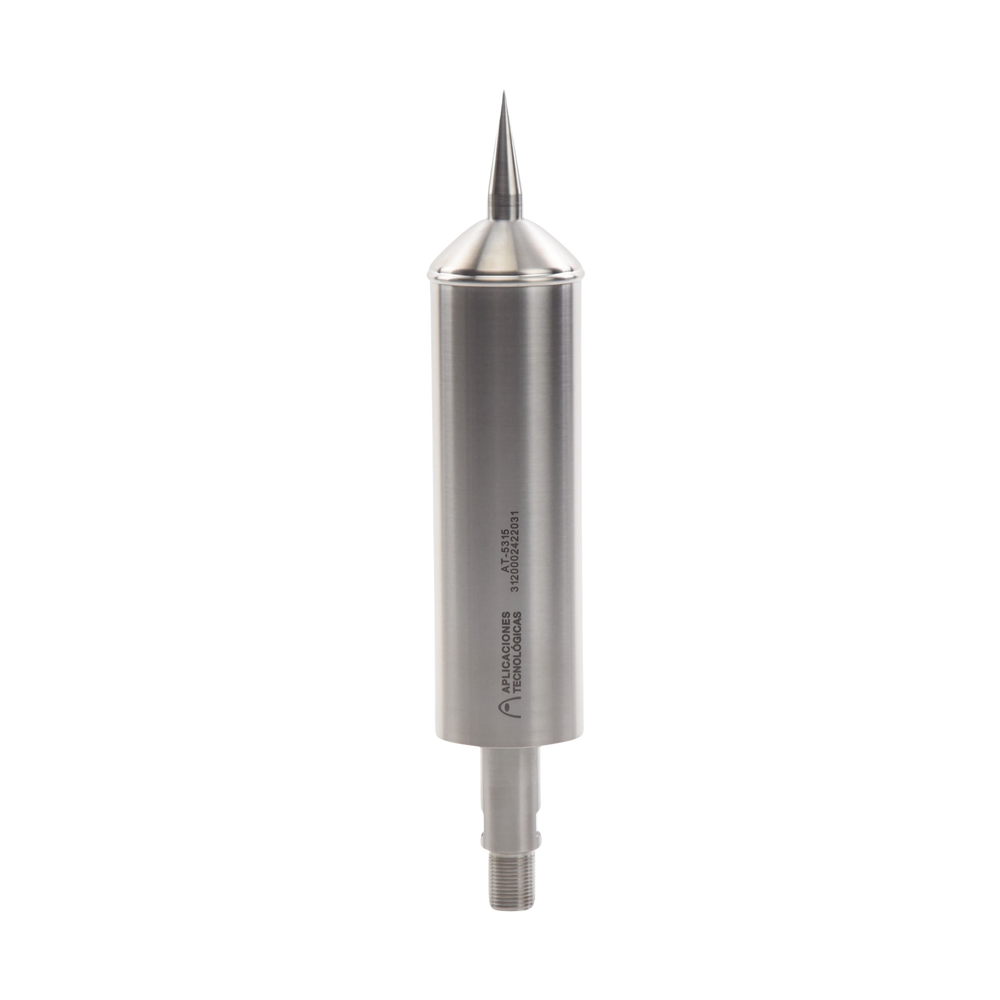

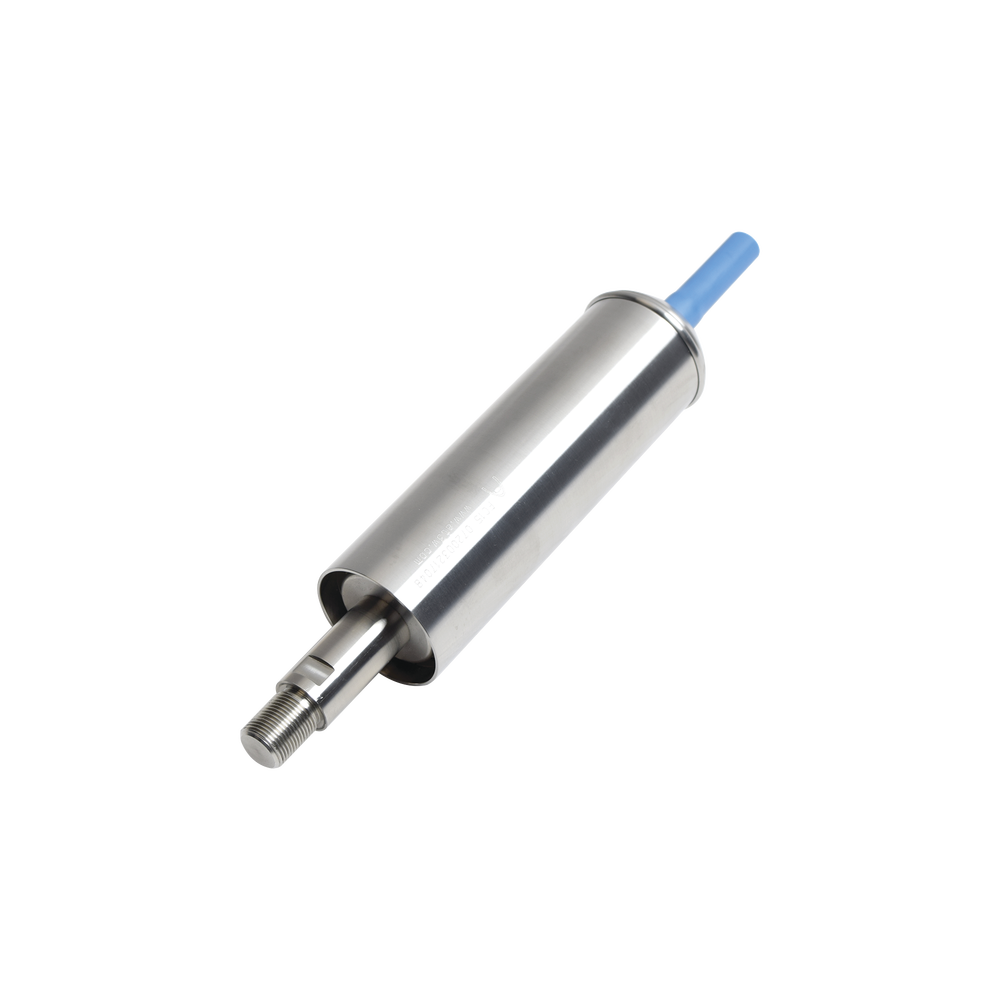

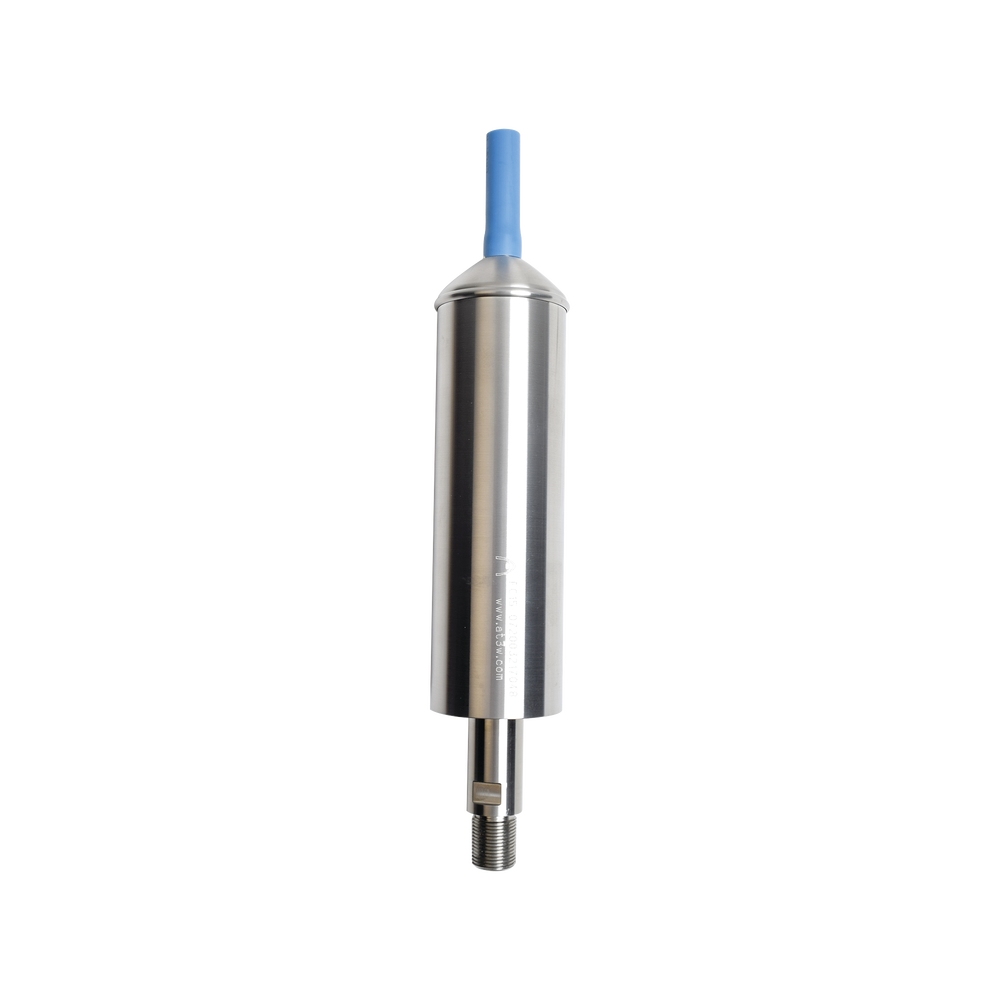

FLASH CAPTOR Lightning Rod Tip with 15 µs Spark Advance.

FLASH CAPTOR Lightning Rod Tip with 15 µs Spark Advance.

The Flash Captor Lightning Rod anticipates any other element within its protected area, capturing the lightning to conduct its current to ground via a safe path.

• High voltage pulse emitter.
• Completely autonomous.
• Stainless steel metal structure.
• Electroatmospheric condenser.
• Verifiable on-site and in the factory with specific equipment.

Certified according to UNE 21186:2011 , NF C 17-102:20 11 and NP4426:2013 standards in which the progress time is determined after passing, on the same sample, the following tests:

• Salt spray test.
• Test in a humid sulfurous atmosphere.
• 100kA (10/350µs) withstand current test.
• ΔT advance time test.

Technical Features:
Material: AISI 316L Stainless Steel
Weight: 3 kg.
External Diameter (Central Body): 60 mm
Length: 325 mm
Advance Time (ΔT): 15 µs

Requires AT-011-A adapter for correct installation.
