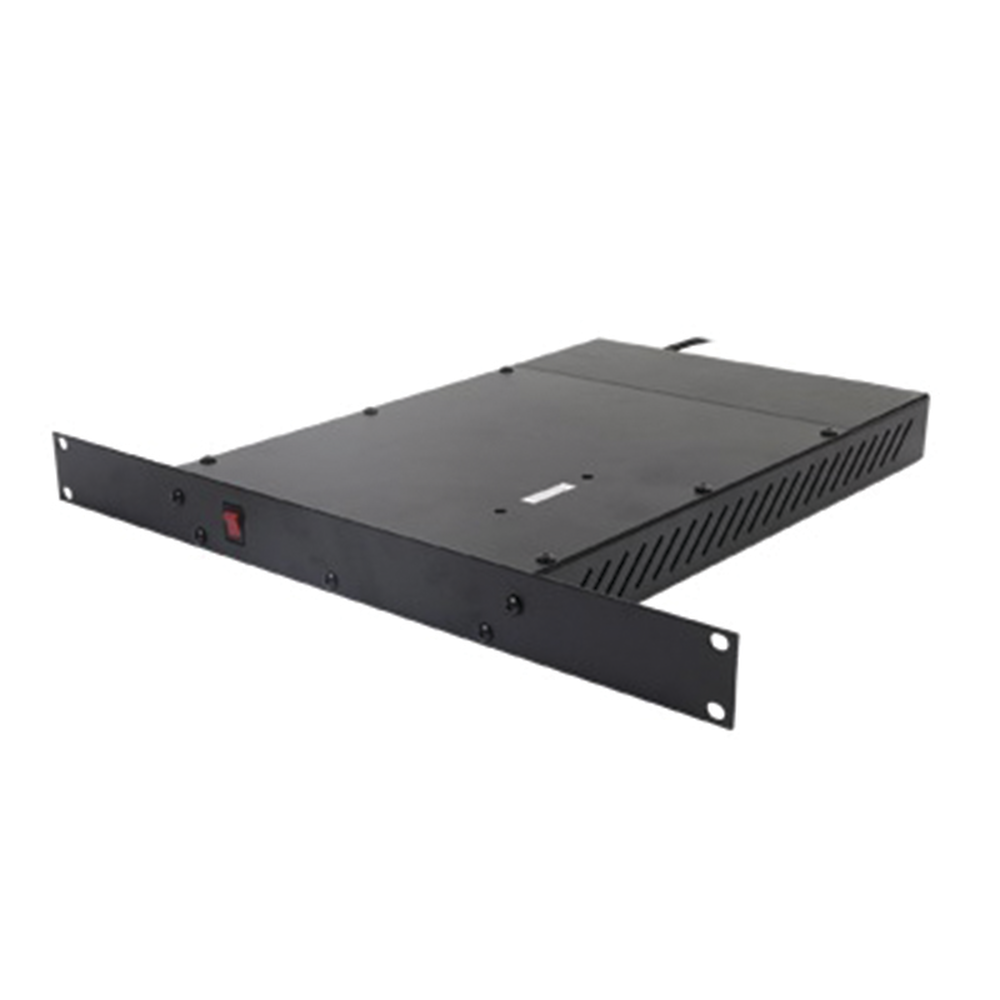

8 Output Power Supply, 19" Rack Mount, 1U, Up to 13.2 Vdc output, 10Amp (Configurable Output Current).

8 Output Power Supply, 19" Rack Mount, 1U, Up to 13.2 Vdc output, 10Amp (Configurable Output Current).

The line of power supplies optimized for video surveillance is manufactured to the highest quality standards to withstand demanding environments within industry and domestic use.


Functional Features:

•Configurable current distribution per output.
•Specialized cabinet for 19” rack installation
• Takes up only 1 unit of space in your closet.
•It has fast-blow fuses.
•Electronic overload and overvoltage protection.
•On/off switch on the back.
•It has 1 distribution board for connecting 18 cameras.
•Compatible with the entire line of SYSCOM analog and TURBO HD cameras.




Electrical Characteristics:
No. of Cameras: 8.
Input voltage: 100-240 Vac (Self-adjusting line voltage input).
Output voltage: 12 Vdc Nominal (Adjustable from 11.4 to 13.2 Vdc).
Output current: 10 Amp.
Fuse per output: fast-blow (bubble type) 1.6 Amp

Physical Characteristics:
Application: Interior.
Material: Premium Steel Cabinet.
Weight: 2.9 Kg.
External dimensions: 260 x 43 x 403 mm (Width x Height x Depth).
Rack Units: 1

Recommendations:
The maximum wiring length allowed for DC sources is 60 m (with 24 AWG copper wire)
Make sure the installation is performed by a trained professional.
Ground your power supply to maximize protection (<10 ohms).
Schedule a maintenance plan to remove excess dust and dirt from the equipment.
