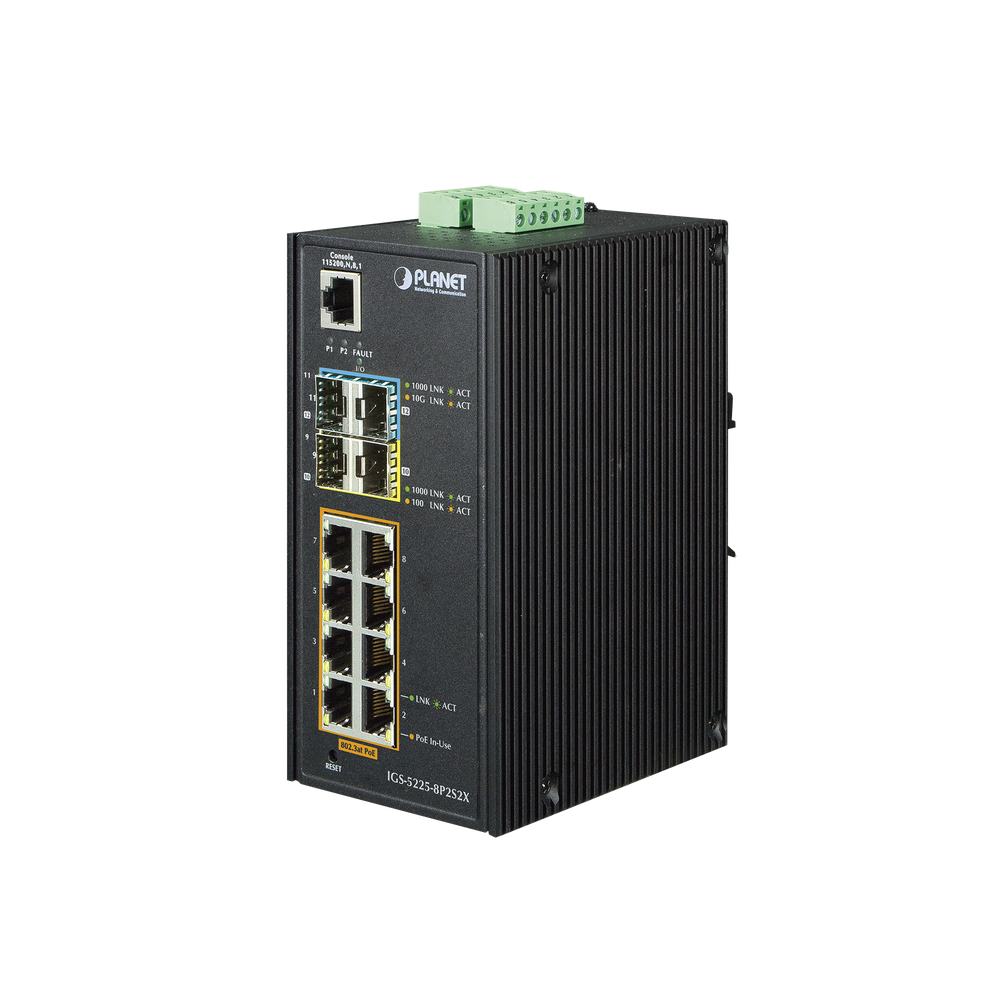

Managed Industrial Switch 8 ports 10/100/1000 T 802.3at PoE + 2 100/1000X SFP ports + 2 10G SFP+ ports

Managed Industrial Switch 8 ports 10/100/1000 T 802.3at PoE + 2 100/1000X SFP ports + 2 10G SFP+ ports

Physical port
8 - 10/100/1000BASE-T RJ45 Gigabit Ethernet ports with IEEE 802.3at PoE+ Injector
2 - 100/1000BASE-X mini-GBIC/SFP slots for auto-detection of SFP type
2 - 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
1 - RJ45 console interface for basic management and configuration

Power over Ethernet
Compliant with IEEE 802.3at Power over Ethernet Plus standard
Up to 8 IEEE 802.3af / 802.3at devices
Auto detect powered device (PD)
Power supply at a distance of up to 100 meters

Cabinet and industrial installation
IP30 aluminum box
DIN rail and wall mount design
48~56V DC, redundant power supply (power supply not included)
Operating temperature -40 to 75 degrees
Dimensions 72x107x152 mm
Max power consumption 11.1 watts without powering PoE devices
Max 306 watts with full PoE load

Providing up to 8 PoE+ power interfaces, the IGS-5225-8P2S2X can easily build centrally controlled power for an IP phone system, IP camera system, or wireless access point group in an industrial network. For example, 8 POE IP cameras or wireless access points can be easily installed around corners in an industrial environment for surveillance or wireless roaming needs. Without the limitation of power sockets, the IGS-5225-8P2S2X makes installing IP cameras or wireless access points easier and more efficient.





*3 years warranty.
