1-Port FXS Analog Telephone Adapter (ATA)

1-Port FXS Analog Telephone Adapter (ATA)

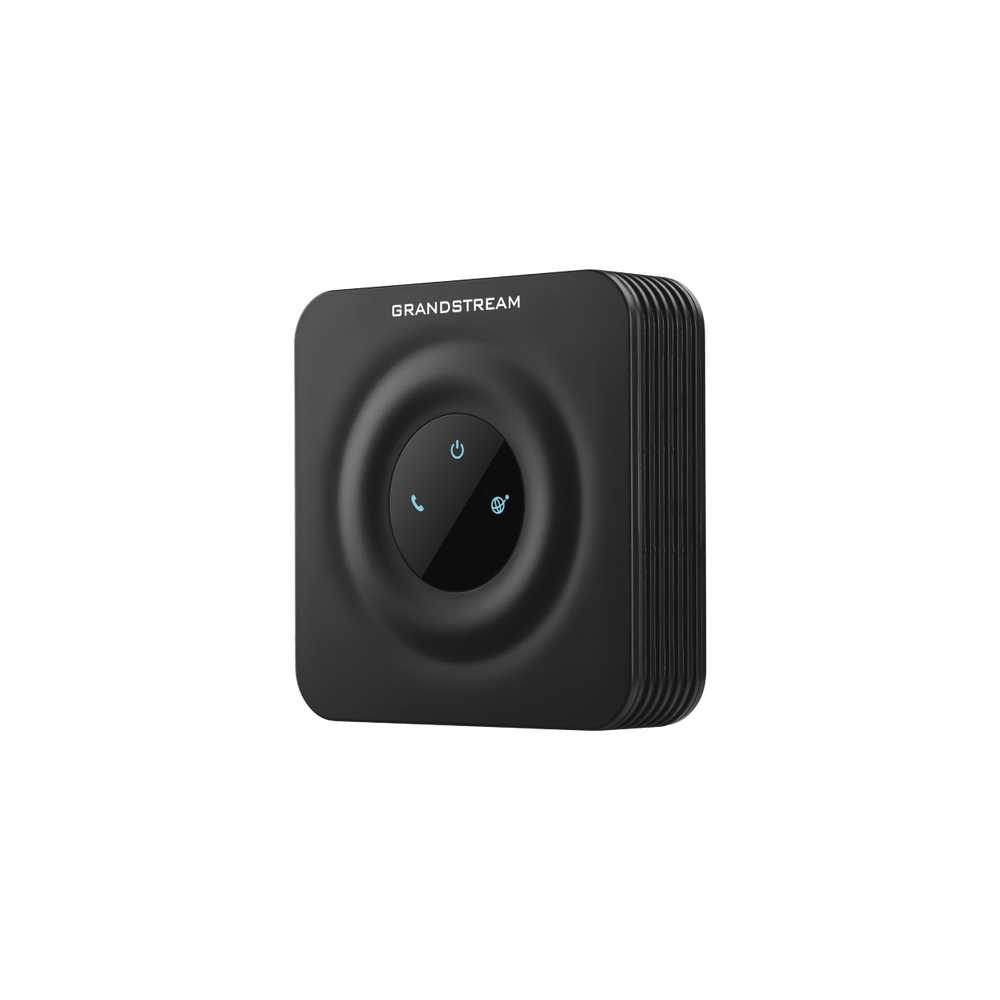

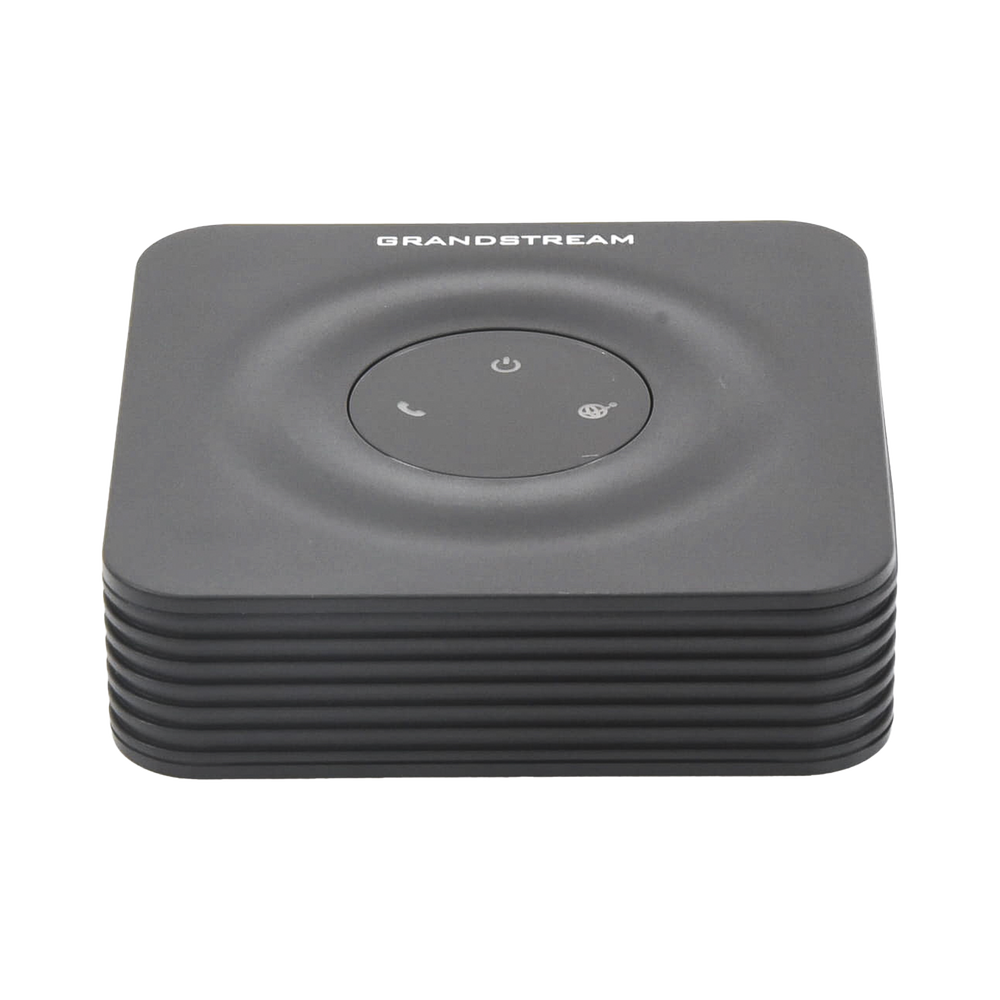

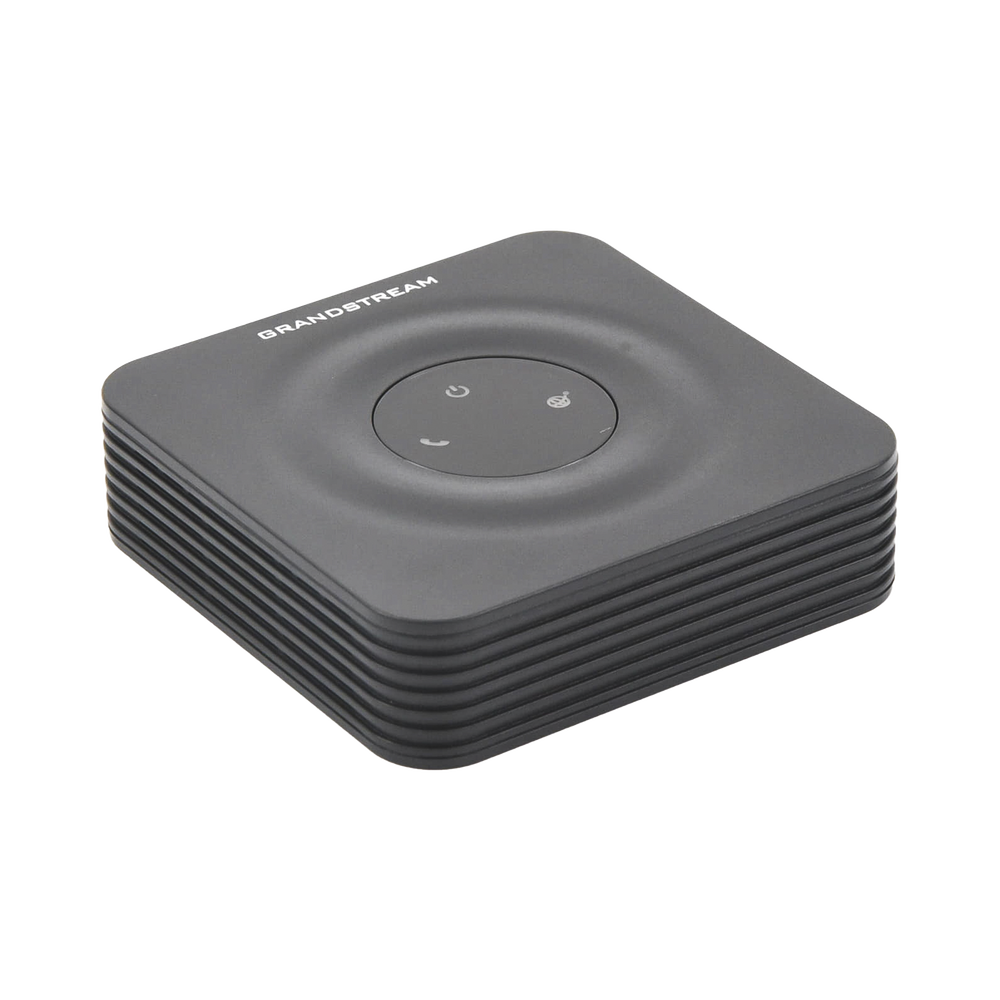

The HT801 is a single-port analog telephone adapter (ATA) that enables users to create a high-quality, manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection, and auto-provisioning options allow users to take advantage of VoIP on analog phones.
It also enables service providers to offer high-quality IP service to their market. The HT801 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide.

Interfaces:
- 1 FXS port (RJ-11) for connecting a conventional analog telephone.
- 10/100 Mbps Ethernet port (RJ-45).
- LED indicators for Adapter, Internet, Telephone and Line Status.
- Rear reset button.

Voice, fax and modem:
- 1 Line, 1 SIP account and 3-way conference.
- Telephone features: Caller ID with blocking, call waiting, dual line, attended or blind transfer, forwarding (Forward), holding (HOLD), do not disturb.
- Fax over IP: Compatible with T.38 protocol for Fax up to 14.4 kbps.
- Voice codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, dynamic jitter buffer, line echo cancellation.

Administration and security:
- Failover in case the primary SIP Server loses connection, it automatically switches to the secondary Server.
- Supports SYSLOG, Telnet and remote administration using web browser.
- SRTP, TLS, SIPS, HTTPS security.
- Layer 3 QoS (ToS, Di Serv, MPLS).

Accordance:
FCC (Part 15B), AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, EN60950, EN61000-3-2, EN61000-3-3, UL (power adapter).

Physical and electrical characteristics:
- Supported temperature range: 0°C to 40°C.
- Power supply: 5.0 Vdc, 1.0 A
- Dimensions: 100 x 100 x 29.5 mm.
- Weight: 102 kg.

*1 year warranty.
