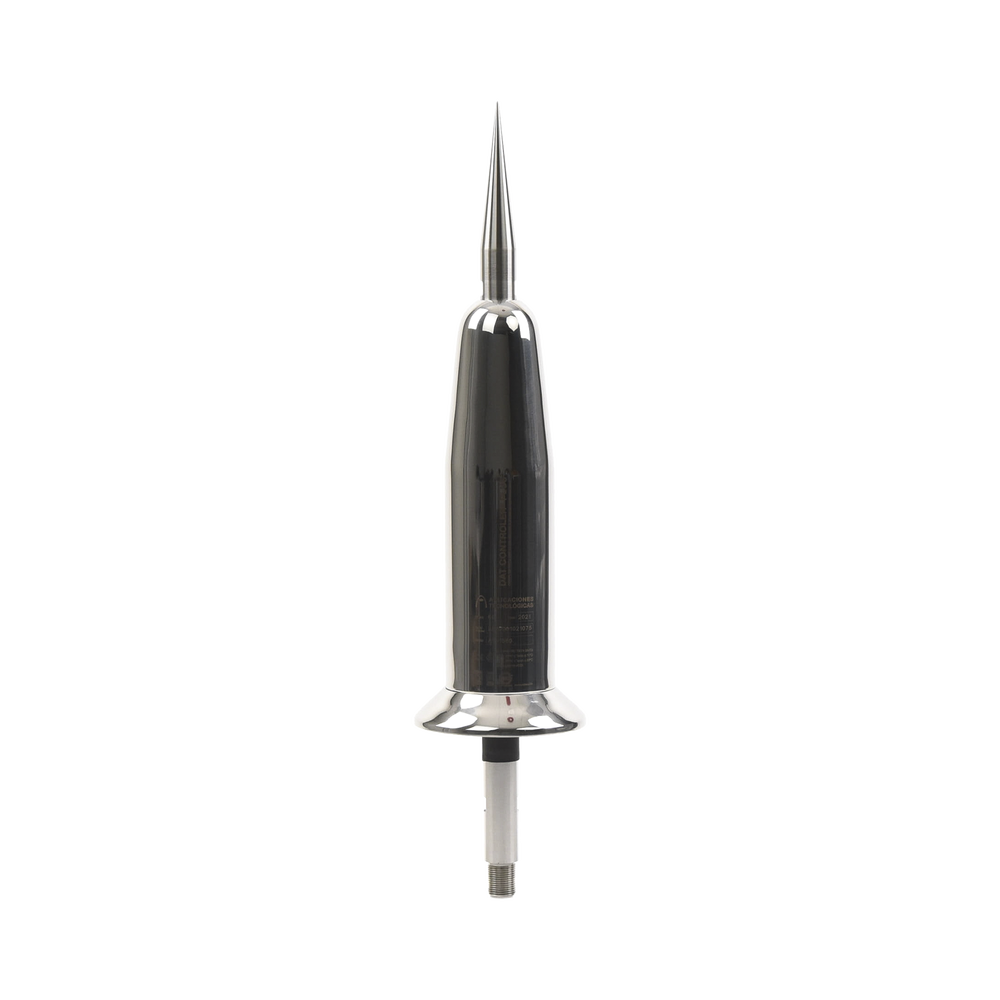

DAT CONTROLER PLUS Lightning Rod Tip with 60 μs Spark Advance (Exceeds UNE and NFC Standards).

DAT CONTROLER PLUS Lightning Rod Tip with 60 μs Spark Advance (Exceeds UNE and NFC Standards).

DAT CONTROLER® PLUS is a lightning rod with a priming device (PDC) that bases its operation on the electrical characteristics of lightning formation, emitting the continuous upward tracer before any other object within its protection radius, a characteristic normatively known as priming advance time (ΔT). The greater the anticipation of the upward tracer formation, the greater the distance at which it captures the downward tracer, protecting against lightning over a larger area (standards limit ΔT to ≤60 μs).

Regulatory Requirements.

- Compliance with UNE 21186:2011 standard.

Beyond the Standards: Additional Features.

- Endorsed by AENOR.
- Certified withstand current 20 impacts 100 kA (10/350 μs).
- Operation in rainy conditions (insulation greater than 95%).

Technical Features:

Material: AISI 316L stainless steel
Weight: 3.8 kg
Watertightness: IP67
Working temperature: -25 ºC to 88 ºC
Type of priming device: Electropulsating (pulse emitter)
Internal insulation: Polyurethane resin
Fixing: M20 male thread
Regulations: UNE 21186:2011; NF C 17-102:2011; NP 4426:2013
Certified Priming Advance: 60 μs.

Requires AT-011-A adapter for correct installation.
