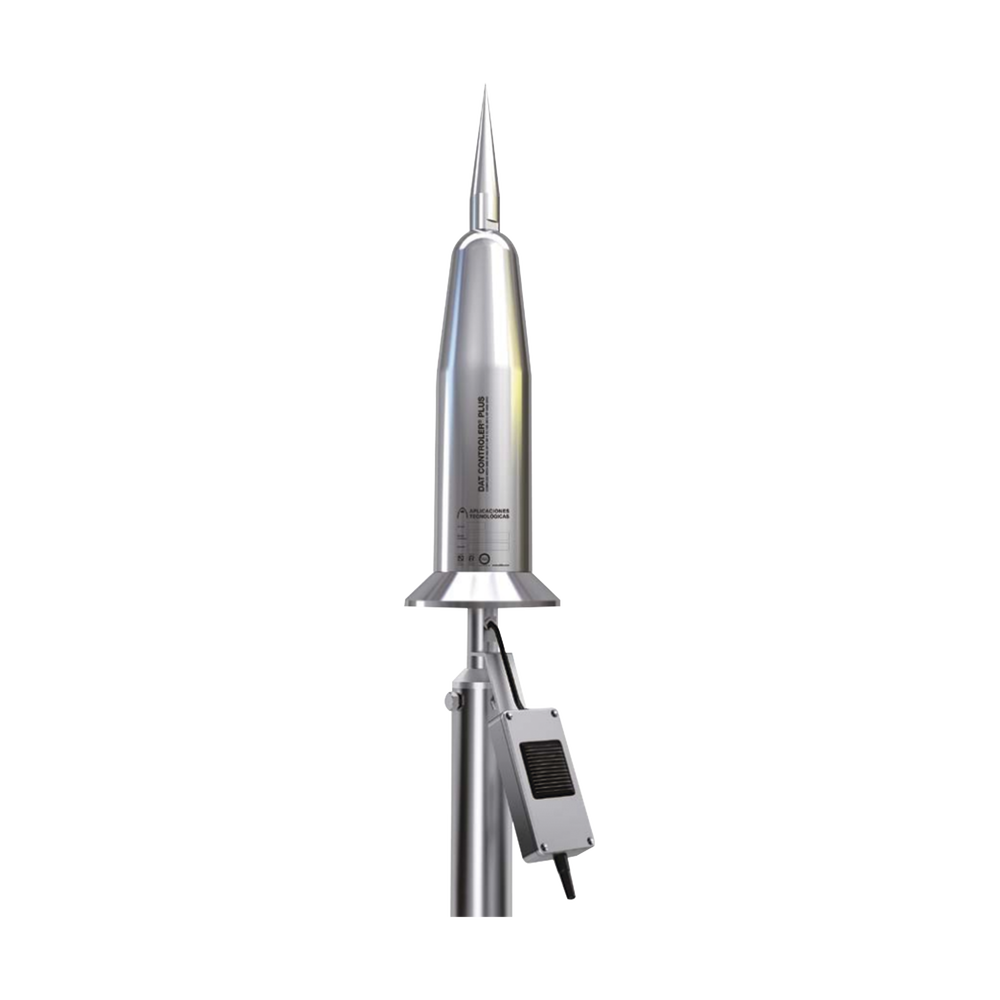

Lightning Rod Tip with DAT CONTROLER REMOTE INSPECTION. Priming Advance of 30 μs. (Exceeds UNE and NFC Standards).

Lightning Rod Tip with DAT CONTROLER REMOTE INSPECTION. Priming Advance of 30 μs. (Exceeds UNE and NFC Standards).

DAT CONTROLER® PLUS is a lightning rod with a priming device (PDC) that bases its operation on the electrical characteristics of lightning formation, emitting the continuous upward tracer before any other object within its protection radius, a characteristic normatively known as priming advance time (ΔT). The greater the anticipation of the upward tracer formation, the greater the distance at which it captures the downward tracer, protecting against lightning over a larger area (standards limit ΔT to ≤60 μs).

The AT-REMOTE TESTER continuously checks the condition of the head and emits a signal with the result. This verification must be carried out by authorized technical personnel using a specific analysis device .
Test reading: GSM

Regulatory Requirements.

• Compliance with UNE 21186:2011 standard.
• The DAT CONTROLER® PLUS + AT-REMOTE TESTER lightning rod must be installed in accordance with UNE 21186:2011, NF C 17-102:2011 and NP 4426:2013 standards. “Lightning protection: Lightning rods with priming device”.

Beyond the Standards: Additional Features.

- Endorsed by AENOR.
- Certified withstand current 20 impacts 100 kA (10/350 μs).
- Operation in rainy conditions (insulation greater than 95%).

Technical Features:

Material: AISI 316L stainless steel
Weight: 3.8 kg
Watertightness: IP67
Working temperature: -25 ºC to 88 ºC
Type of priming device: Electropulsating (pulse emitter)
Internal insulation: Polyurethane resin
Fixing: M20 male thread
Regulations: UNE 21186:2011; NF C 17-102:2011; NP 4426:2013
Certified Priming Advance: 30 μs.

Certificates:

- Certificate of protection radius and compliance with regulations.
- AENOR product certification No. 058/000005.
- Certificate of withstand current 20 impacts 100 ka (10/350 μs).
- Certificate of operation in rainy conditions.
- Certificate of withstand current 20 x 100 kA (10/350 μs) for remote verification device of the DAT CONTROLER® PLUS lightning rod.
