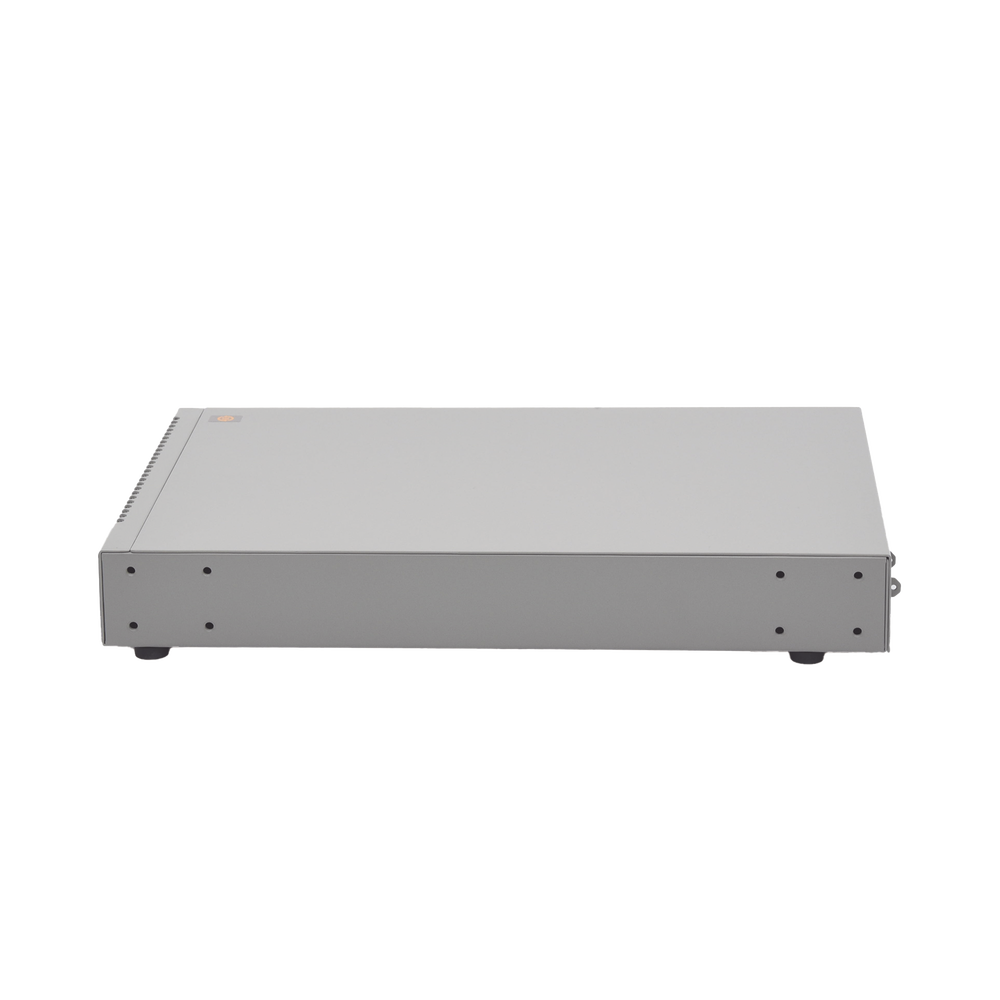

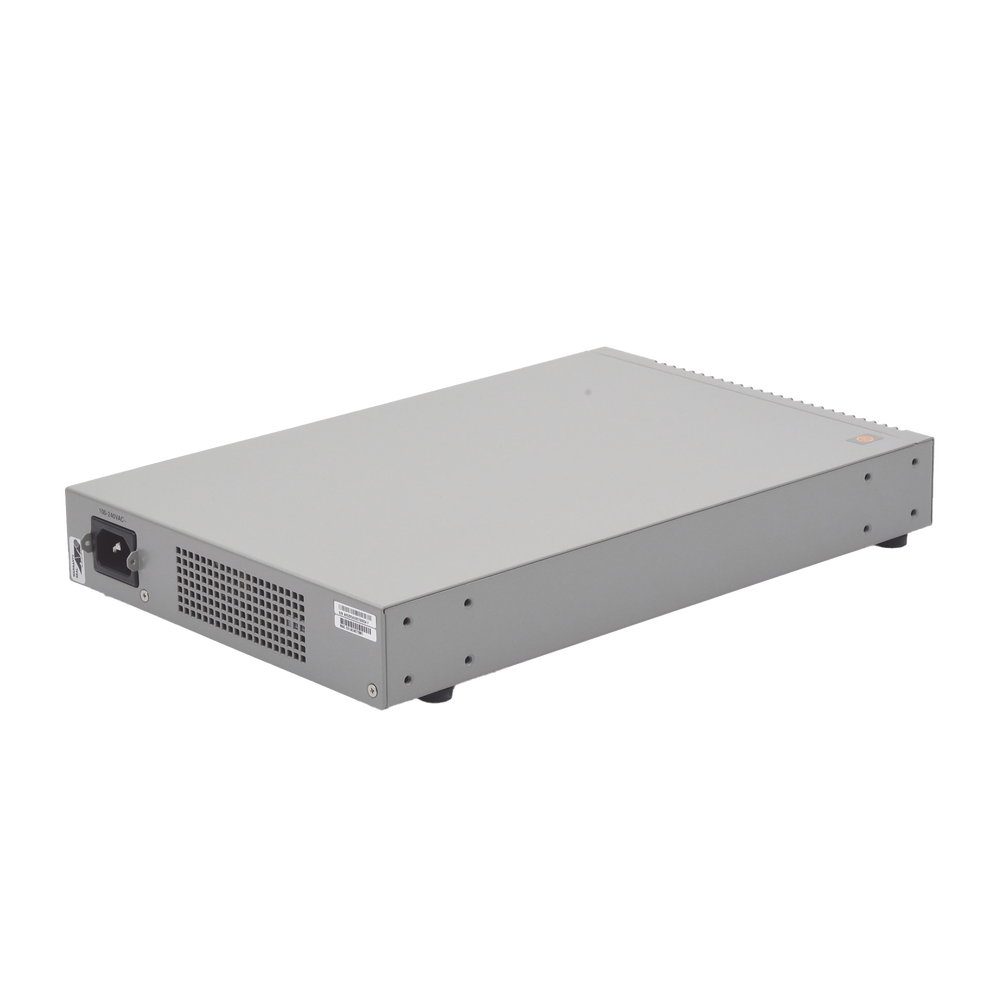

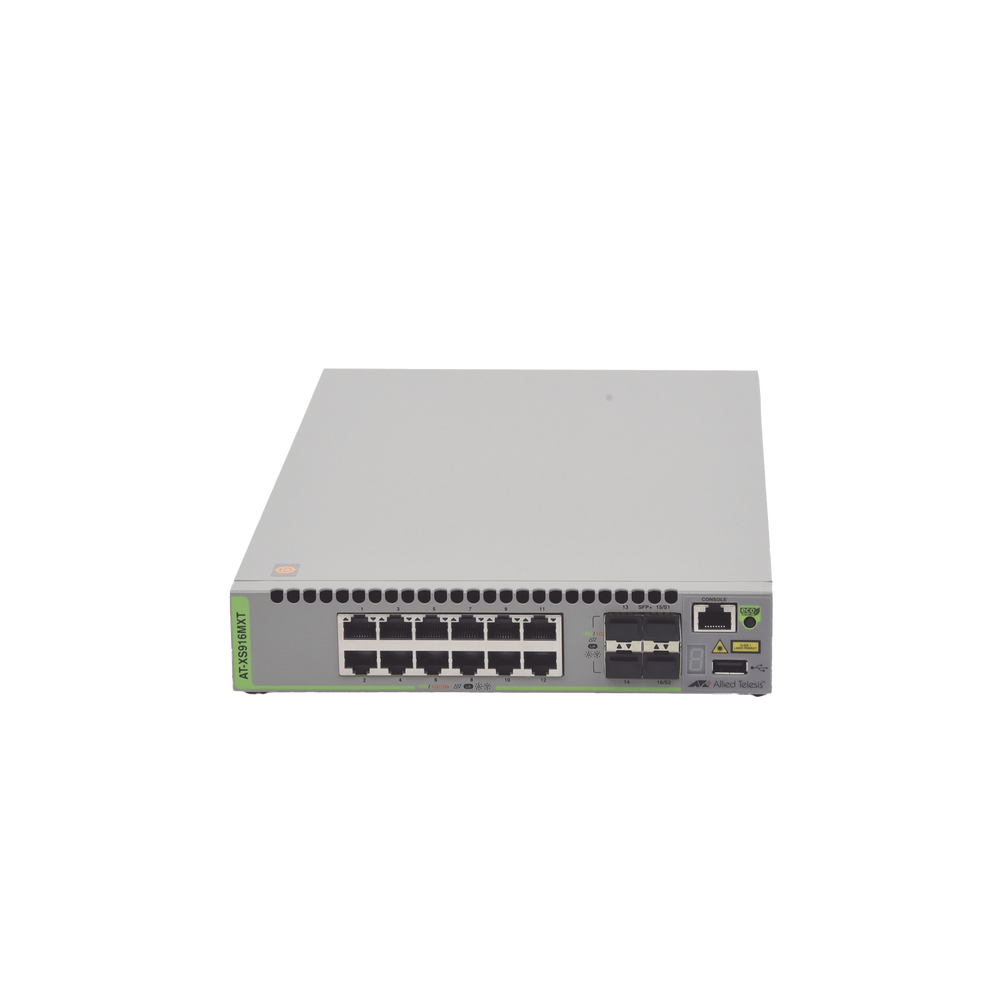

10 Gigabit Stackable Layer 3 Switch, 12 100/1000/10G Base-T (RJ-45) ports and 4 10G SFP/SFP+ ports

10 Gigabit Stackable Layer 3 Switch, 12 100/1000/10G Base-T (RJ-45) ports and 4 10G SFP/SFP+ ports

The XS916MXT and XS916MXS switches offer cost-effective, high-speed 10G connectivity for servers and storage, and support for 100/1000 connections for existing networks. The XS900MX Series is ideal for a highly flexible and reliable network that can easily scale to meet growing traffic demands.

Ports:
12 100/1000/10G Base-T (RJ-45) ports.
4 10G SFP/SFP+ ports.
Throughput: 238Mpps.

Operating System:
AlliedWare Plus™.

Administration:
Command Line Interface (CLI).
Telnet.
SSH.
SNMP v1, v2c & v3 monitoring.

Characteristics:
Allied Telesis Autonomous Management FrameworkTM (AMF) supports auto-recovery, zero-touch configuration, and auto-backup.
Ethernet Protection Switched Ring (EPSRing).
Industry-leading Quality of Service (QoS).
Loop protection.
Access Control Lists (ACLs).
VLAN ACLs.
Voice VLAN.
Active Fiber Monitoring.
Link Aggregation.
Tri-authentication.
VLAN Mirroring (RSPAN).
RIP and static routing.

Physical and Electrical Characteristics:
Power supply: 100-240 VAC, 47-63Hz.
Dimensions: 1 U Rack, 43 x 323 x 210 mm.
Weight: 2.8 kg.
Operating Temperature: 0°C to 50°C.

1-year warranty, for an additional year register the product at the following link:
