• Antena direccional, Dimensiones (4 ft), 4.4 - 5 GHz, 2 Conectores N-hembra, Ganancia 33dBi, Montaje incluido
1 1

RADIOWAVES

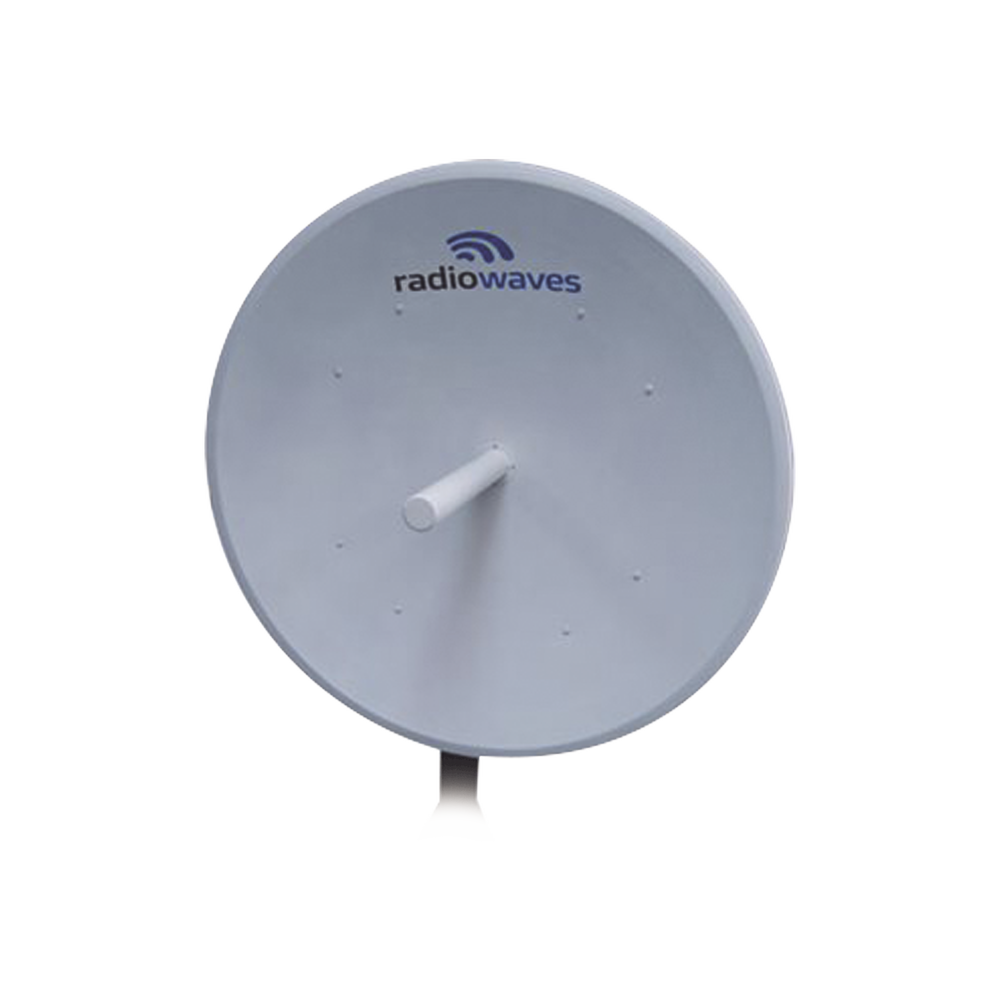

Directional Antenna, Dimensions (4 ft), 4.4 - 5 GHz, 2 N-Female Connectors, Gain 33dBi, Mounting Included

Directional Antenna, Dimensions (4 ft), 4.4 - 5 GHz, 2 N-Female Connectors, Gain 33dBi, Mounting Included

$14.755.414 COP
$16.138.734 COP $14.755.414 COP
Sale Sold out
Shipping calculated at checkout.

Directional Antenna, Dimensions (4 ft), 4.4 - 5 GHz, 2 N-Female Connectors, Gain 33dBi, Mounting Included

General specifications

Antenna type
Standard performance parabolic reflector antenna
Nominal size
4 ft | 1.2 m
Polarization
Single

electrical specifications

Operating frequency band
4.4 - 5 GHz
Half-power beamwidth, horizontal
3.6 degrees
Half-power beamwidth, vertical
3.6 degrees
Cross-polarization discrimination
30 dB
Front to back ratio (F/B)
40 dB
Gain, low frequency
32 dBi
Gain, average frequency
32.6 dBi
Gain, high frequency
33.1 dBi
VSWR
1.5:1
Loss of return
-14 dB
    They withstand all types of weather., Double polarization., Warranty: 7-year warranty

Out of stock

MODELO: SPD4-4.7NS
