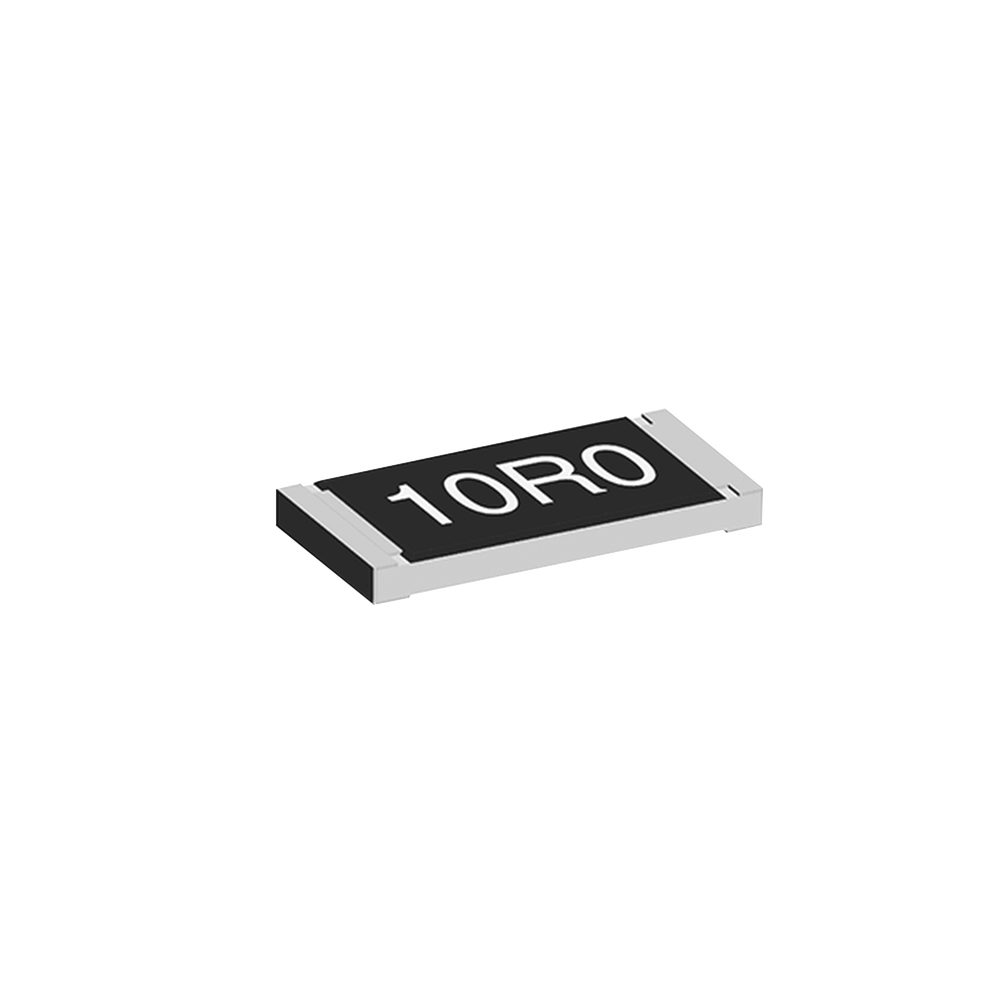

Resistor 10 Ohm, 1 Watt, SMD-2512, 1%, 6.3 x 3.1mm.

Resistor 10 Ohm, 1 Watt, SMD-2512, 1%, 6.3 x 3.1mm.

​Resistor 10 Ohm, 1 Watt, SMD-2512, 1%, 6.3 x 3.1mm.

• Resistance Value: 10 Ohm
• Power Dissipation: 1 Watt.
• Tolerance: 1%
• Size: SMD 2512
• Dimensions: 6.3 x 3.15 mm.
• Voltage Limit Element: 500 AC/DC.
• Insulation Voltage: >300V (1 min).
• Insulation Resistance: > 10,000,000,000 Ohm.
• Temperature Range: -55ºC to +155ºC.
• Probability of failure: < 0.1 x 10 to the -9.
• Weight: 40 mg.
