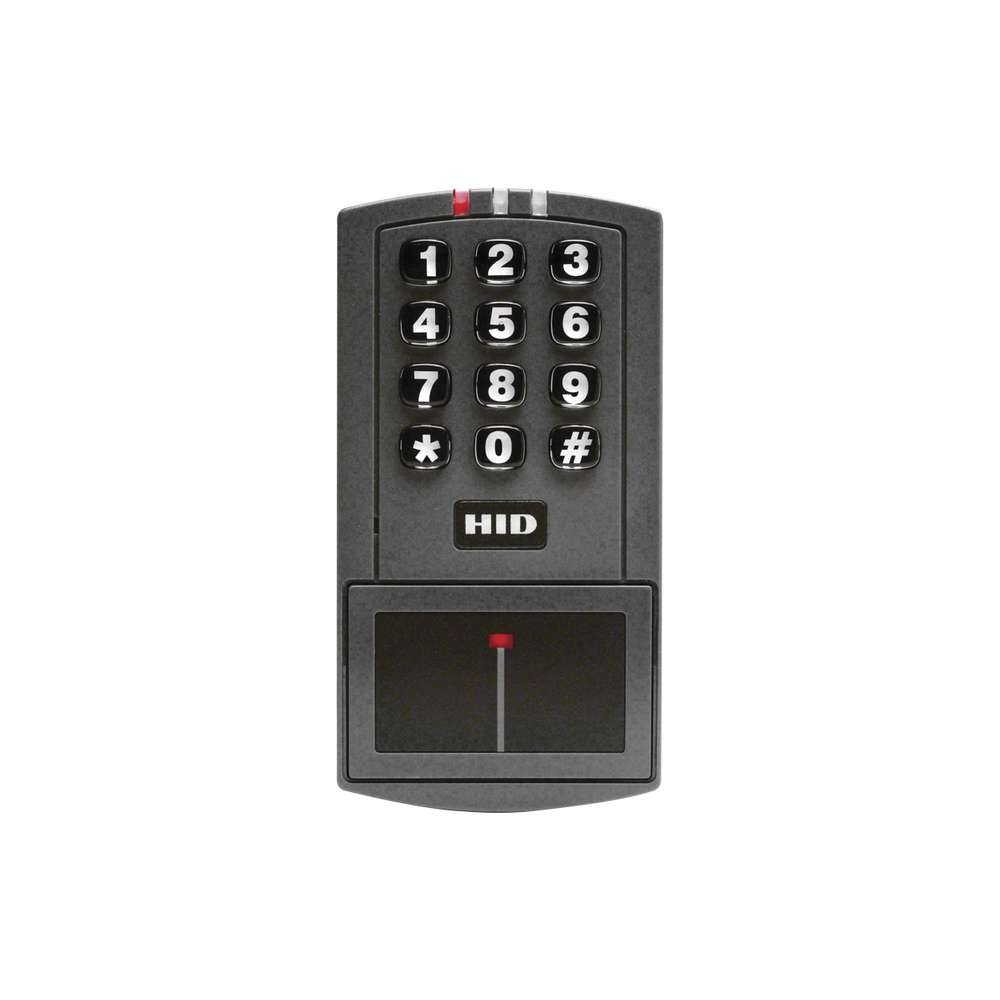

Stand Alone EntryPROX HID Reader

Stand Alone EntryPROX HID Reader

INDEPENDENT PROXIMITY READER FOR A DOOR

Qualities:

• Hassle-free keypad entry: Extra-secure keypad allows PIN entry or programming.
• Faster programming: Batch load up to 1,000 HID cards or tags with a single
• keyboard command sequence
• Efficient credential management - Block Delete allows you to delete cards/keytags by
• user location

Specs:

• HID Reference: 4045CGNU0.
• 1000 users.
• Power supply 10-15 Vdc, 150 mA
• Type C relay supports up to 30 Vdc at 1A
• Type C auxiliary relay, supports up to 30 Vdc at 1 A
• Monitor Inputs: Gate Position NO
• REX Exit Request: NO
• Bicolor LEDs (Red/Green)

Typical maximum read range*

• ProxCard® II card up to 3.0" (7.6 cm)
• ISOProx® II card up to 2.5" (6.35 cm)
• DuoProx® II card up to 2.5" (6.35 cm)
• Smart ISOProx® II up to 2.5" (6.35 cm)
• Smart DuoProx® II up to 2.5" (6.35 cm)
• HID Proximity and MIFARE® cards up to 2.5" (6.35 cm)
• ProxCard® Plus card up to 1.0" (2.5 cm)
• ProxKey™ II key fob up to 1.5" (3.8 cm)
• Microprox® label up to 2.0" (5.1 cm)

Product on request
