Hunter8 Alarm Kit for Radio Transmitter use includes Alarm Panel, Keypad, Cabinet, 7Ah Battery and Transformer.

Hunter8 Alarm Kit for Radio Transmitter use includes Alarm Panel, Keypad, Cabinet, 7Ah Battery and Transformer.

Professional and reliable alarm system characterized by its quick and easy installation, incorporating the latest market demands.
• Hybrid intrusion alarm system, from 8 to 30 users, 4 partitions, up to 3 fully programmable outputs, 8 wireless zones, and 24 remote controls.
• 5 Communication Modes to the Monitoring Center: Via telephone, radio, GPRS, GSM and TCP/IP.

System
• Programming via alphanumeric keyboard, Software Downloading and PRG 896 rapid programmer.
• Auto-arm function based on day or inactivity.
• Maximum 8 keyboards, supports touch-sensitive alphanumeric and LED keyboards.
• Programmable entry time from 1 to 254 sec.
• 4 partitions
• 128 events in memory. The memory can be read using touch-sensitive alphanumeric keypads and COMAX software in Spanish.
• 1 PGM for powering and resetting 4-wire smoke detectors, another PGM output for general uses.
• Programmable using COMAX software.
• 1 1 A siren output.
• Telephone line cut detection.
• Auxiliary current of 750 mA.
• 16.5 Vac power input.

Zones
• 8 programmable zones, configurable with or without end-of-line resistor, or with two resistor capacity for wiring supervision.
• 8 wireless zones and 24 remote controls.
• A total of 16 Zones.
• Supports wired and wireless I/O-WN expansion modules.
• Zones can be configured for fast or slow response, from 50 msec to 12.75 sec.
• Ability to create zone templates.
• 10 types of configurable zones.
• Supports 4-wire smoke detectors.
• Supports zone folding.
• Menu-driven programming in Spanish.
• Arming and disarming by key zone.

Users
• 30 user codes.
• A code can be set per duress partition.
• Users can be assigned one or more partitions.
• Each user can be assigned a control (they do not occupy zones).
• Multiple authority levels; master and standard user (maximum 24).
• Quick arming with short code, does not allow disarming.
• Information on alphanumeric and touch-sensitive keyboard only.
- Zone status. - Exit time. - Time and date. - Event log.
• Configurable open door alert by access zone (chime).

Communication
• Communication Modes to the Monitoring Center: Via Telephone, Radio, GPRS, GSM and TCP/IP.
• Supported communication formats: - Contact ID.- 4 + 2, 4 + 2 Express. - PAF/New PAF.
• Compatible with any Monitoring Center that handles the formats described.
• Supports radio communication. Requires TRU-100 radio (not included).
• Dual, split reporting capabilities.
• Ability to report by radio and telephone simultaneously.

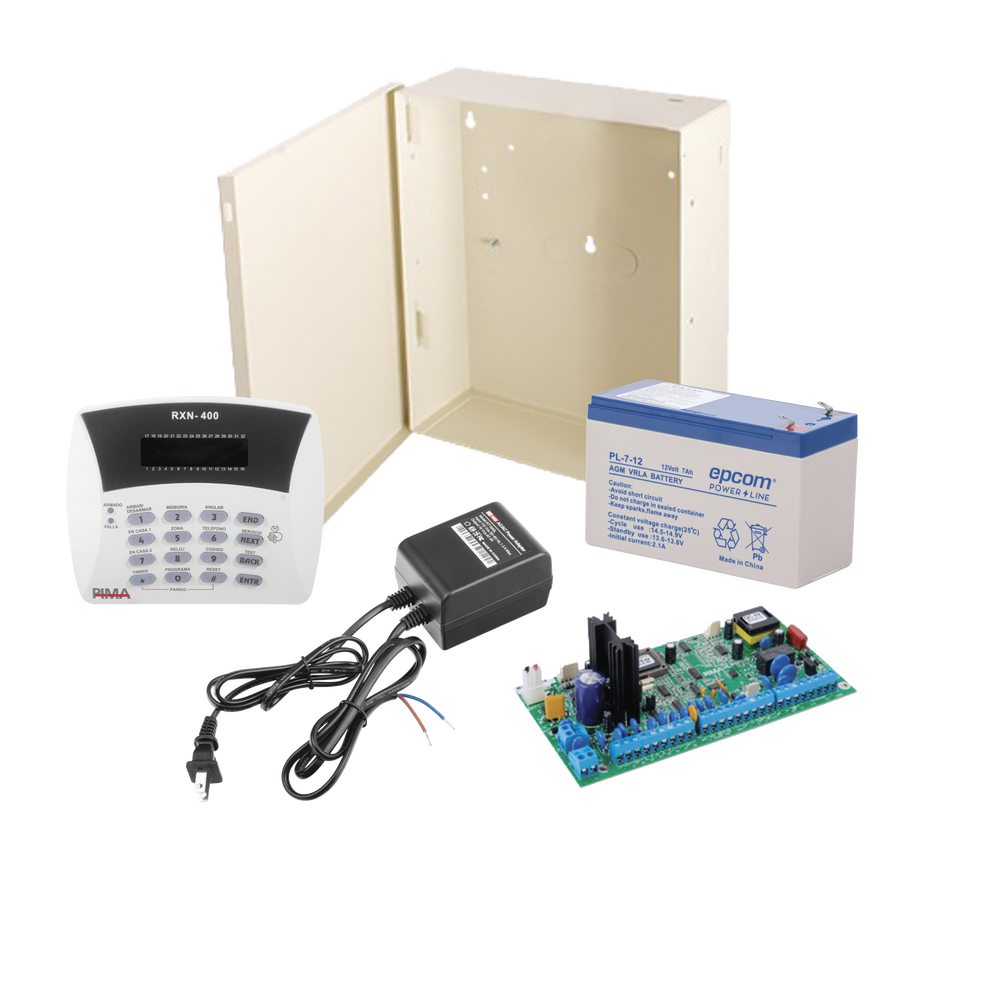

INCLUDES:
» HUNTER8PCB.- 8-16 Zone PIMA Alarm Panel.
» RNX400.- Alphanumeric keyboard for Pima panel.
» SGRPRU.- Cabinet for PIMA panel
» RT1640L.- 16.5VAC 40VA transformer
» PL712.- Backup Battery 12 V 7Ah..

8 to 16 Zones, 8 Wireless Zones, 24 Wireless Keyfobs, Radio/Telephone/IP/GSM Communication, Free App using MWA500 WIFI module
