High Efficiency Power Supply with Digital Control, TCP/IP Manageable, 100 Amps, 12 VDC, 1 Rack Unit, Battery Charger, Automatic Connection and Disconnection

High Efficiency Power Supply with Digital Control, TCP/IP Manageable, 100 Amps, 12 VDC, 1 Rack Unit, Battery Charger, Automatic Connection and Disconnection

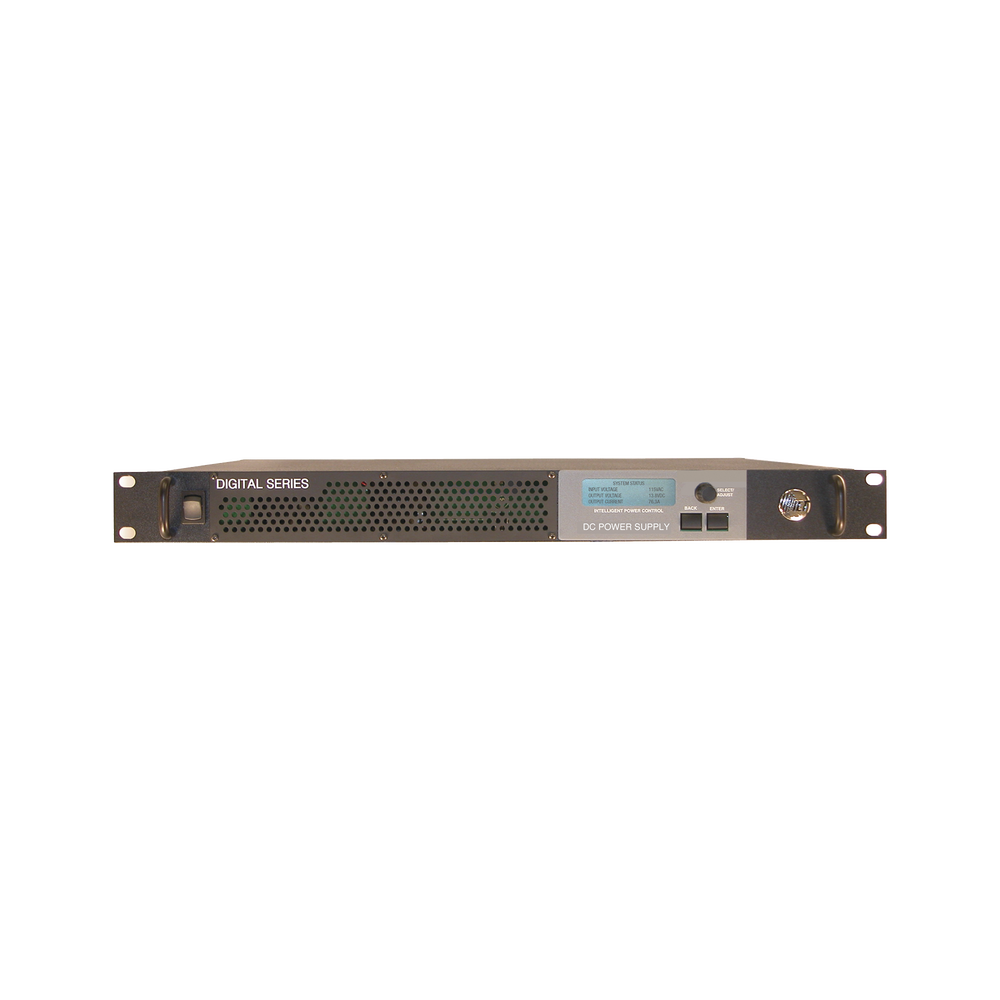

ICT Digital Series 100 Ampere 12 VDC Power Supply.
It features an intelligent control interface located on the front with an LCD screen to precisely adjust the output voltage and current.

Remote Administration

Its Ethernet TCP/IP connection provides complete and easy remote monitoring and control using an included web interface.

• Allows remote monitoring of the conditions and status of the source.
• Turn on/off direct current outputs.
• Adjust voltage output and set current limits.
• Configure email alerts.

Ideal for applications:

• VoIP
• Wireless networks.
• Radio communication systems, Repeaters, Trunked Systems.
• RF Amplifiers.
• WiMax.
• Routers.
• Wireless Links.

General Characteristics

• Compact 1 rack unit design.
• Direct current at 12V: 100 A
• Efficiency (Typical) 12V: 90% @ 220VAC
• Output voltage range: 11.5 - 15.5 VDC
• Input voltage range: 100-265 VAC
• Frequency range: 50/60 Hz
• Power Factor (Typical): 0.99
• Operating temperature: -30 C to + 60C
• Temperature controlled by fans.
• Includes a third terminal for battery charging.
• Automatic battery disconnection due to low voltage level.
• Dimensions (inches) 16.5 x 19.0 x 1.72
• Weight: 7.7 Kg
• 2 years warranty.
