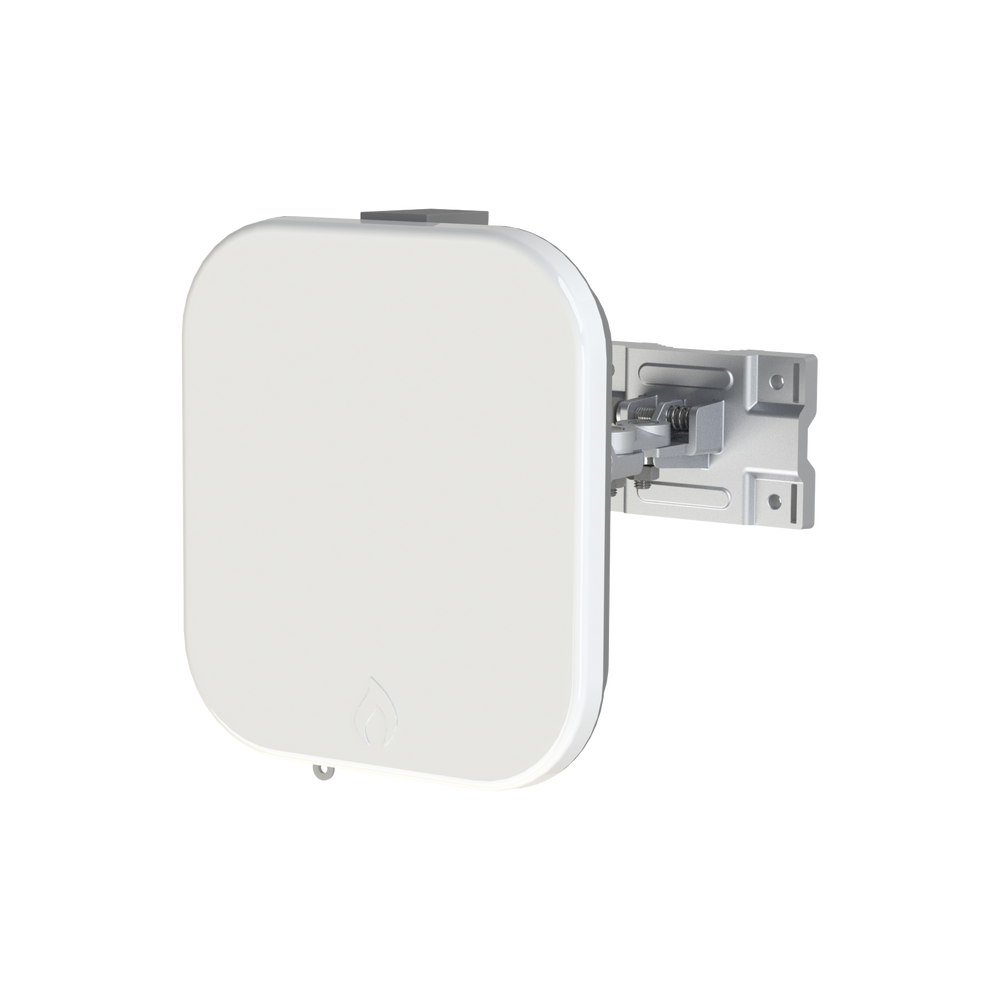

60 GHz PtMP Sector Base Station + 5 GHz Failover, up to 2.5 Gbps with integrated 18 dBi 120° antenna

60 GHz PtMP Sector Base Station + 5 GHz Failover, up to 2.5 Gbps with integrated 18 dBi 120° antenna

Opening: 120° on both bands.
Mode of operation: Access Point PtMP

Distance range: up to 900 meters

Antenna gain:
60GHz: 18dBi
5GHz: 14dBi

RF Performance:
60GHz: 2.5 Gbps aggregate throughput
5GHz Backup Radio: 886 Mbps aggregate throughput
Frequency range: 57-64 GHz

Number of stations supported: Up to 8, soon up to 32.

Key Features:
Supports Jumbo packets (Up to 7912 bytes)
Supports VLAN passthrough.
Supports WISP and enterprise networks (Voice, network and data)
Control from the cloud.
AES 128-bit encryption on both bands.
SNMP monitoring.
Ready for Discovery Tool (Tool to find IgniteNet devices on LAN)

Applications:
3G/4G Backhaul.
Interconnection of University Campuses, Buildings, Industrial Plants, etc.
WISP networks.

General characteristics:
Operating temperature: -40°C to 70°C.
LEDs: Power, Ethernet, Wireless, Status, Signal Strength.
Weight: 2kg with assembly.
Dimensions (Length x Width x Height): 190 x 190 x 60 mm.
Supports loading double flash image.

Hardware:
1 x Gigabit Ethernet Port ( PoE input 24-48V 1A ).
1 x SFP port.
1 x Terminal Block ( DC IN 24-48V ).
1 x USB 3.0 port.

Prepared to adapt tool for alignment model: ICC-SCOPE-9x50

Compatible Slaves: Any IgniteNet Metrolinq PtP Base Station.

Includes PoE power supply.
Assembly not included. Options: Model ICCBRACKETLR is recommended for link distances greater than 200 meters, or ICCBRACKETSTD for distances less than 200m.

Beamforming...



IgniteNet CPE distances.



Hardware...


*2 years warranty.
