Multi-WAN Gigabit VPN Router with Load Balancer

Multi-WAN Gigabit VPN Router with Load Balancer

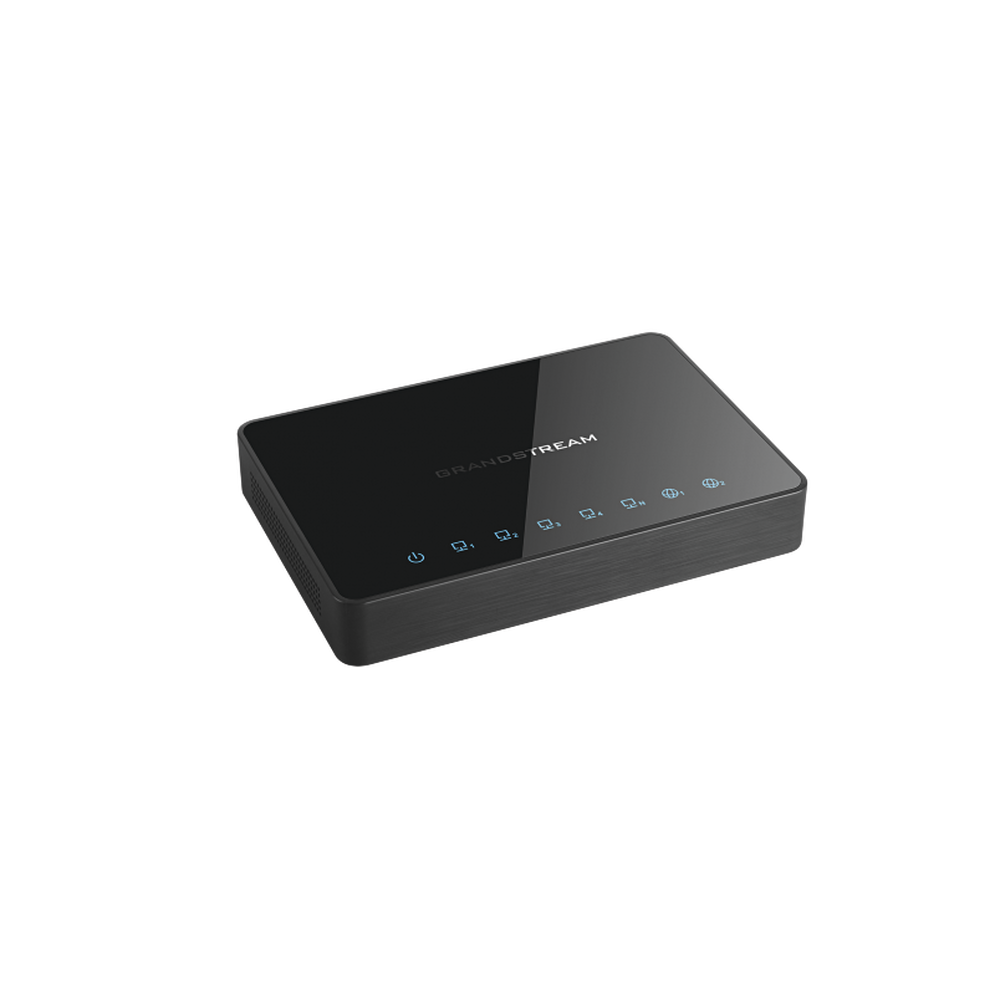

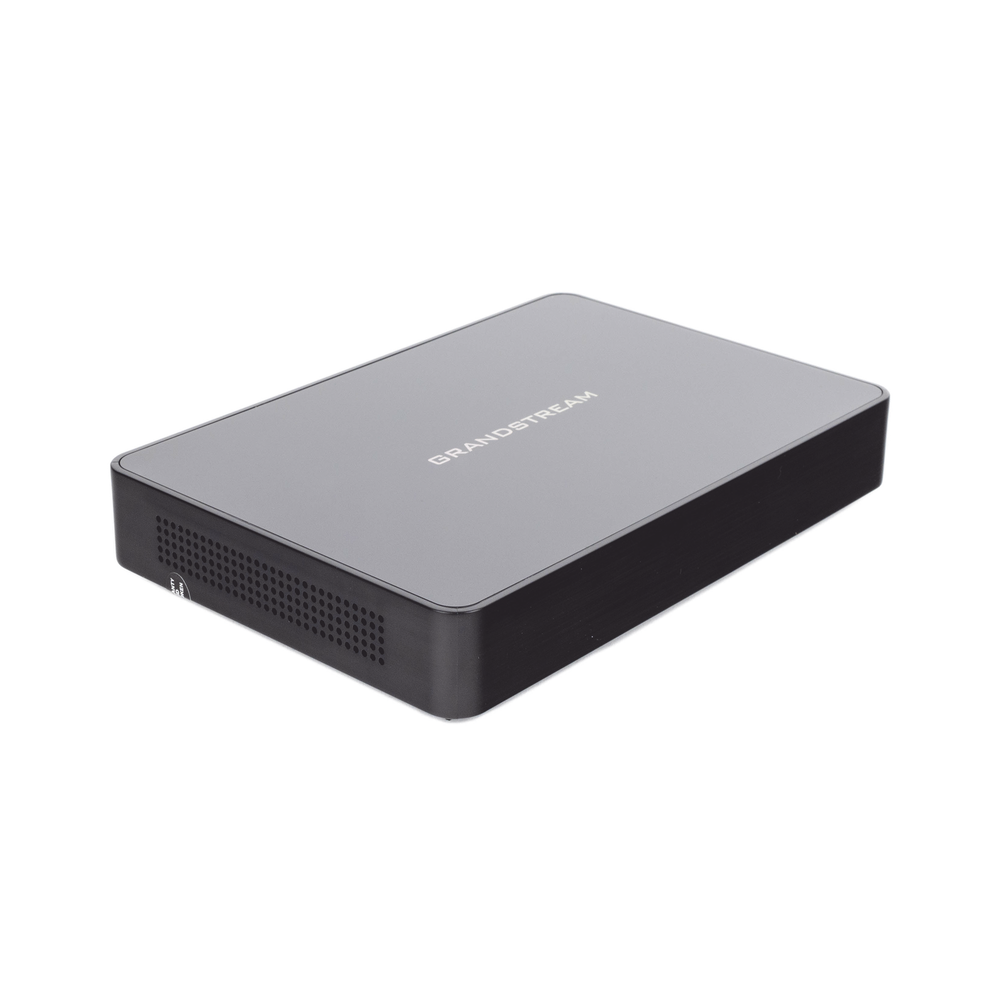

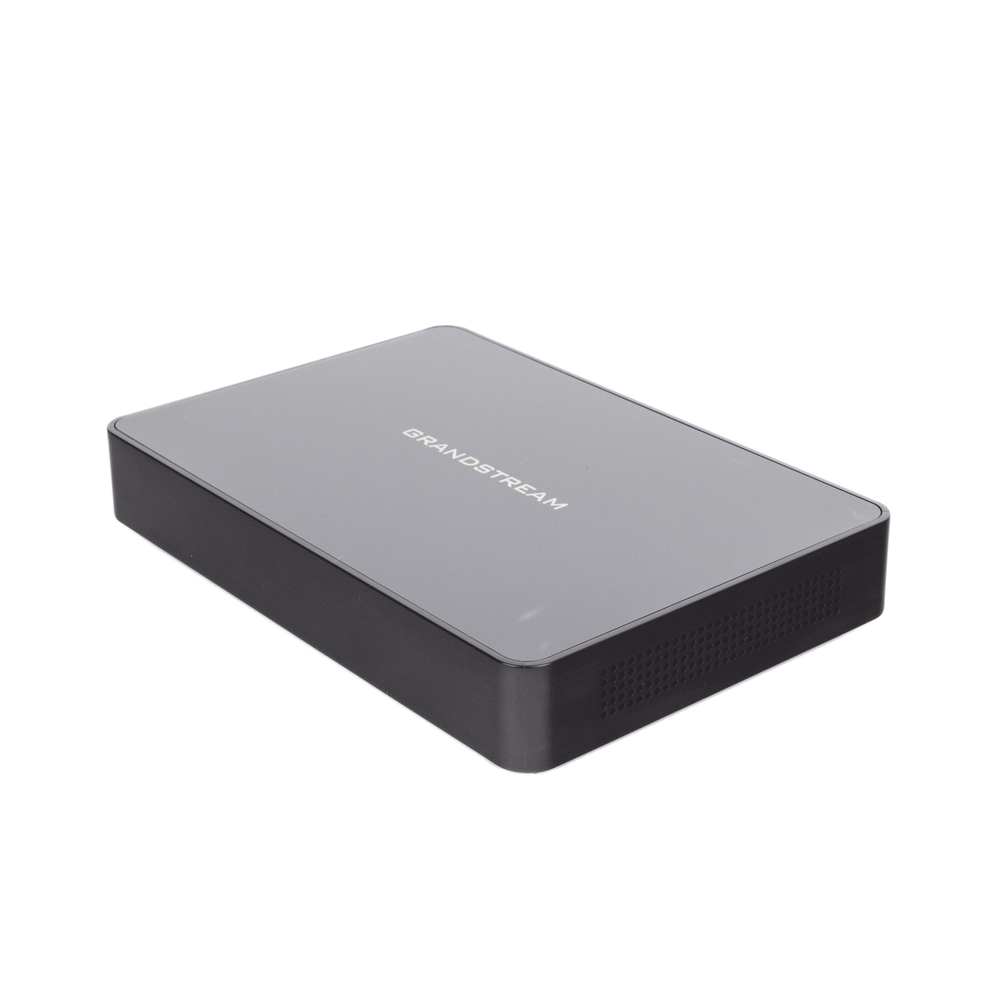

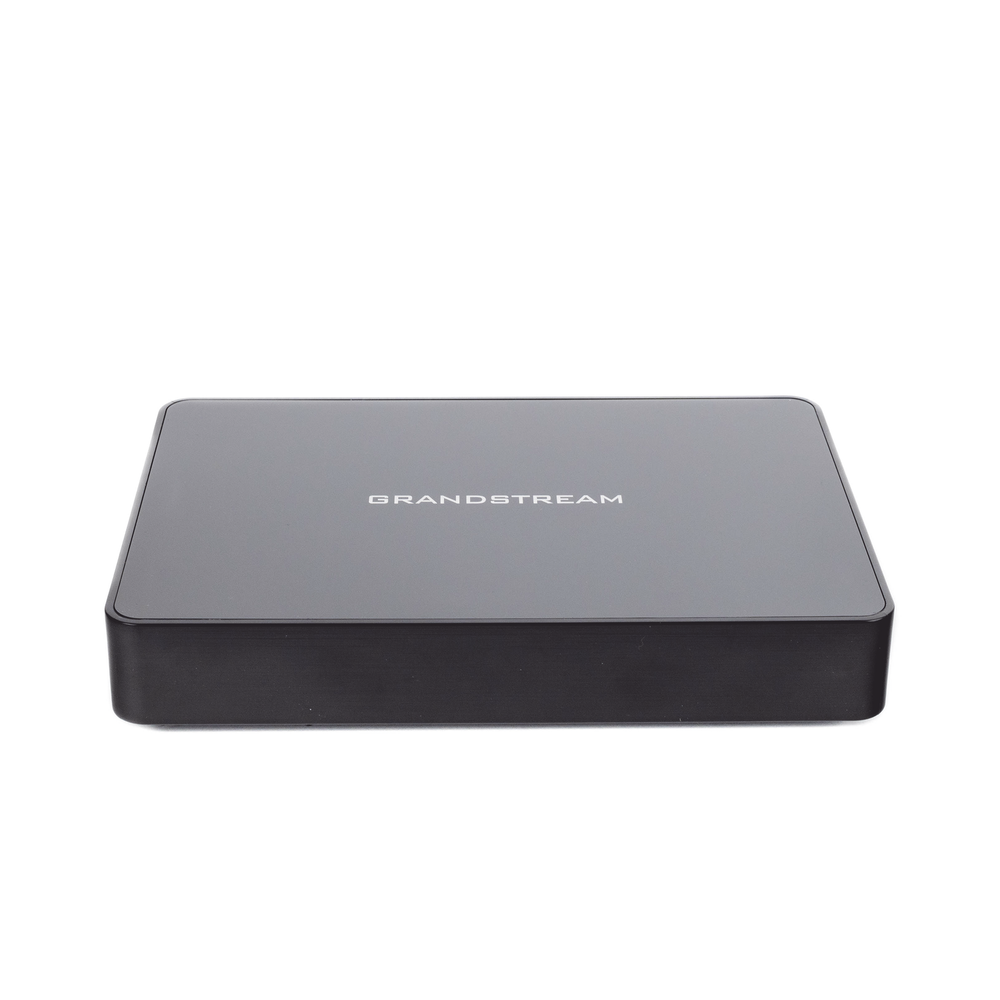

The GWN7000 is a powerful multi-WAN Gigabit VPN router for businesses. Ideal for large enterprises, small to medium-sized businesses, retail stores, schools, hotels, and hospitals, the GWN7000 supports complete Wi-Fi and VPN solutions that can be shared across one or many physical locations. It offers high-performance routing and switching power and a hardware-accelerated VPN client/server for secure inter-office connectivity. To maximize network reliability, the GWN7000 supports traffic load balancing and failover.
The GWN7000 includes an integrated controller and automated provisioning master that can configure and manage up to 300+ GWN Series Wi-Fi Access Points on the network. It can be easily operated via the product's intuitive, browser-based web user interface, which also provides a central dashboard for monitoring and controlling the entire network.

Specs

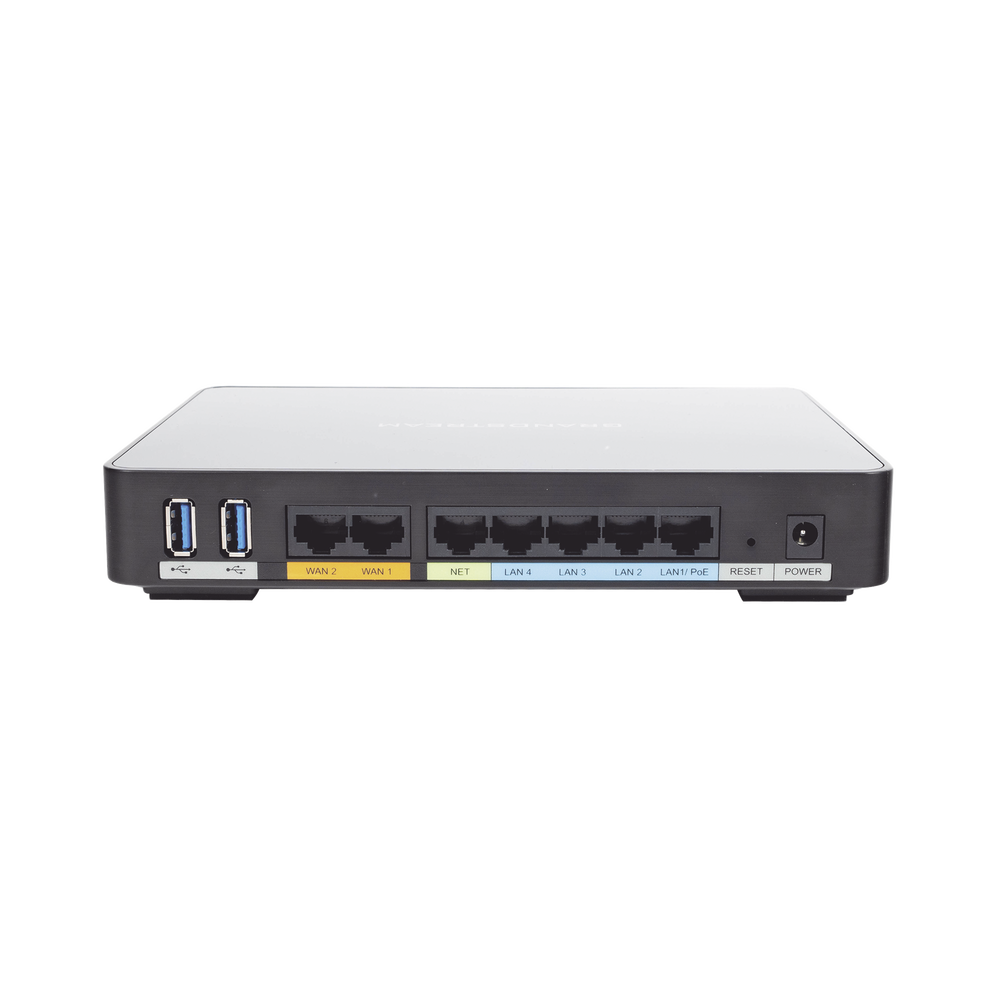

Network Interfaces

• 1 port configurable as LAN, WAN or VoIP 10/100/1000 Mbps with automatic detection
• 4 x 10/100/1000 Mbps auto-sensing LAN ports

WAN

• DHCP
• Static IP
• PPPoE
• Load balancing and failover
• Rule-based routing

LAN

• DHCP Server
• DNS Cache
• Multiple zones
• VLAN

Routing Performance

• Up to 1 million packets per second with a packet size of 64 bytes

USB

• 3G/4G/LTE as WAN (pending)
• Printer sharing
• File sharing

Auxiliary Ports

• 2 USB 3.0 ports, 1 reset hole

Mounting

• Indoor wall mount, desktop

LED

• 8 green LEDs for device tracking and status indication

Network Protocols

• IPv4, IPv6, 802.1Q, 802.1p

QoS

• VLAN, TOS, supports multiple traffic classes, filtering by port, IP address, DSCP and policing

Firewall

• NAT, DMZ, Port Forwarding, SPI, UPnP

VPN

• Protocols: PPTP, L2TP/IPSec, OpenVPN
• Client, Server or pass through

Automatic Provisioning Capacity

• Integrated provisioning master to control up to 300+ GWN Series WiFi Access Points

Management

• Web, CLI

Energy

• 802.3at PoE
• Power supply included: 12V/2A
• Maximum power consumption: 16W

Atmosphere

• Operating: 0°C to 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% non-condensing

Physical Specifications

• Unit Dimensions: 200 x 136 x 37mm; Unit Weight: 570g
• Whole Package Dimensions: 324 x 163.5 x 54mm; Whole Package Weight: 930g

Package Contents

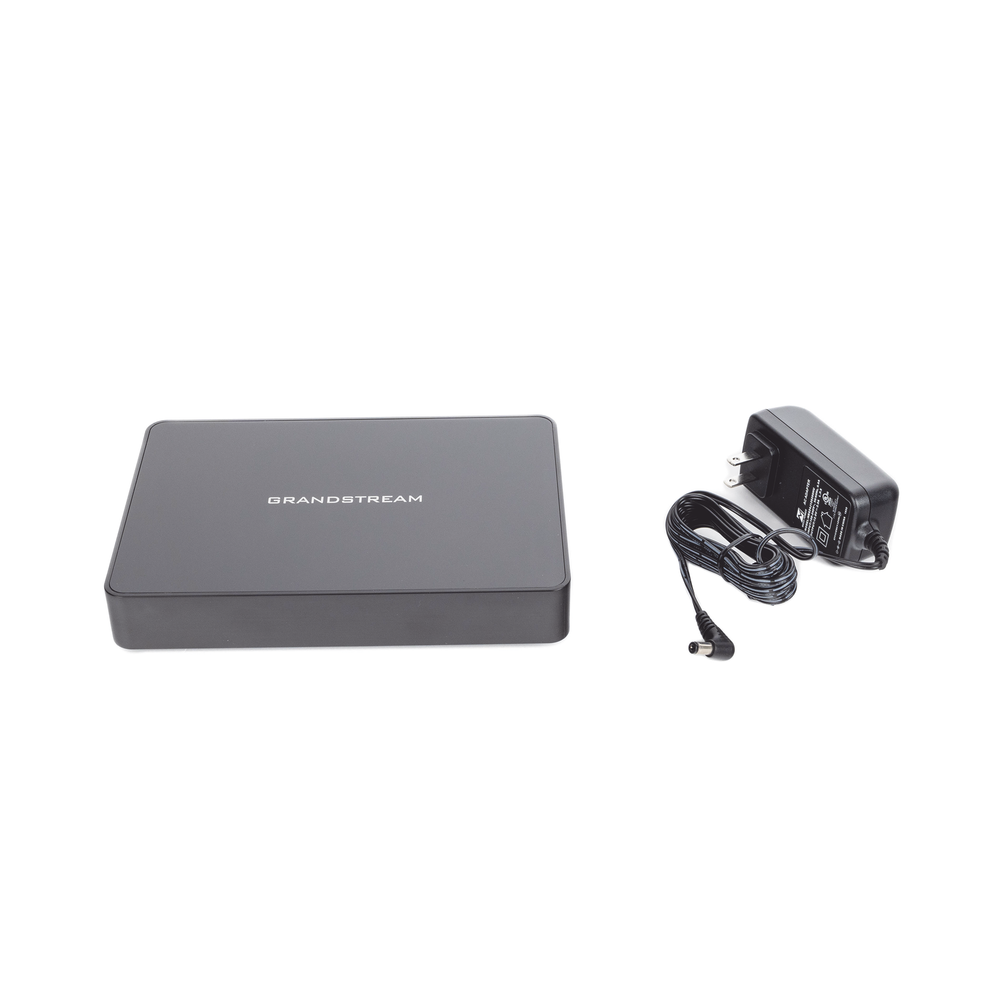

• GWN7000 Business Router
• 12V/2A Power Adapter
• Quick Installation Guide
• General Public License Guide

Accordance

• FCC, CE, RCM, IC

*1 year warranty.
